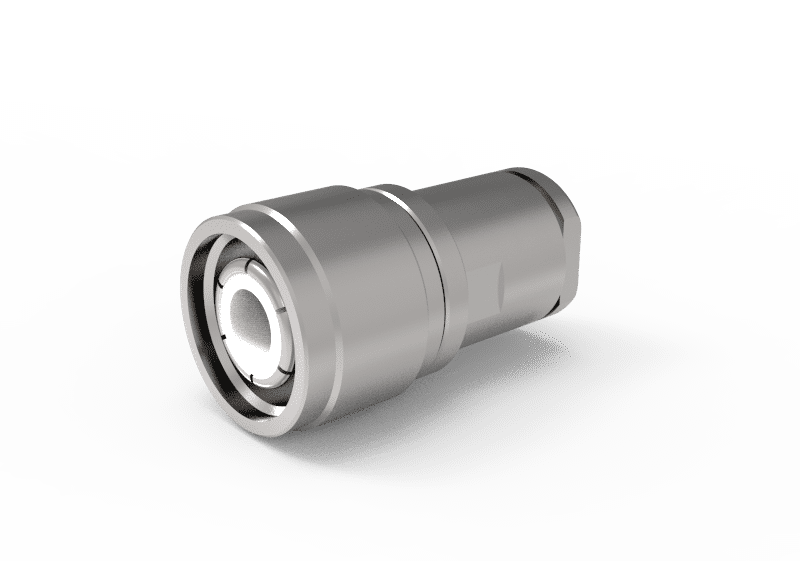

PLUG-HN50 Accessories - Coaxial Feedthroughs Accessories - Coaxial Feedthroughs
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type HN 50 Ohm |
|---|---|
| Bakeout temperature | 329 °F |
| Max. bakeout temperature | 165 °C |
| Wire termination | Clamp |
| Strain relief | Yes |
| Contacts included | Yes |
| Contact coating | Silver-plated |
| Article no. | 100533 |
| Number of contacts | 1 |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 7 GHz |
| Frequency | 7 GHz |
| Material housing/weld adapter | Copper alloy |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -65 °C |
| Min. operating temperature | -85 °F |
| Max. operating temperature | 165 °C |
| Max. operating temperature | 329 °F |
| Outer diameter | 24 mm |
| Outer diameter | 0.945 ″ |
| Diameter | 19 mm |
| Diameter | 0.748 ″ |
| Length | 44 mm |
| Length | 1.732 ″ |
