Pfeiffer Centering Ring KF-10 Vacuum Fittings, ISO-KF Flange Size NW-10, PTFE & Viton O-Ring. PN: 132ZRG010.
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Pfeiffer Part Number 132ZRG010.

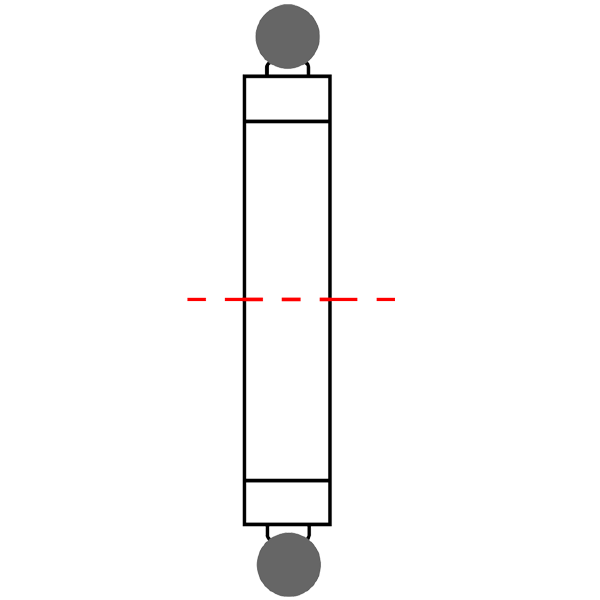

These Pfeiffer KF10 centering rings have a PTFE (teflon) ring and Viton (FKM) O ring seal. Maximum bakeout temperature is 200 °C (limited by the the o-ring).

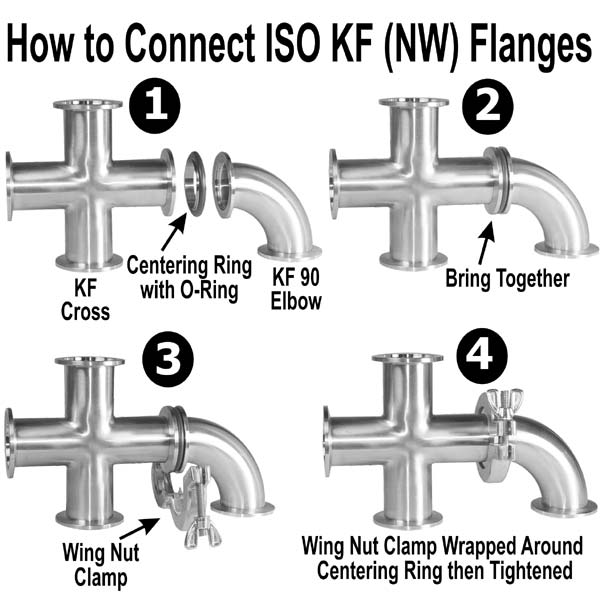

KF-10 Centering Ring vacuum fittings follow ISO-KF standards and have a flange size of NW-10. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant Stainless Steel with Viton® O-Ring. Viton® is well known for its excellent resistance to heat (400°F/200°C) and to aggressive fuels and chemicals. Viton® is a registered trademark of DuPont Performance Elastomers.
KF-10 Centering Ring vacuum fittings follow ISO-KF standards and have a flange size of NW-10. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant Stainless Steel with Viton® O-Ring. Viton® is well known for its excellent resistance to heat (400°F/200°C) and to aggressive fuels and chemicals. Viton® is a registered trademark of DuPont Performance Elastomers.

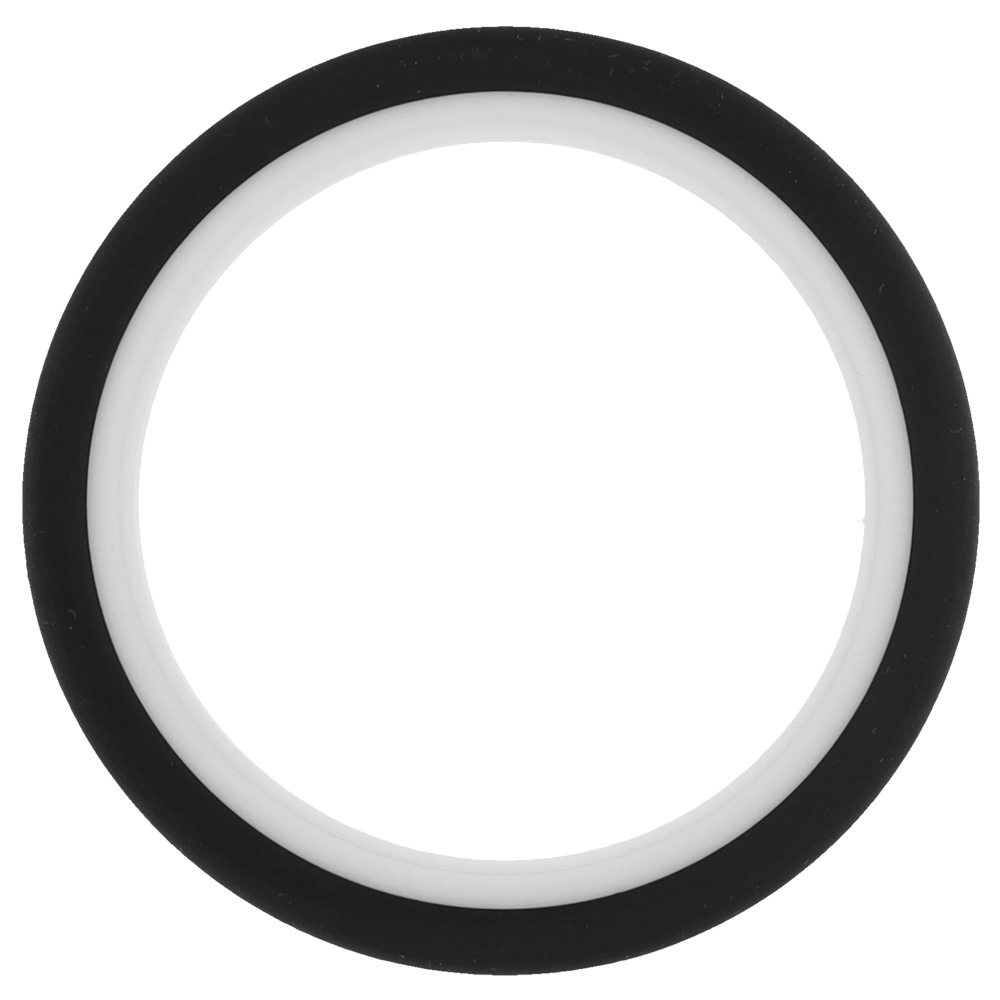

KF-10 PTFE Centering Ring with Viton® O-Ring
ISO-KF Flange Size: NW-10
