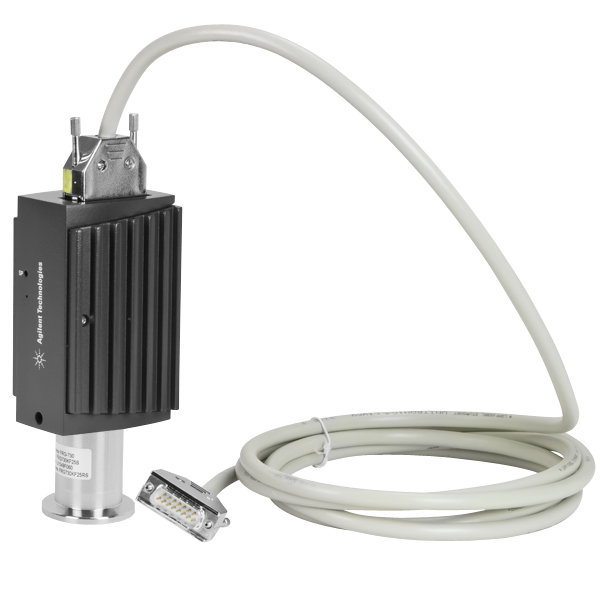

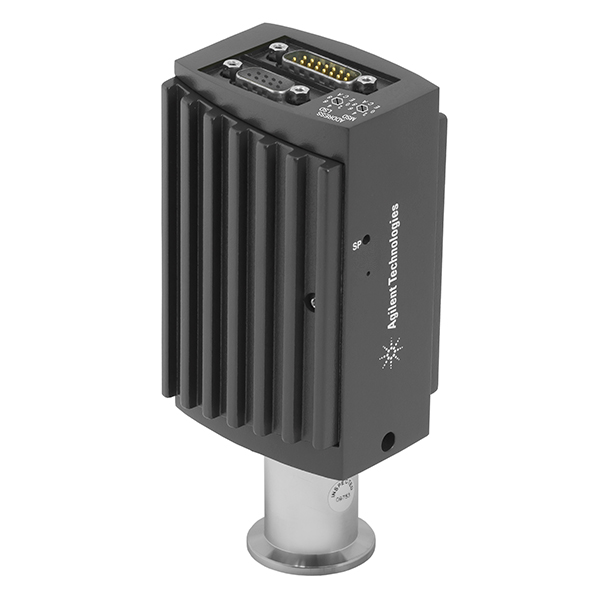

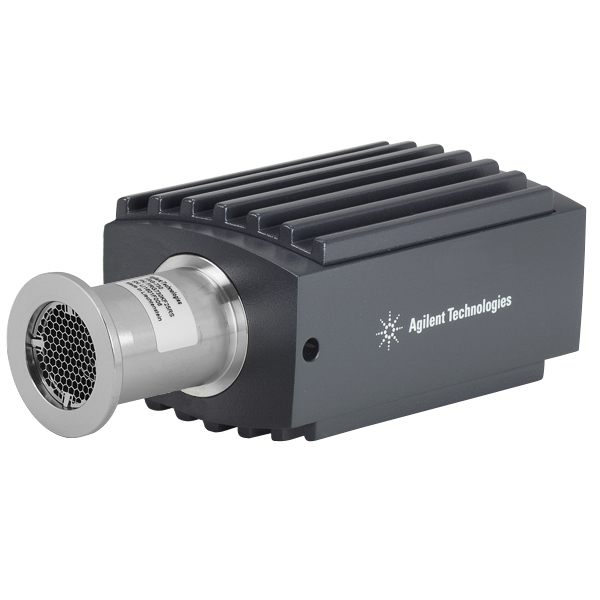

Agilent Varian FRG-720 KF25 Pirani, Bayard Alpert Combo Gauge, Profibus, w/set pts. PN FRG720KF25SP
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
and Set Points. Hot Cathode Ion, Pressure Range 760 to 3.8 X 10-10 Torr, KF25, Agilent Varian PN FRG720KF25SP.
This Agilent Varian Gauge is a Pirani and Bayard Alpert combination gauge, hot cathode ionization design. It contains a long life yttrium oxide coated iridium single filament with Profibus Connector and Set Points. The gauge can measure pressure from 3.8 X 10-10 Torr to atmosphere. Over the whole measuring range, the gauge has a continuous
characteristic curve and its measuring signal is output as logarithm
of the pressure.
The gauge functions with a Bayard-Alpert hot cathode ionization
measurement system (for < 2.0×10-2 Torr) and a Pirani measurement
system (for >5.5×10-3 Torr). In the overlapping pressure
range of 2.0×10-2 to 5.5×10-3 Torr, a mixed signal of the
two measurement systems is output. The hot cathode is
switched on by the Pirani measurement system only below the
switching threshold of 2.4×10-2 Torr (to prevent filament burnout).
It is switched off when the pressure exceeds 3.2×10-2 Torr.
This Profibus gauge has a fieldbus interface that conforms to the Profibus DPV1 standard. Two adjustable switching functions are integrated in the gauges. The corresponding relay contacts are available at the sensor cable connector. The basic sensor and sensor electronics of the Profibus gauge are the same as in the standard FRG-720.They have a KF-25 vacuum flange fitting. This is the Profibus FRG-720 gauge only. No LCD Display user replaceable sensors, signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number FRG720KF25SP. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.
Compatible with Agilent Varian Pressure Gauge Controllers:
This Profibus gauge has a fieldbus interface that conforms to the Profibus DPV1 standard. Two adjustable switching functions are integrated in the gauges. The corresponding relay contacts are available at the sensor cable connector. The basic sensor and sensor electronics of the Profibus gauge are the same as in the standard FRG-720.They have a KF-25 vacuum flange fitting. This is the Profibus FRG-720 gauge only. No LCD Display user replaceable sensors, signal cables and pressure controllers sold separately on this website. Agilent Varian Part Number FRG720KF25SP. A complete Operating Instruction Manual and Spec Sheet is available for download in .pdf format below under AVAILABLE DOWNLOADS.
Compatible with Agilent Varian Pressure Gauge Controllers:
- XGS-600 Multi-gauge Controller
- Active Gauge Controllers AGC-100, AGD-100
