NPT Aluminum Bulkhead Feedthrough Fitting 1/8" to 1/8" Female FNPT with Viton O-Ring, fit 1" Hole Through, up to 1" Thick
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

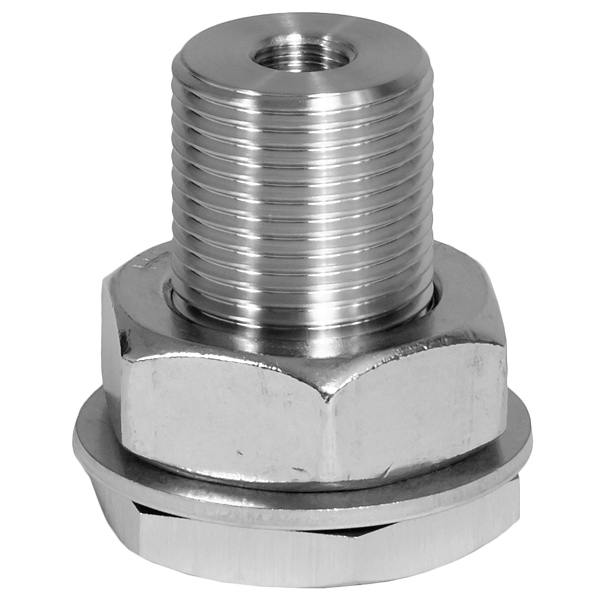

These high vacuum rated aluminum bulkhead feedthrough fittings have a Viton O-ring and have 1/8" FNPT female national pipe threads on each side. These fittings fit a 1" hole through and can be used on bulkheads up to 1" thick.
Aluminum 1" FNPT Bulkhead Feedthrough Fitting Data:
Aluminum 1" FNPT Bulkhead Feedthrough Fitting Data:
- Body Material: 6061-T6 Aluminum
- Seal: Viton O-Ring
- Ultimate Vacuum: 10-8 Torr (High Vacuum)

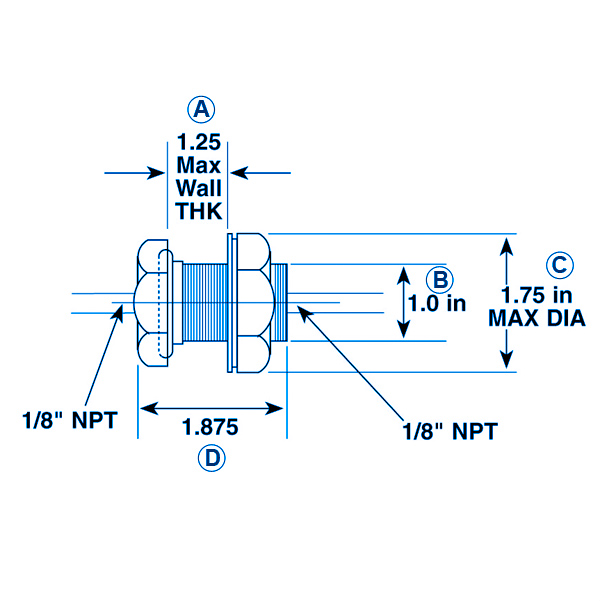

- Dimensions: A = 1.25" Max., B = 1.0", C = 1.75" Max., D = 1.875"
