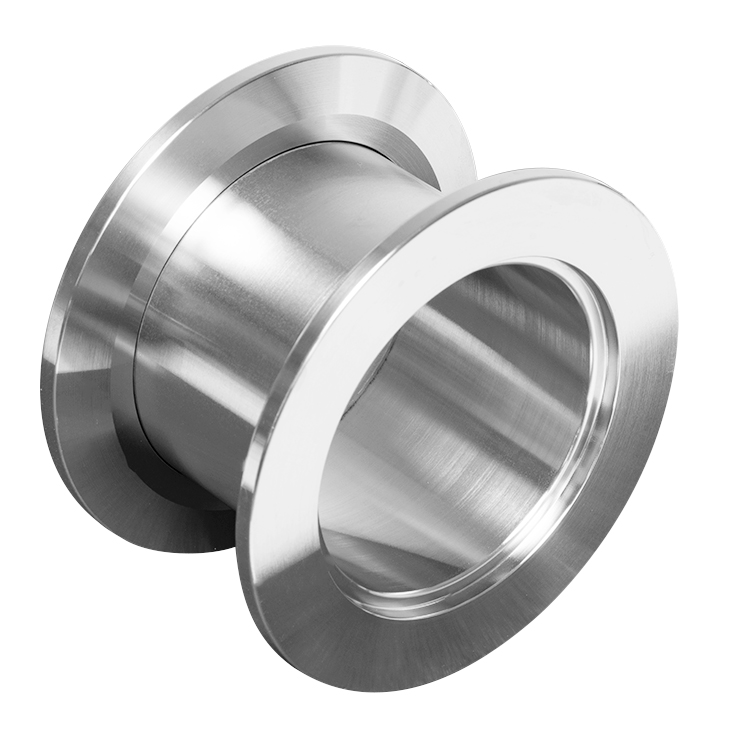

Nipple Full KF-50 Vacuum Fittings, ISO-KF Flange Size NW-50, Stainless Steel 1.7 in. Long.
KF-50 Nipple Full
ISO-KF Flange Size: NW-50

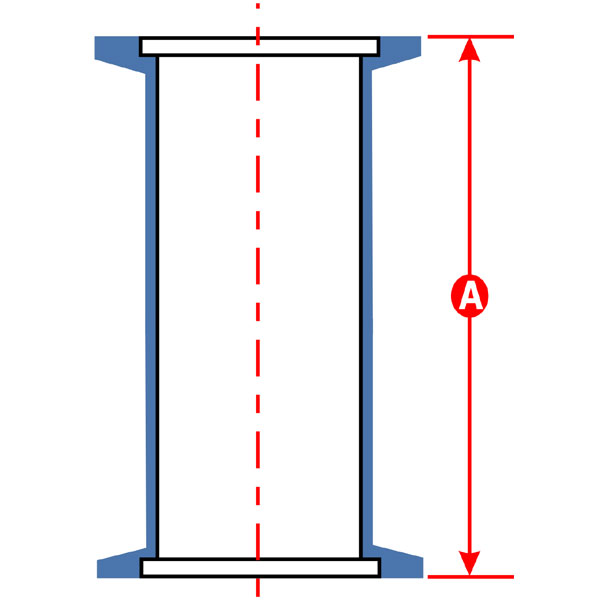

Common Dimensions: A = 1.7" (43mm)
These KF-50 full nipple vacuum fittings follow ISO-KF standards and have a flange size of NW-50. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of corrosive resistant stainless steel.
KF-50 Nipple Full
ISO-KF Flange Size: NW-50
Common Dimensions: A = 1.7" (43mm)
