NEW Varian FRG-700 Full Range GAUGE KIT For TPS-Compact System with CF 6.00 in. Inlet to CF 2.75 in.

Write a review

$4,182⁵⁷

On backorder

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents
Accessories

NEW Varian FRG-700 DIY Full Range Gauge Kit For TPS-Compact, MiniTask 81, AG Turbo Controllers, and the Ideal Vacuum iCart Dry System. Kit is for Conflat CF CFF 2.75 inch Inlet to Conflat CF CFF 6.00 inch fitting.

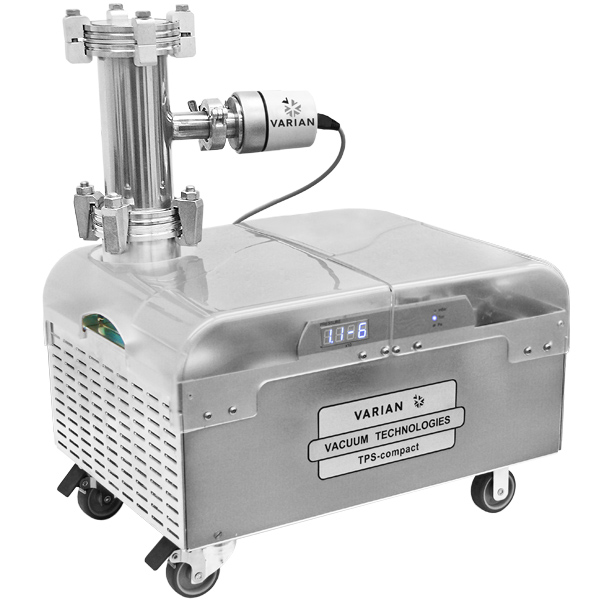

These Varian FRG-700 full range active pressure gauge kits are designed to work with the Varian Agilent TPS-Compact, MiniTask 81, AG Turbo Controllers, and the Ideal Vacuum iCart Dry System. The DIY FRG 700 full range gauge is a Pirani and Cold Cathode combination gauge design and can measure pressure from atmosphere to 7x10-9 Torr. The DIY full range gauge is designed to interface directly with all the systems above. The pressure data is displayed on board the systems control windows in Torr, Pascal, or mbar and can be obtained through serial communication and analog outputs. This is a GAUGE KIT ONLY, individual parts or systems sold separately. Gauge Kit includes all the parts listed below. A FRG700 Gauge Instruction Manual .pdf can be downloaded at AVAILABLE DOWNLOADS below.

Conflat CF CFF 2.75 inch Inlet to Conflat CF CFF 6.00 inch, Gauge Kit Includes:

(1)Varian Agilent FRG-700 Full Range Gauge fitting size Conflat CF CFF 2.75 inch
Part Number P103350

(1)10 ft. Signal Cable
Part Number P103596

(1)TEE Adapter CF Conflat 2.75 inch to 6.00 inch Stainless Steel
Part Number 3TR-400-150

(1)CF Conflat 6.00 inch Blank Stainless Steel
Part Number P102249

(1)CF Conflat 2.75 inch Copper Gaskets
Part Number P102278

(2)CF Conflat 6.00 inch Copper Gaskets
Part Number P102281

(6)Silver plated 12 point bolts with washers (1/4-28 x 1 1/4 inch) with (3) nutplates

(32)Silver plated 12 point bolts with washers (5/16-24 x 2 1/4 inch) with (16) nutplates

P6102249.sldprt (P6102249.sldprt, 448 Kb) [Download]

P6102249.step (P6102249.step, 195 Kb) [Download]

P6102278.sldprt (P6102278.sldprt, 300 Kb) [Download]

P6102278.step (P6102278.step, 36 Kb) [Download]

P6102281.sldprt (P6102281.sldprt, 302 Kb) [Download]

P6102281.step (P6102281.step, 36 Kb) [Download]

P6103789.sldprt (P6103789.sldprt, 1,047 Kb) [Download]

P6103789.step (P6103789.step, 777 Kb) [Download]

P6104378.sldprt (P6104378.sldprt, 4,239 Kb) [Download]

P6104378.step (P6104378.step, 1,035 Kb) [Download]

P6104381.sldprt (P6104381.sldprt, 5,430 Kb) [Download]

P6104381.step (P6104381.step, 2,730 Kb) [Download]
