NEW Varian FRG-700 Full Range GAUGE KIT For TPS-Compact Pumping System with ISO-63 Inlet to KF25

Write a review

$4,062⁵⁵

On backorder

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents
Accessories

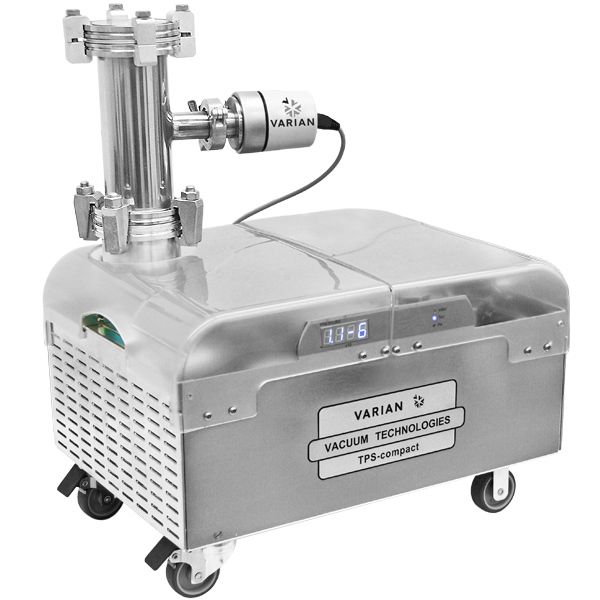

NEW Varian FRG-700 DIY Full Range Gauge Kit For TPS-Compact, MiniTask 81, AG Turbo Controllers, and the Ideal Vacuum iCart Dry System. Kit is for ISO-63 Inlet to KF25 gauge fitting.

These Varian FRG-700 full range active pressure gauge kits are designed to work with the Varian Agilent TPS-Compact, MiniTask 81, AG Turbo Controllers, and the Ideal Vacuum iCart Dry System. The DIY FRG 700 full range gauge is a Pirani and Cold Cathode combination gauge design and can measure pressure from atmosphere to 7x10-9 Torr. The DIY full range gauge is designed to interface directly with all the systems above. The pressure data is displayed on board the systems control windows in Torr, Pascal, or mbar and can be obtained through serial communication and analog outputs. This is a GAUGE KIT ONLY, individual parts or systems sold separately. Gauge Kit includes all the parts listed below. An FRG700 gauge Instruction Manual .pdf can be downloaded at AVAILABLE DOWNLOADS below.

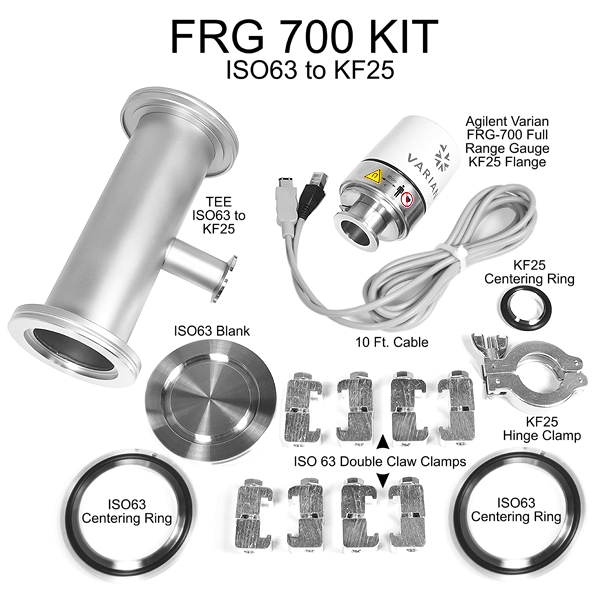

ISO63 Inlet to KF25 Gauge Kit Includes:

(1)Varian Agilent FRG-700 Full Range Gauge fitting size KF25
Part Number P103349

(1)10 ft. Signal Cable
Part Number P103596

(2)ISO 63 Centering Rings, Stainless Steel, Viton Rubber
Part Number P101761

(1)TEE Adapter ISO 63 to KF25 Stainless Steel
Part Number P103579

(1)ISO 63 Blank Stainless Steel
Part Number P101681

(8)ISO 63 Double Claw Clamps Aluminum
Part Number P101771

(1) KF25 Centering Ring, Stainless Steel, Viton Rubber
Part Number P101243

(1) KF25 Hinge Clamp Aluminum
Part Number P101199

P6101243.sldprt (P6101243.sldprt, 420 Kb) [Download]

P6101243.step (P6101243.step, 48 Kb) [Download]

P6101681.sldprt (P6101681.sldprt, 469 Kb) [Download]

P6101681.step (P6101681.step, 46 Kb) [Download]

P6101766.sldprt (P6101766.sldprt, 224 Kb) [Download]

P6101766.step (P6101766.step, 36 Kb) [Download]

P6101771.sldprt (P6101771.sldprt, 1,702 Kb) [Download]

P6101771.step (P6101771.step, 2,257 Kb) [Download]

P6103579.sldprt (P6103579.sldprt, 439 Kb) [Download]

P6103579.step (P6103579.step, 275 Kb) [Download]

P6106715.sldprt (P6106715.sldprt, 755 Kb) [Download]

P6106715.step (P6106715.step, 1,117 Kb) [Download]
