NEW Varian Agilent Dual Analog Input Card for the XGS-600 Multi-Gauge Controller, Agilent Varian Part Number R3487301.
PCB Board/Card Installation: Procedures for installing add on cards :

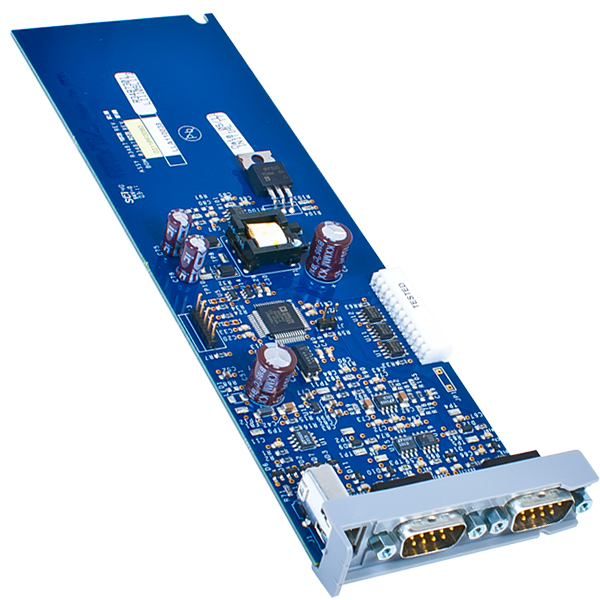

This is a Dual Analog Input Card for the XGS-600 Multi-Gauge Controller. Depending on the XGS-600 Controller configuration it may or may not have this Dual Analog Input Card. With 1 Analog Input Card the XGS-600 Controller can read 2 active gauges (2 active gauges per card). Up to 6 Dual Analog Input Cards can be installed in the XGS-600 Controller, for a total of 12 active gauge inputs. Other cards can also be used along side this Dual Analog Input Card. Agilent Varian Part Number R3487301.
Compatible with the following Varian Agilent active gauges:
- CT-100, PVG-500, Rough Vacuum Atm to 10-3
- CDG-500, PCG-750, High Vacuum 10-3 to 10-9
- FRG-700, FRG-720/730, High Vacuum 10-3 to 10-9

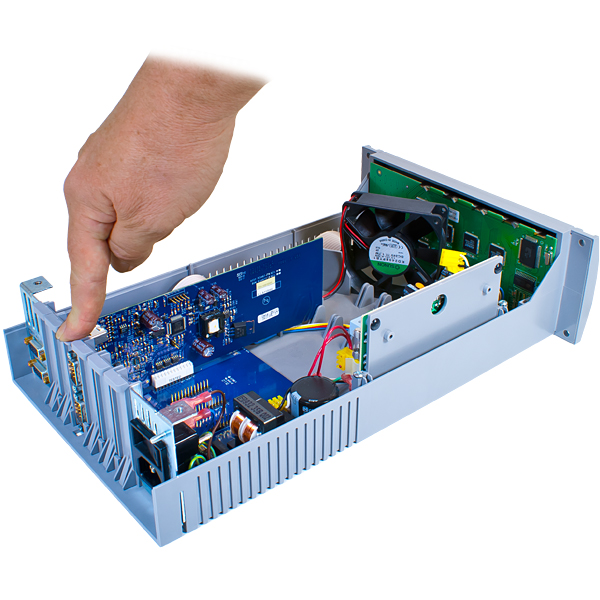

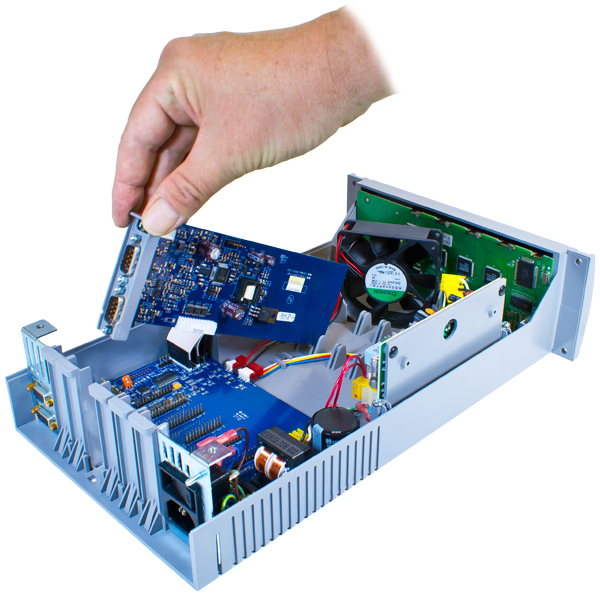

PCB Board/Card Installation: Procedures for installing add on cards :
- Slots are numbered left to right as viewed from the front of the XGS-600.
- Option slots 1-4 are long high profile slots and can accomodate any card/board. HFIG Boards are long high profile cards and can only be installed in slots 1-4.
- Option Slots 5-6 are short, low profile slots and can accomodate only convection or IMG Boards with the following restrictions. An IMG Board may not be installed in slot 5 if any other board is installed in slot 4. An IMG Board may not be installed in slot 6 if any other board is installed in slot 5.
