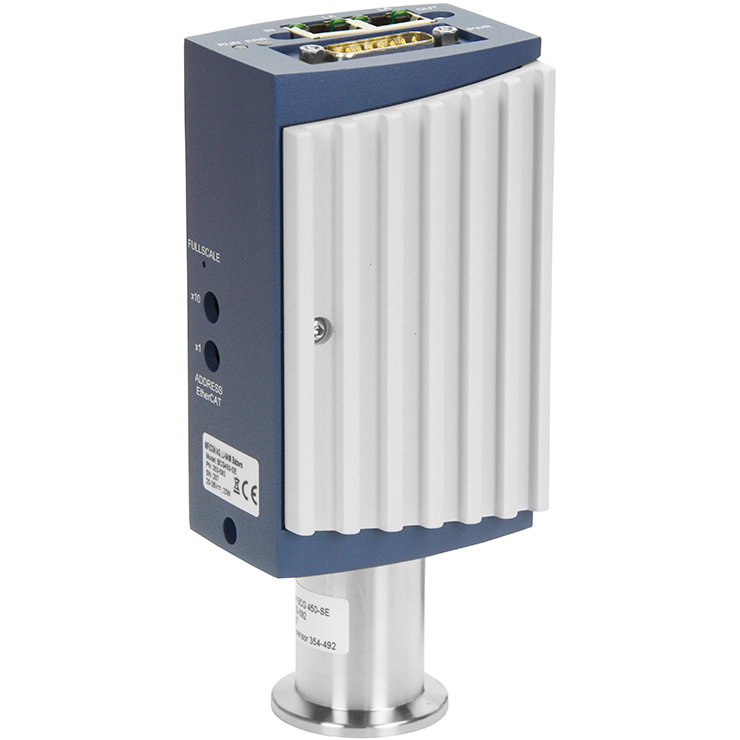

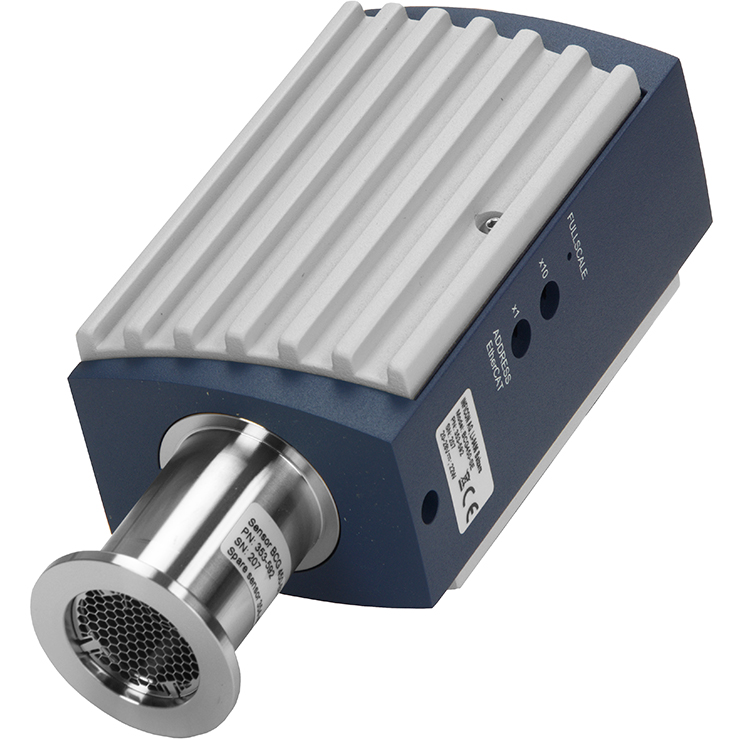

This is a INFICON Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE BCG450-SE. The INFICON BCG450-SE, combines the advantages of three different
technologies in a single, compact, economical package. The BCG450-SE is designed to take the place of three sensors (hot ion, convection enhanced Pirani and vacuum switch), thus reducing
cost and valuable tool space.This Gauge has a D Sub 15 pin Connector and a 0.774 - 10V Measurement Range with 2 set points and EtherCAT Interface. This Gauge can measure
process and base pressure from 5×10-10 to 1500 mbar (3.75×10-10 to
1125 Torr).
This Inficon BCG 450-SE Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector and EtherCAT Interface. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.
For complete specifications of the BCG 450-SE UHV Gauge see the Brochure .pdf and for complete Operation Instructions see the Instruction Manual .pdf, both at the side of this ad in Downloads.
This Inficon BCG 450-SE Pirani Capacitance Diaphragm Ultra High Vacuum TRIPLE GAUGE can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector and EtherCAT Interface. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.
For complete specifications of the BCG 450-SE UHV Gauge see the Brochure .pdf and for complete Operation Instructions see the Instruction Manual .pdf, both at the side of this ad in Downloads.
