NEW Edwards EMF20 Oil Mist Filter, KF25 Ports, for RV12, E1M18, E2M18 Vacuum Pumps, A462-29-000

Write a review

$1,146⁶⁴

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents
Accessories

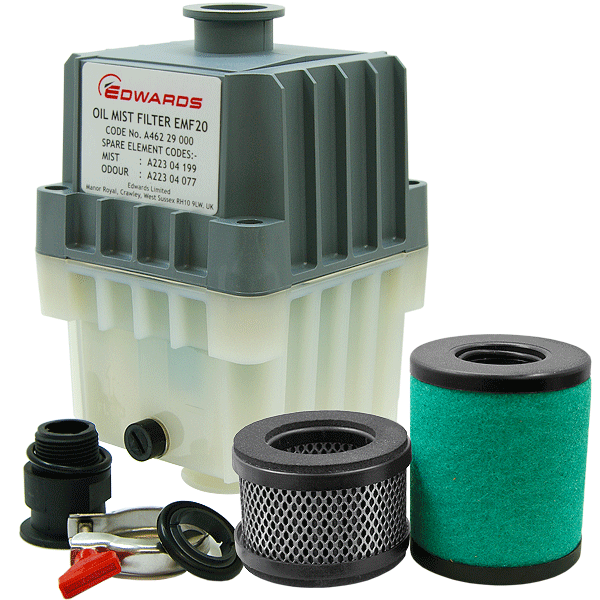

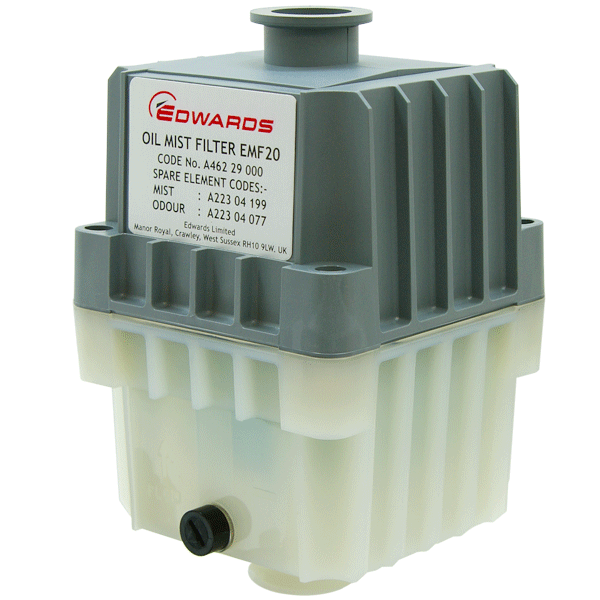

NEW Edwards EMF20 (EMF-20) Oil Mist Exhaust Filter, KF25 Ports, Designed for Edwards for RV12, E1M18, E2M18 Vacuum Pumps (Edwards Part Number A462-29-000)

This EMF Outlet Oil Mist Filter is suitable for all Edwards Rotary Vane pumps up to E2M18. This EMF20 (EMF-20) exhaust filter assembly is supplied with NW25 clamp, centering ring, O-Ring, NW25 to 3/4 BSP adapter, 1 oil element filter and 1 odor element. The benefits of the oil mist filter includes: protection from oil mist emissions as required by COSHH and health and safety regulations. If the oil element becomes blocked, an integral pressure relief valve opens. This filter is very efficient at 99.999% DOP test and is also azide proof. The white bottom half of the body is semi-transparent, allowing the oil level to be monitored. Replacement oil elements and odor elements are available on this website. For complete specifications download instruction manual (see below avaliable below).

Edwards EMF20 (EMF-20) Oil Mist Filter Specifications:
Fits Pump Models: RV12, E1M18, E2M18
Inlet & Exhaust Flanges: ISO KF25 (NW25)
Dimensions: Height 7.5 x Width 5 inches
Weight: 1.5 lb
Material: Durable Plastic Body
Odor Filter Element: Activated Carbon
Replacement Odor Filter Part Number: A223-04-077
Oil Filter Element: Epoxy Impregnated Glass Fiber
Replacement Oil Filter Part Number: A223-04-199
Edwards EMF20 (EMF-20) Part Number: A462-29-000

EdwardsEMF_Filters.pdf (EdwardsEMF_Filters.pdf, 579 Kb) [Download]

Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf (Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf, 3,624 Kb) [Download]
