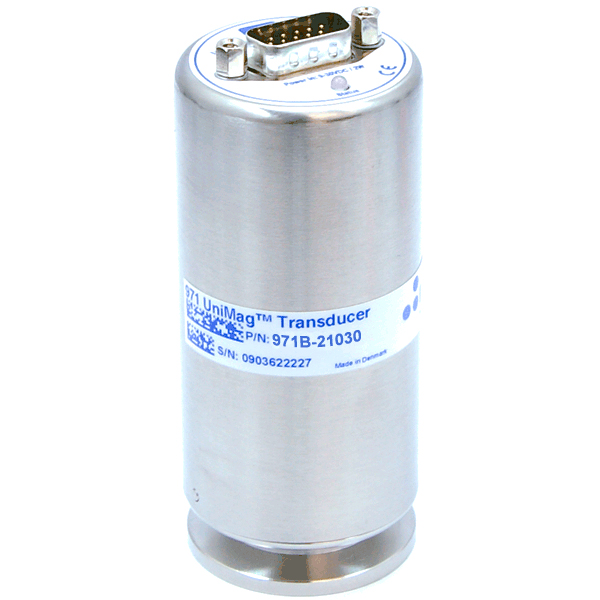

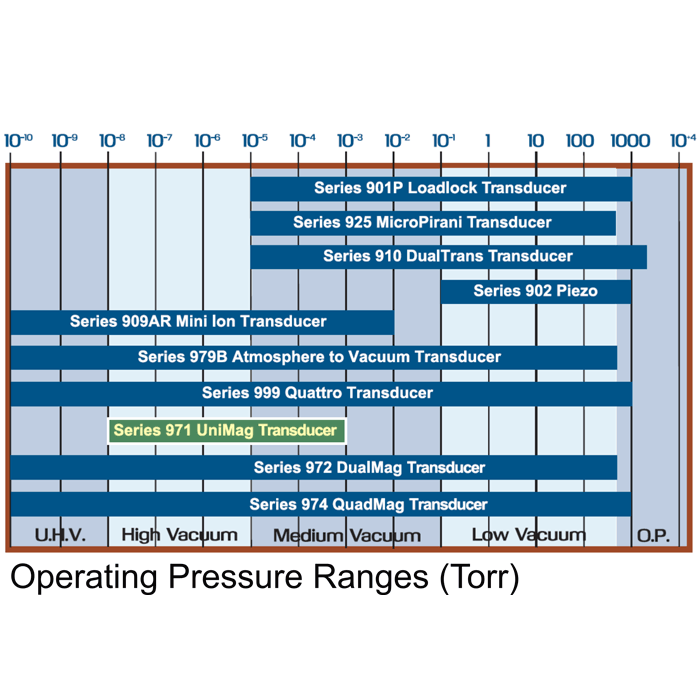

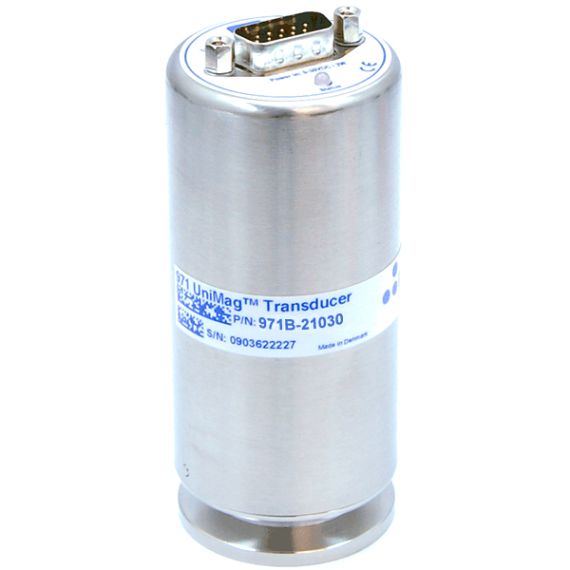

The 971 UniMag transducer offers a measurement range from 1x10-8Torr to 5x10-3Torr and is based on cold cathode inverted magnetron sensor technology. The 971 is a cost effective solution for base pressure measurement and
control. The Series 971 UniMag has RS232 or RS485 digital communication interface for setup of transducer parameters and to
provide real time pressure measurement.
The 971 UniMag transducers also has an analog pressure output
of 0.5VDC/decade that can be interfaced to external
analog equipment for pressure readout or control. Other
analog outputs and curves can be selected via the digital
user interface.The Series 971 UniMag has up to three mechanical relays which can be used for process control, examples are interlocking valves or pumps. The 971 UniMag Transducer has a user changeable cold cathode anode module that offers
easy serviceability without disassembling of transducer
electronics. Customers requiring both a power supply and display can use the 971 UniMag with the PDR900 Series Controller sold on this website. For complete specs and operation information See AVAILABLE DOWNLOADS below.
Options, (PN) Part Number and Pricing : NEW MKS HPS® Series 971 UniMagTransducer
NW25 KF, RS-232, SUBD 15pinHD male-no relay
PN 971-21020, 2009 Price $710
2 3/4" CF, RS-232, SUBD 15pinHD male-no relay
PN 971-71020, 2009 Price $815
NW40 KF, RS-232, SUBD 15pinHD male-no relay
PN 971-91020, 2009 Price $755
NW25 KF, RS-485, SUBD 15pinHD male-no relay
PN 971-22020, 2009 Price $745
2 3/4" CF, RS-485, SUBD 15pinHD male-no relay
PN 971-72020, 2009 Price $815
NW40 KF, RS-485, SUBD 15pinHD male-no relay
PN 971-92020, 2009 Price $755
NW25 KF, RS-232, SUBD 15pinHD male-3 relays
PN 971-21030, 2009 Price $785
2 3/4" CF, RS-232, SUBD 15pinHD male-3 relays
PN 971-71030, 2009 Price $855
NW40 KF, RS-232, SUBD 15pinHD male-3 relays
PN 971-91030, 2009 Price $795
NW25 KF, RS-485, SUBD 15pinHD male-3 relays
PN 971-22030, 2009 Price $795
2 3/4" CF, RS-485, SUBD 15pinHD male-3 relays
PN 971-72030, 2009 Price $855
NW40 KF, RS-485, SUBD 15pinHD male-3 relays
PN 971-92030, 2009 Price $895
