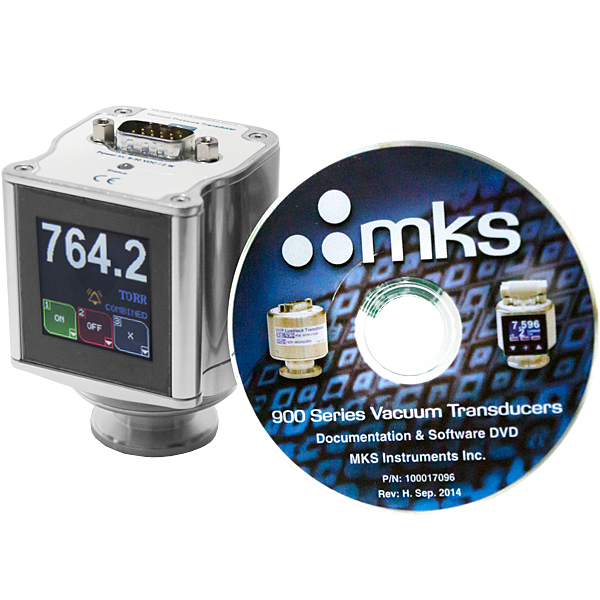

MKS HPS 925 MicroPirani Transducer NW/KF 16, RS-232, 10-5 to Atmosphere with Display. PN: 925-11034
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

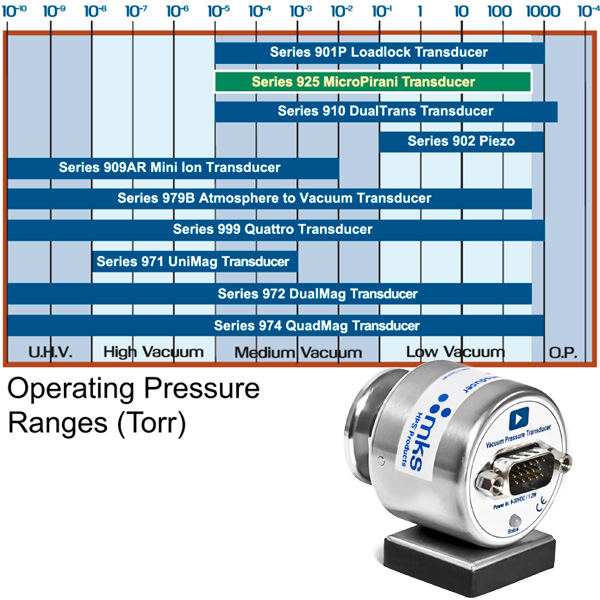

The MKS 925 features an increased pressure measurement range from 1x10-5 Torr to atmosphere, two decades below a standard Pirani sensor. The Series 925 MicroPirani™ transducer is a thermal conductivity gauge and incorporates a MEMS MicroPirani™ sensor technology in a compact package. The 925 has three optional set point relays. With its extended range, the 925 may replace multiple transducers, in certain applications. This has a KF16 flange RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, and 3 relays.
The integrated touch-screen display is user configurable; the user can change pressure units, orientation and has access to set point parameters as well as gas type. The display also indicates the status of the available set point relays. Displayed reading can be seen from >5 meters away on the high contrast display. For Complete Specs and Operation Information See AVAILABLE DOWNLOADS Below.
The integrated touch-screen display is user configurable; the user can change pressure units, orientation and has access to set point parameters as well as gas type. The display also indicates the status of the available set point relays. Displayed reading can be seen from >5 meters away on the high contrast display. For Complete Specs and Operation Information See AVAILABLE DOWNLOADS Below.
For Complete Specs and Operation Information See AVAILABLE DOWNLOADS Below.
Specifications and prices are subject to change without notice. HPS® and MicroPirani™ are a registered Trademarks MKS Instruments.
Options, and (PN) Part Number: NEW MKS HPS® Series 925 MicroPirani™ Transducer
KF16, RS232/Analog, 0-9VDC 1V/Decade, 9 pin sub-D male, 1 relay set point (925C compatible)
PN 925-11010, 2009
KF16, RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relay
PN 925-11020, 2009
KF16, RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-11030, 2009
KF16, RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-12020, 2009
KF16, RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-12030, 2009
KF25, RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-21020, 2009
KF25, RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-21030, 2009
KF25, RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-22020, 2009
KF25, RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-22030, 2009
1/8 inch NPT ,RS232/Analog, 0-9VDC 1V/Decade, 9 pin sub-D male, 1 relay set point (925C compatible)
PN 925-31010, 2009
1/8 inch NPT ,RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relay
PN 925-31020, 2009
1/8 inch NPT ,RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-31030, 2009
1/8 inch NPT ,RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-32020, 2009
1/8 inch NPT ,RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-32030, 2009
VCR4 ,RS232/Analog, 0-9VDC 1V/Decade, 9 pin sub-D male, 1 relay set point (925C) compatible
PN 925-41010, 2009
VCR4 ,RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relay
PN 925-41020, 2009
VCR4 ,RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-41030, 2009
VCR4 ,RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-42020, 2009
VCR4 ,RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-42030, 2009
VCR8 ,RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-51020, 2009
VCR8 ,RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-51030, 2009
VCR8 ,RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, no relays
PN 925-52020, 2009
VCR8 ,RS485/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, 3 relays
PN 925-52030, 2009
