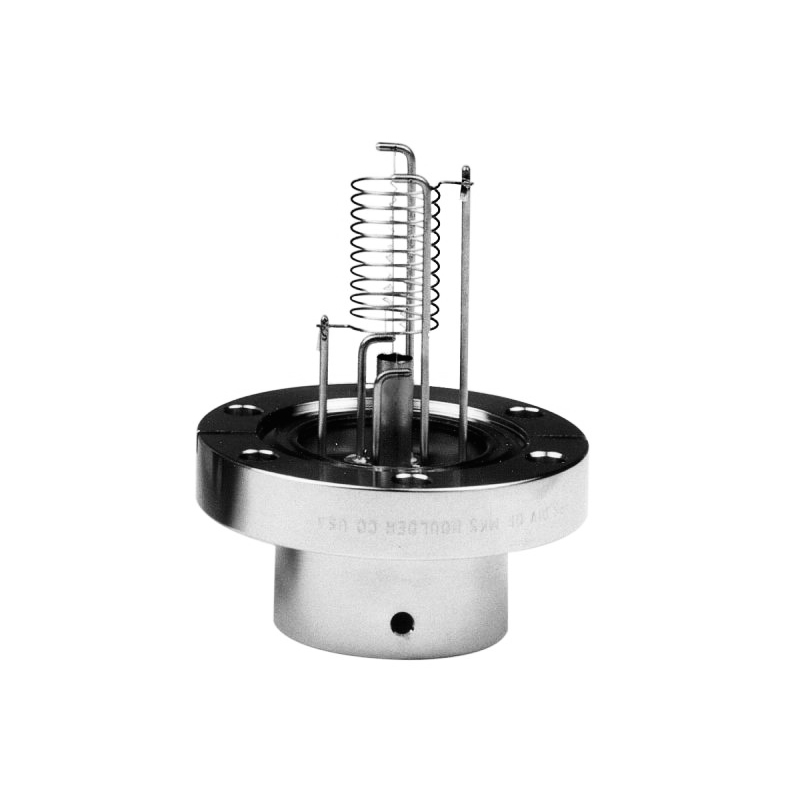

MKS Hot Cathode Vacuum Sensor Nude Tube Yttria-Coated Iridium Filament, CF-2.75 in Flange Fitting. PN: 100006842
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
MKS Part Number: 100006842.
The MKS Nude Tube Vacuum Sensor features a Yttria-coated Iridium filament for a 1x10-2 to 1x10-11 Torr vacuum measurement range and a 2.75 in. CF flange fitting. This Bayard-Alpert style ionization vacuum sensor, which uses a fine wire collector located in the center of a grid. Because of its small area, few x-rays hit the collector, and a vacuum gauge can measure pressures to very low levels. Because the sensing portion of the tube is located within the vacuum system and experiences the system true pressure, nude tubes give a representative pressure measurement and respond more quickly than a glass envelope sensor to pressure changes. Signal cables for this cold cathode vacuum sensor are available on this website.
