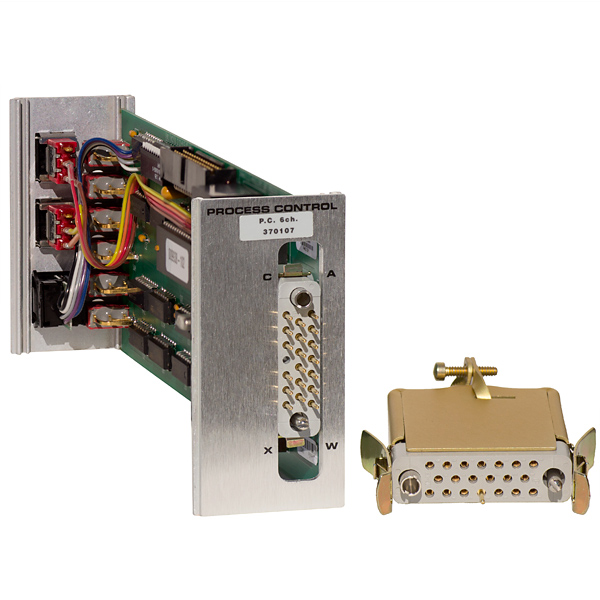

MKS Granville Phillips Process Control Module, 6 set points for GP 370 Vacuum Gauge Controller.
MKS Granville Phillips Part Number: 370107

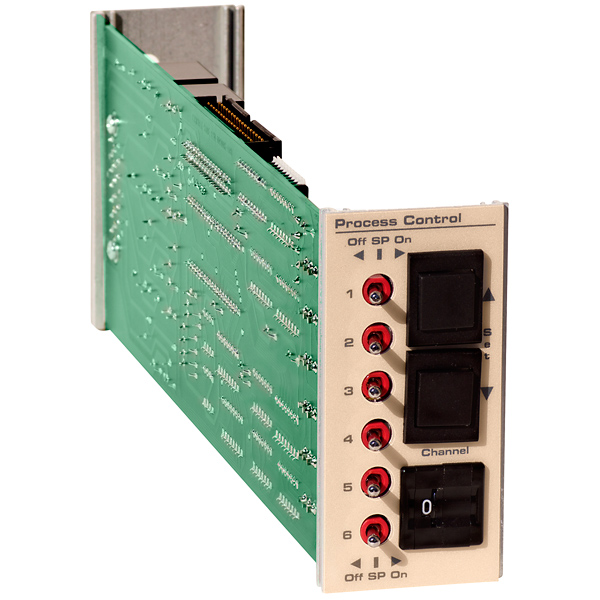

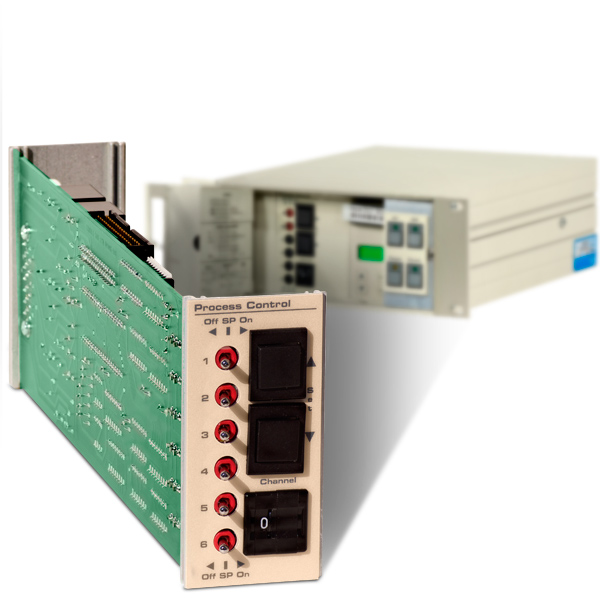

This is a MKS Granville Phillips Process Control Module and provides the 370 Vacuum Gauge Controller with single-pole, double-throw relays that may be controlled either by (6 digital setpoints) or by the built-in manual override switches. This Process Control Module has 6 user selectable channels. The first 2 channels are assigned to the ion gauges. If present, channels 3 and 4 are assigned to CGA or TCA; and 5 and 6 to CGB, TCB, or CMB.

Switches are provided to assign channel 1 to IG1, IG2, or both; and likewise for channel 2. All six channels have selectable polarity for activation above or below the setpoint. For Process Control Card (module) installation procedures see pages 16-27 of instruction manual.pdf. For specs and procedures for use, see Chapter 5 of the instruction manual. This is the Process Control Card Module (with 6 setpoints) ONLY, MKS Granville Phillips 370 Controller, Cables and Accessories sold separately on this website. The MKS Granville Phillips 370 vacuum gauge controller instruction manual in pdf format can be downloaded below.

Granville-Phillips_370_Manual.pdf (Granville-Phillips_370_Manual.pdf, 1,612 Kb) [Download]

MKS-GP-370-Gauge-Controller_Datasheet.pdf (MKS-GP-370-Gauge-Controller_Datasheet.pdf, 2,138 Kb) [Download]

MKS-Granvile-Phillips-Vacuum-Measurement-Products_Brochure.pdf (MKS-Granvile-Phillips-Vacuum-Measurement-Products_Brochure.pdf, 3,070 Kb) [Download]
