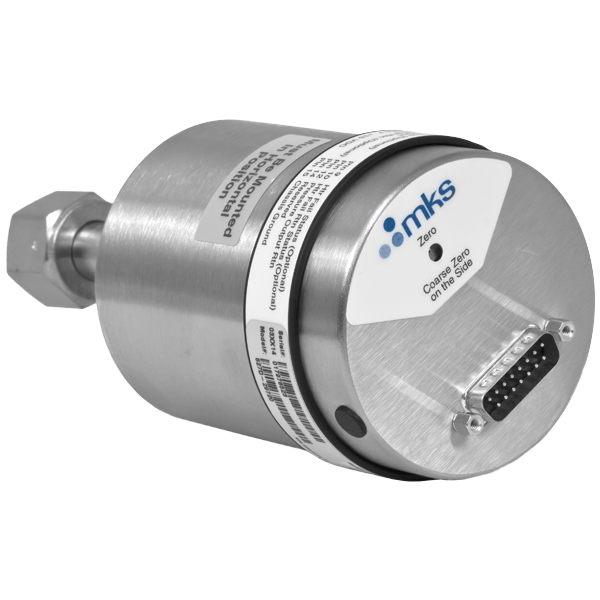

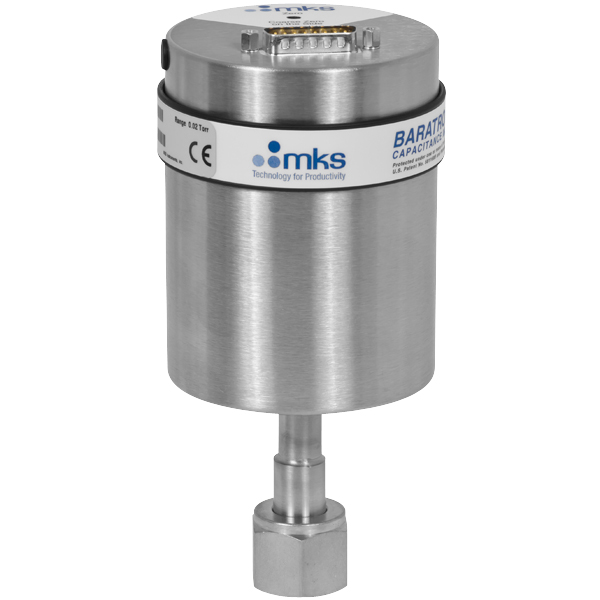

MKS 627H 0.02 Torr Heated 45 °C, Absolute Baratron Capacitance Manometer, Vacuum Fitting VCR 8 Female, Accuracy 0.25% of Reading, Vertical Calibration, PN: 627HU2TBE1B
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
MKS Part Number PN: 627HU2TBE1B.
The 627H Baratron® capacitance manometer is heated to 45°C, accurate to 0.12% of Reading and includes updated temperature-control electronics to provide superior long-term stability and repeatability. This capacitance manometer is available in Full Scale ranges down to 20 mTorr (0.03 mbar) to accommodate today’s lower process pressures. Based on established Baratron capacitance manometer technology, the sensor’s wetted surfaces are Inconel® for excellent resistance to corrosive gases. The contemporary stainless steel package provides a cleanroom-compatible product. The product is interchangeable with earlier 627A, 627B, 627D, and 627F Baratron capacitance manometers and can be used with MKS power supplies, display units and pressure controllers, or other compatible power supply/ readout devices.
These listing is for an MKS Type 627H capacitance manometer which is heated to 45 °C, have a 15-pin D-subminiature signal connector with Thread Lock, a 0.02 Torr full scale maximum vacuum pressure reading value, a VCR 8 female vacuum flange connection, an accuracy 0.25% of reading, with vertical calibration, and have MKS part number 627HU2TBE1B.

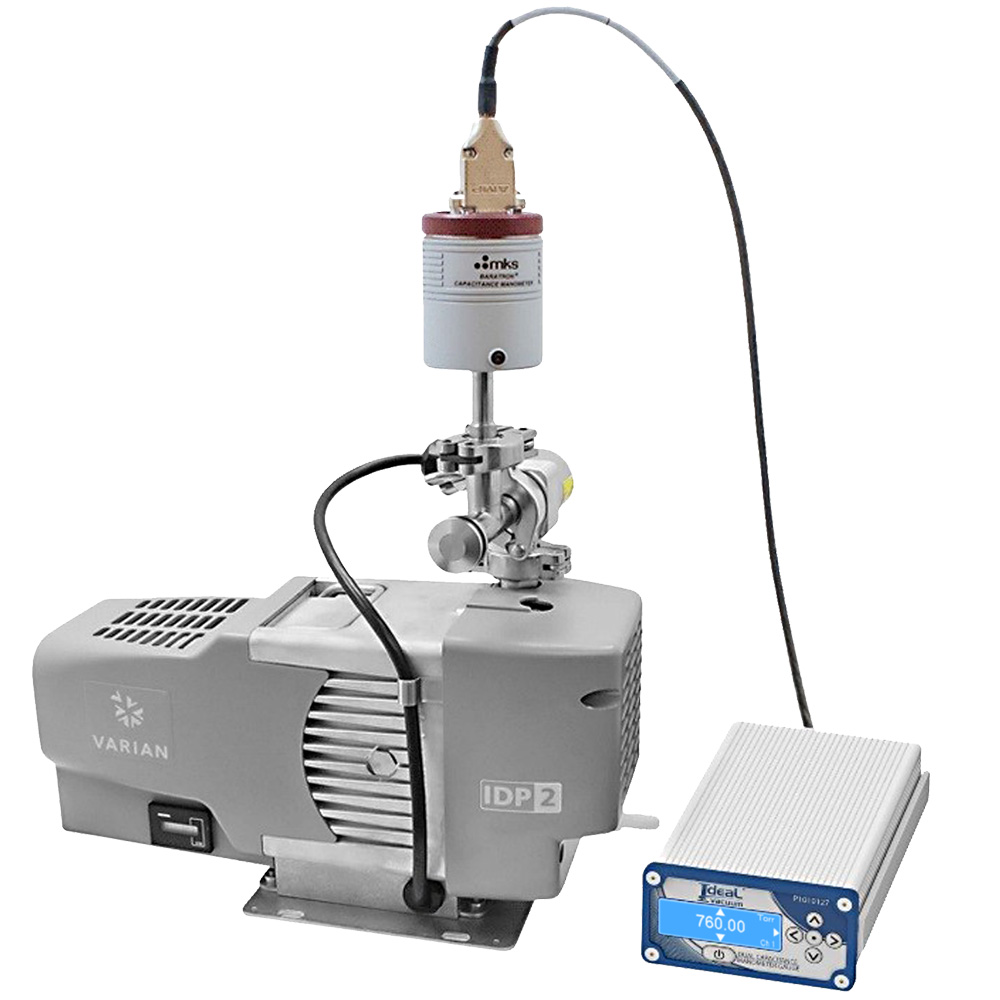

Compatible Controller and Cables:
These listing is for an MKS Type 627H capacitance manometer which is heated to 45 °C, have a 15-pin D-subminiature signal connector with Thread Lock, a 0.02 Torr full scale maximum vacuum pressure reading value, a VCR 8 female vacuum flange connection, an accuracy 0.25% of reading, with vertical calibration, and have MKS part number 627HU2TBE1B.
Compatible Controller and Cables:
- P102063 - Ideal Vacuum Cable For MKS PDR 2000 Power Supply and Digital Readout Cable 15-Pin Y Cable, Equivalent To CB2000S-1-M1
- P102062 - MKS PDR 2000 Digital Power Supply and Digital Readout Capacitance Manometer Controller
- P1010127 - Ideal Vacuum Dual Capacitance Manometer Controller (DCM), Power Supply and Digital Pressure Readout
- Excellent long-term stability
- Percent of Reading accuracy for more precise output signal in lower pressure ranges
- Full Scale ranges low as 20 mTorr (0.03 mbar) for precise measurement of low pressure processes
- All-Inconel corrosion-resistant wetted surfaces
- Faster warm-up time
- Visual and electrical status of temperature and heater control circuit
- Compatible with earlier Baratron capacitance manometers, MKS power supply/readout modules, and pressure controllers
- Measures total pressure directly, independent of gas composition
- High overpressure rating for improved reliability
- Cleanroom-compatible stainless steel package
