Methane Reference Cell, CH4, 400 Torr, 10 mm Diameter, 75 mm Length
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
These flame-sealed cells contain 400 Torr of >99.9% pure methane (CH4) at room temperature. They are used for calibration of tunable lasers in the 430-1050 nm range. While most of the absorption lines are very weak, except in the ranges of 3050-3650 nm, the alkane C-H stretch region, and 7275-8300 nm, the C-H bend region, the lines are highly accurate due to the high symmetry and simplicity of methane.

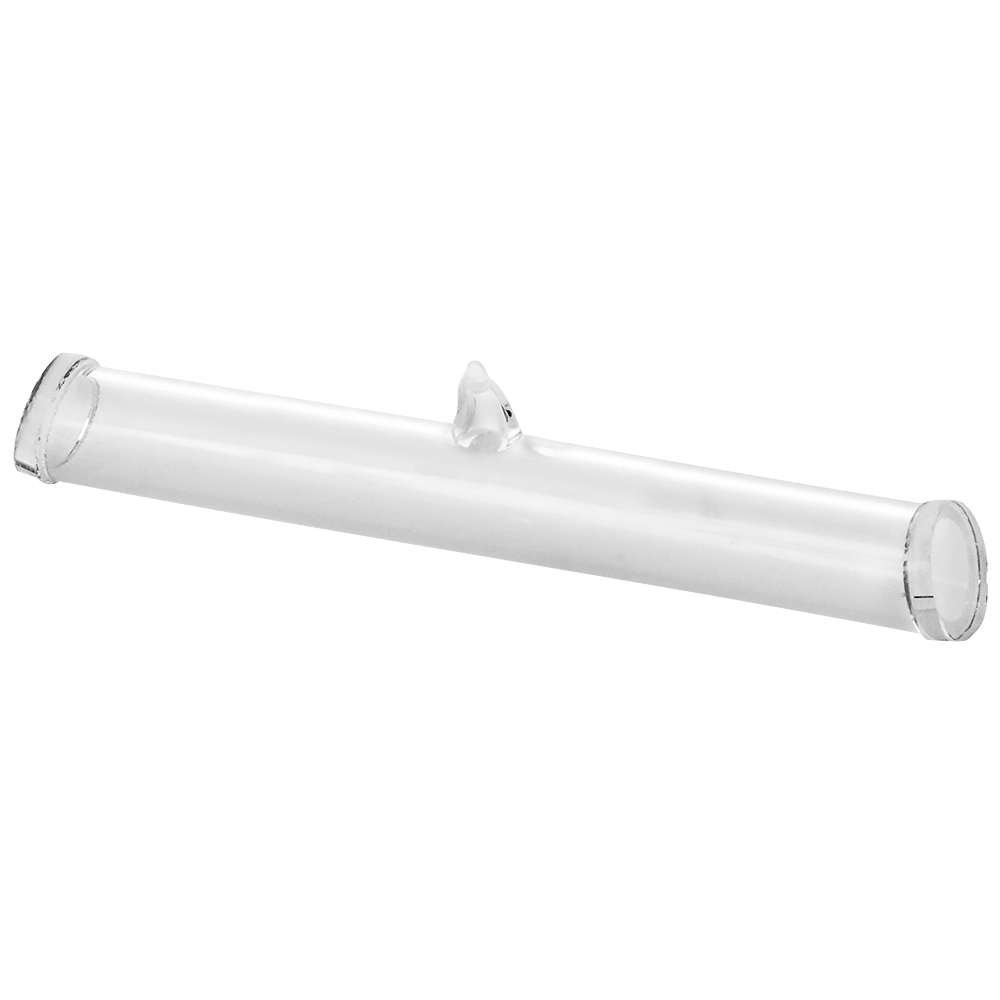

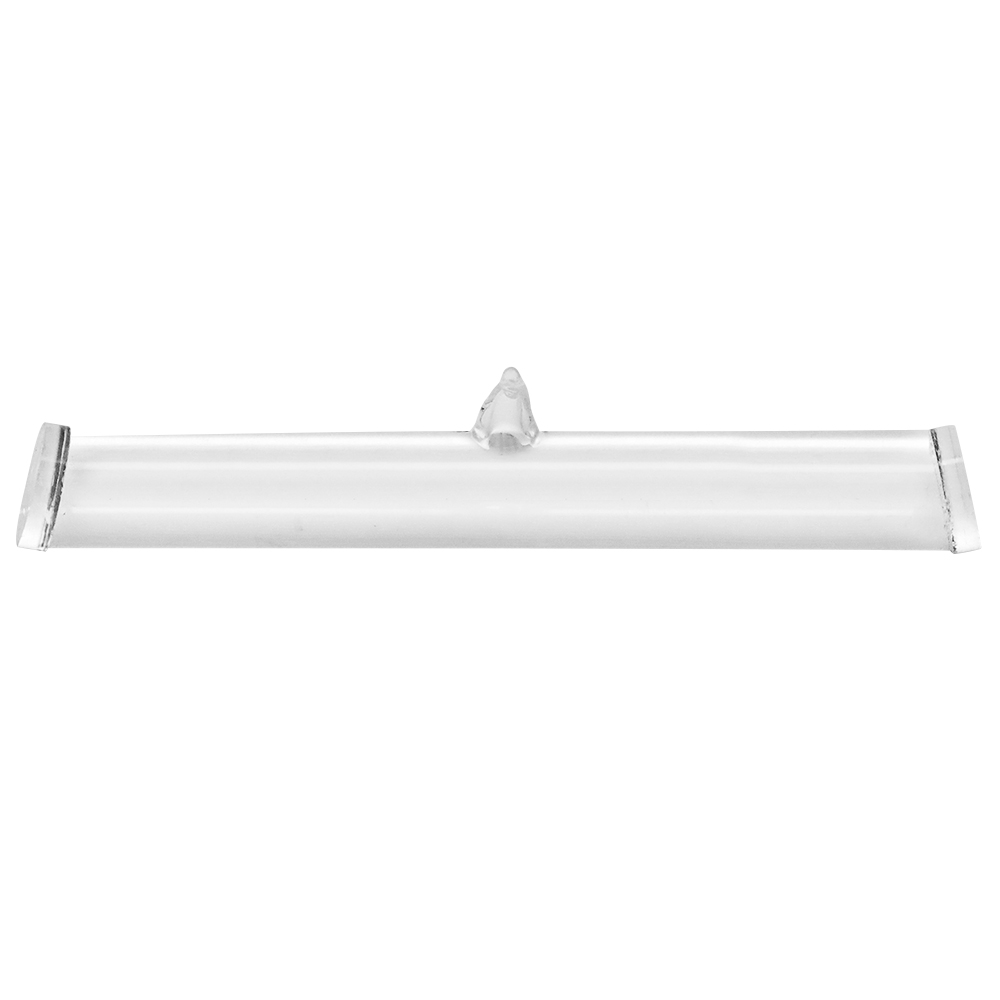

The quartz cell body is cylindrical in shape; outer diameter 10 mm; length 75 mm. The tipoff stem is centered on the cell, protruding not more than 8 mm from the cell body. Windows are angled 11° off of normal and have a 2° interior wedge to prevent back-reflection and etalon effects.
The quartz cell body is cylindrical in shape; outer diameter 10 mm; length 75 mm. The tipoff stem is centered on the cell, protruding not more than 8 mm from the cell body. Windows are angled 11° off of normal and have a 2° interior wedge to prevent back-reflection and etalon effects.
