Edwards Coarse Centering Ring Inlet Screen (2.5 mm) Splinter Guard fits nEXT Turbo Pumps with CF 10.0 in. Flange. PN: B8J200809

Write a review
$18831
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

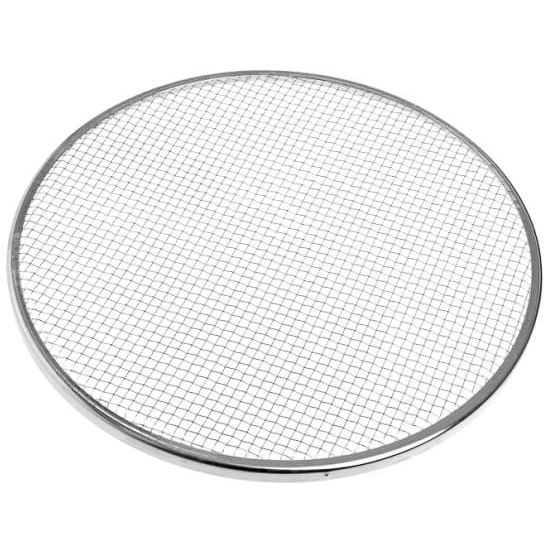

Edwards Coarse Centering Ring Inlet Screen (2.5 mm), Splinter Guard, fits nEXT930D and nEXT1230H Turbo Pumps with CF 10.0 in. Flange.
Edwards Part Number: B8J200809.

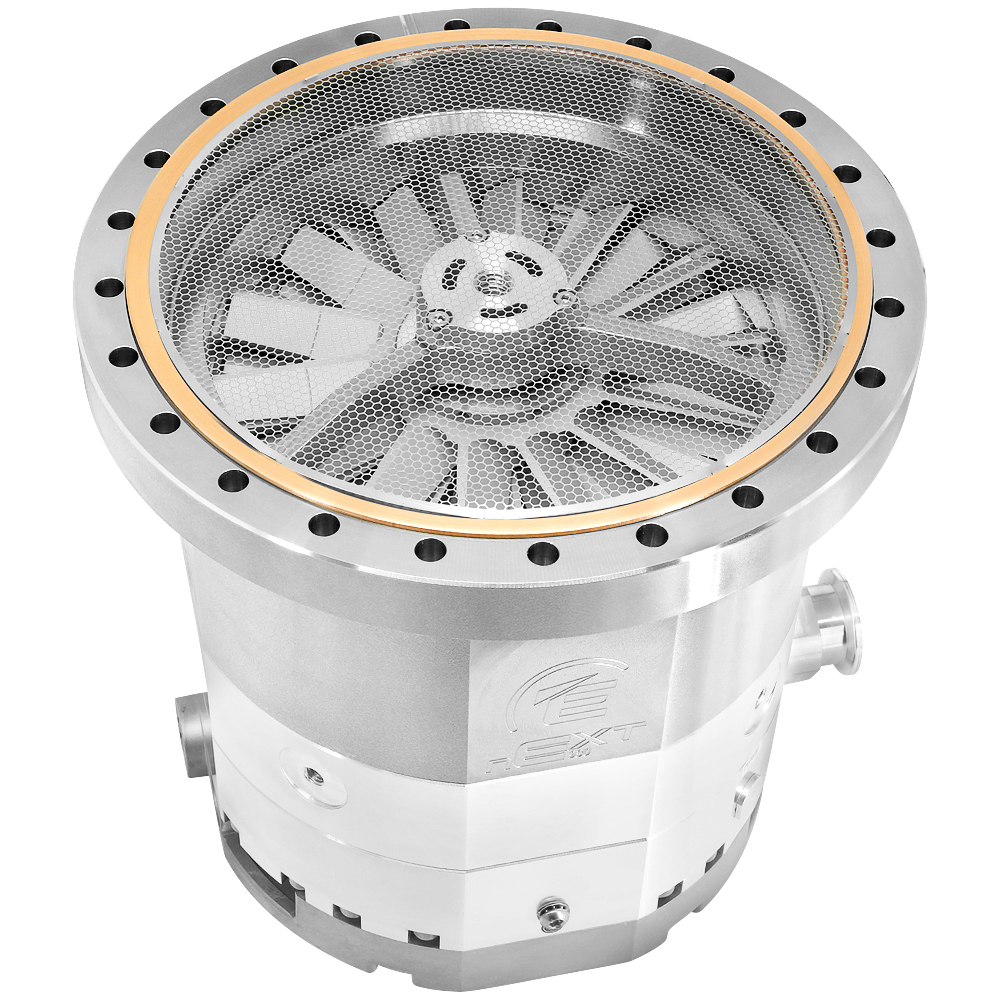

This Edwards coarse screened centering ring (2.5 mm mesh) is used to filter the vacuum flow and keep objects from being sucked into the nEXT930D or nEXT1230H turbo pump. This screen has a flange size of CF 10.0 Inch. Depending on the gas used, some pump speed reduction will occur when using this screen. This coarse screen centering ring has Edwards part number B8J200809.

This screen fits:
  • nEXT930D with CF 10.0 inch (DN 200 CF) inlet, Edwards pump part number: B8K200F00
  • nEXT1230H with CF 10.0 inch (DN 200 CF) inlet, Edwards pump part number: B8N4A0F00

Edwards_nEXT730D_nEXT930D_nEXT1230H_Turbo_Pumps_Instruction_Manual.pdf (Edwards_nEXT730D_nEXT930D_nEXT1230H_Turbo_Pumps_Instruction_Manual.pdf, 3,880 Kb) [Download]

Edwards_nEXT730_nEXT930_nEXT1230_Turbo_Pump_Datasheet.pdf (Edwards_nEXT730_nEXT930_nEXT1230_Turbo_Pump_Datasheet.pdf, 309 Kb) [Download]

Edwards_nEXT_Turbomolecular_Pump_Entire_Range_Brochure.pdf (Edwards_nEXT_Turbomolecular_Pump_Entire_Range_Brochure.pdf, 2,984 Kb) [Download]
