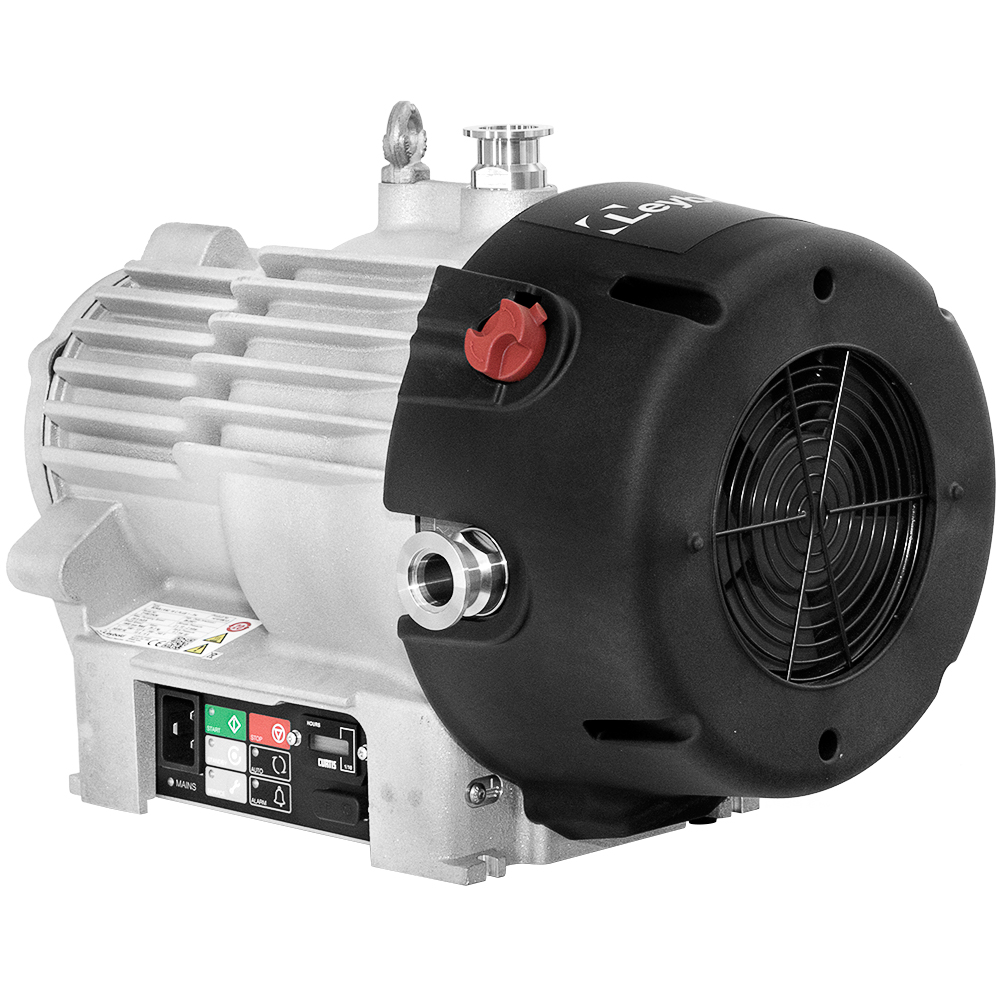

Leybold Scrollvac-15 C Plus Oil Free Dry Scroll Vacuum Pump with Gas Ballast, Chemical Resistant, 100-240 VAC. PN: 141015V12

Write a review

$10,574²⁰

$15,106⁰⁰ -30%

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Save 30%

Description
Documents
Accessories

Leybold ScrollVac 15 C Plus Oil-Free Dry Scroll Vacuum Pump 1 phase with Gas Ballast, C version with GB for Aggressive Applications, 100-127 VAC, 200-240 VAC, 50/60 Hz.
Leybold Part Number: 141015V12.

Ideal Vacuum Products is now selling the new Leybold ScrollVac 15 Plus series pumps! This new Leybold ScrollVac15 Plus range from Leybold has exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features. The Leybold ScrollVac 15 Plus is the best performing pump in its class. The Leybold ScrollVac 15 Plus is up to 20 times quieter than other pumps. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies. NOW with a universal voltage power supply (100-127VAC - 200-240VAC) for performance anywhere in the world. This is the 1 phase motor ScrollVac 15 Plus version with 8.5 CFM.

The Leybold ScrollVac 15 Plus pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The Leybold ScrollVac 15 Plus is the next generation in completely oil free, dry scroll pumps. No shaft seal to wear allowing much longer intervals between servicing. It offers increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. ScrollVac 15 Plus pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. ScrollVac 15 Plus pumps are designed to be completely field serviceable.

P61012235.sldprt (P61012235.sldprt, 17,919 Kb) [Download]

P61012235.step (P61012235.step, 37,449 Kb) [Download]

Leybold_ScroollVac.pdf (Leybold_ScroollVac.pdf, 2,250 Kb) [Download]

Ideal_Vacuum_Leybold_ScrollVAC_Users_Instruction_Manual_2022.pdf (Ideal_Vacuum_Leybold_ScrollVAC_Users_Instruction_Manual_2022.pdf, 4,253 Kb) [Download]
