These ITR 90 gauge kits (with IONIVAC ITR 90 Pirani with a Bayard-Alpert -Hot Cathode Ionization- Sensor Gauge) are designed to work with Leybold TURBOLAB 80 System. The functions of the Leybold IONIVAC ITR 90 gauge with a Bayard Alpert hot cathode ionization measurement system (for p < 2.0×10-2 mbar) and a Pirani measurement system (for p > 5.5×10-3 mbar) pressure range 750 Torr to 3.8x10-10 Torr. In the overlapping pressure range of 2.0×10-2 … 5.5×10-3 mbar a mixed signal of the two measurement systems is output. The hot cathode is switched on by the Pirani measurement system only below the switching threshold of 2.4×10-2 mbar (to prevent filament burn-out). It is switched off when the pressure exceeds 3.2×10-2 mbar.

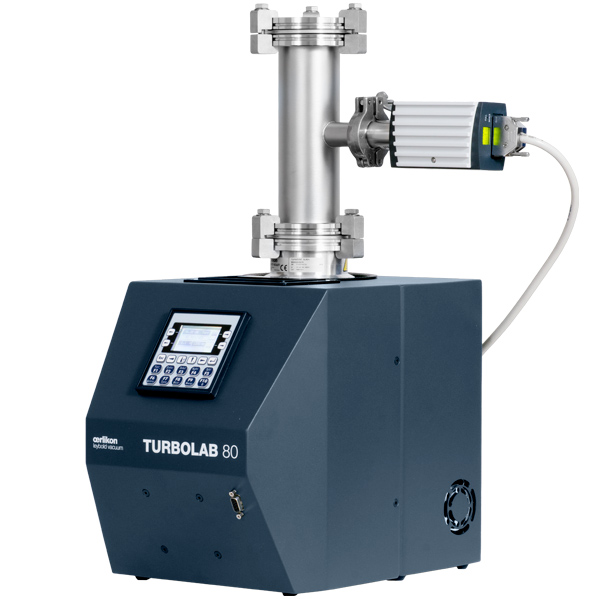

The Hot Ion Combi Gauges ITR 90 has been designed for vacuum measurement of non-flammable gases and gas mixtures in a pressure range 750 Torr to 3.8x10-10 Torr (5×10-10 … 1000 mbar), comes with KF25 vacuum flange fitting. The gauge can be operated in connection with the TURBOLAB 80 or with another evaluation unit.

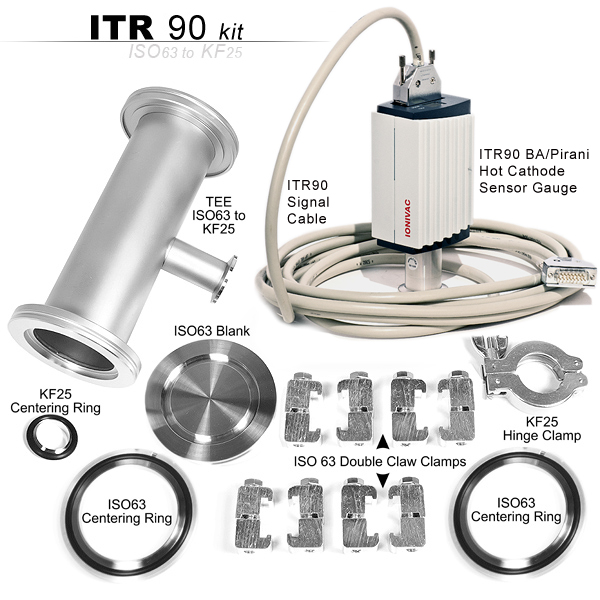

This is a GAUGE KIT ONLY, individual parts or systems sold separately. Gauge Kit includes all the parts listed below.
The Hot Ion Combi Gauges ITR 90 has been designed for vacuum measurement of non-flammable gases and gas mixtures in a pressure range 750 Torr to 3.8x10-10 Torr (5×10-10 … 1000 mbar), comes with KF25 vacuum flange fitting. The gauge can be operated in connection with the TURBOLAB 80 or with another evaluation unit.
This is a GAUGE KIT ONLY, individual parts or systems sold separately. Gauge Kit includes all the parts listed below.
