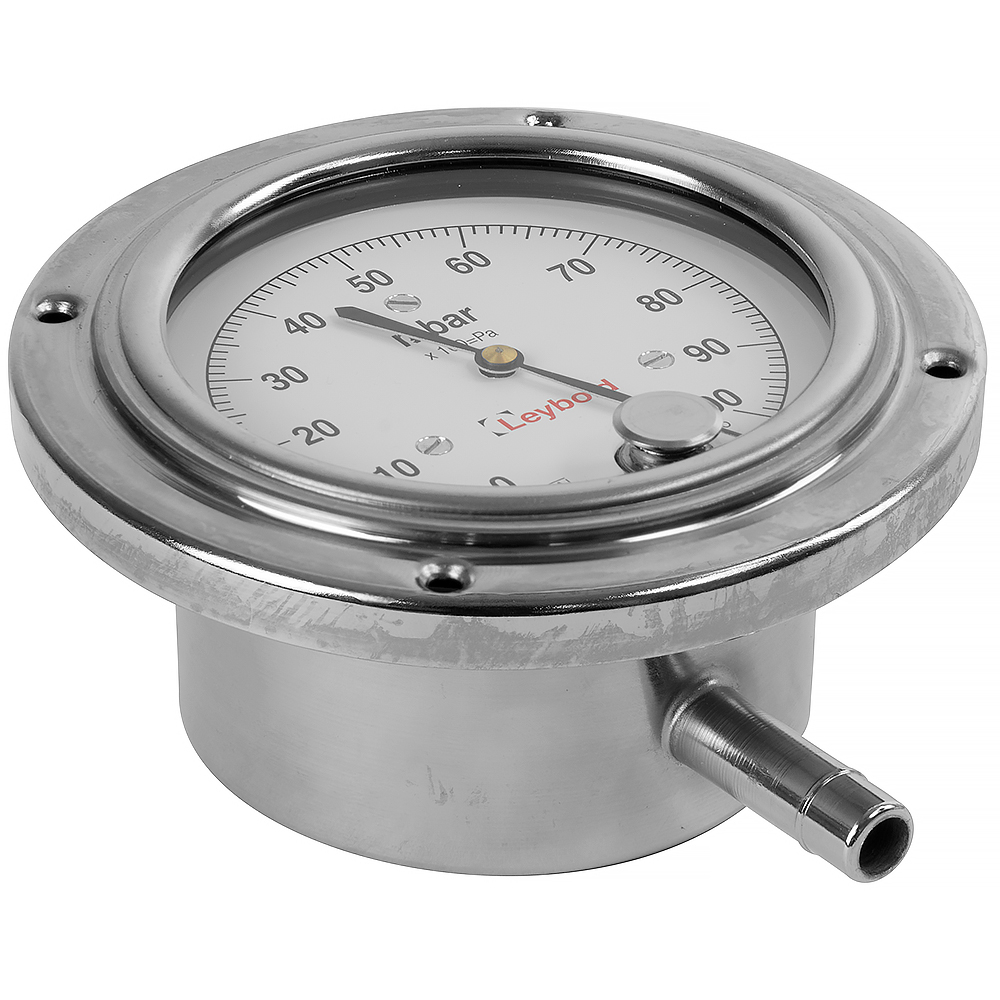

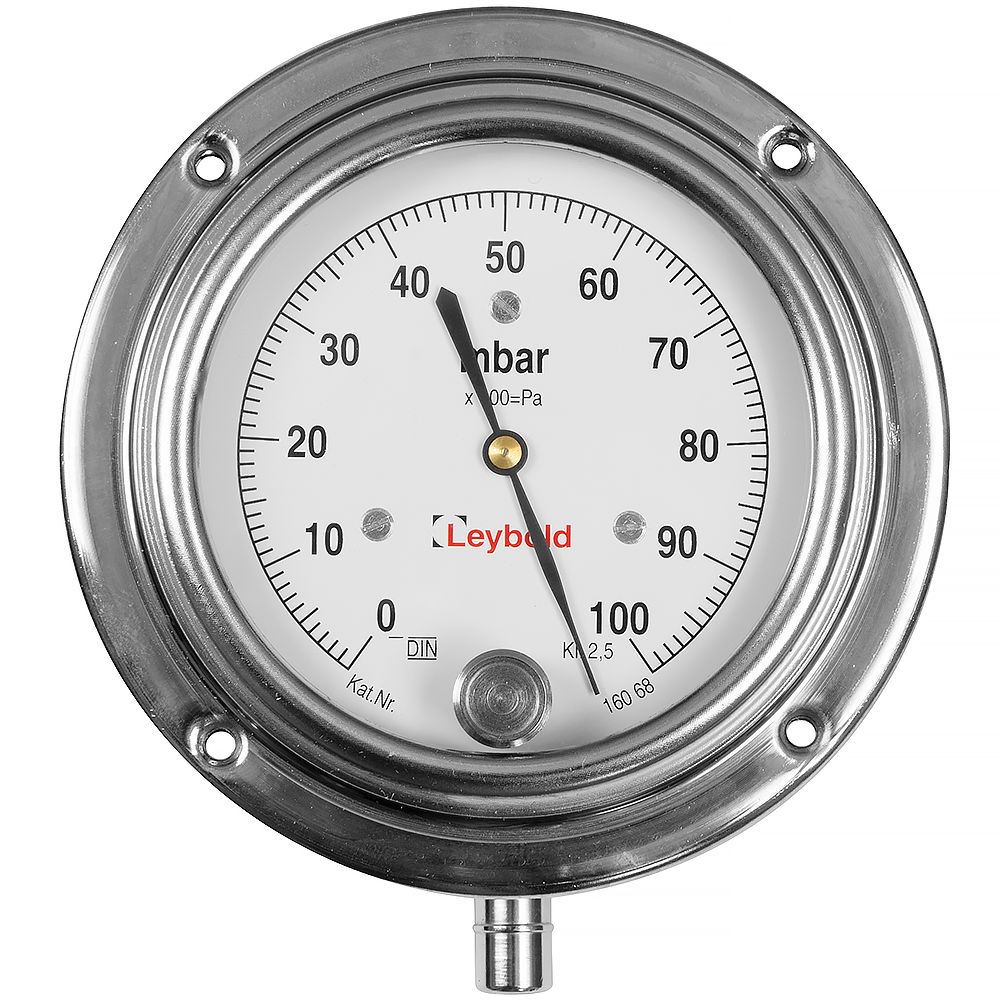

Leybold Capsule Vacuum Pressure Gauge With DN10mm 3/8 in. Hose Nozzle PN: 16068
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
The Leybold Vacuum Pressue Gauge is commonly called a (BOURDONVAC, DIAVAC, capsule vacuum gauge) the pressure is determined directly by recording the force acting on the surface of a diaphragm. In this case of direct (or absolute) pressure measurements, the readings obtained through the vacuum gauge are independent of the type of gas and the pressure which is to be measured.

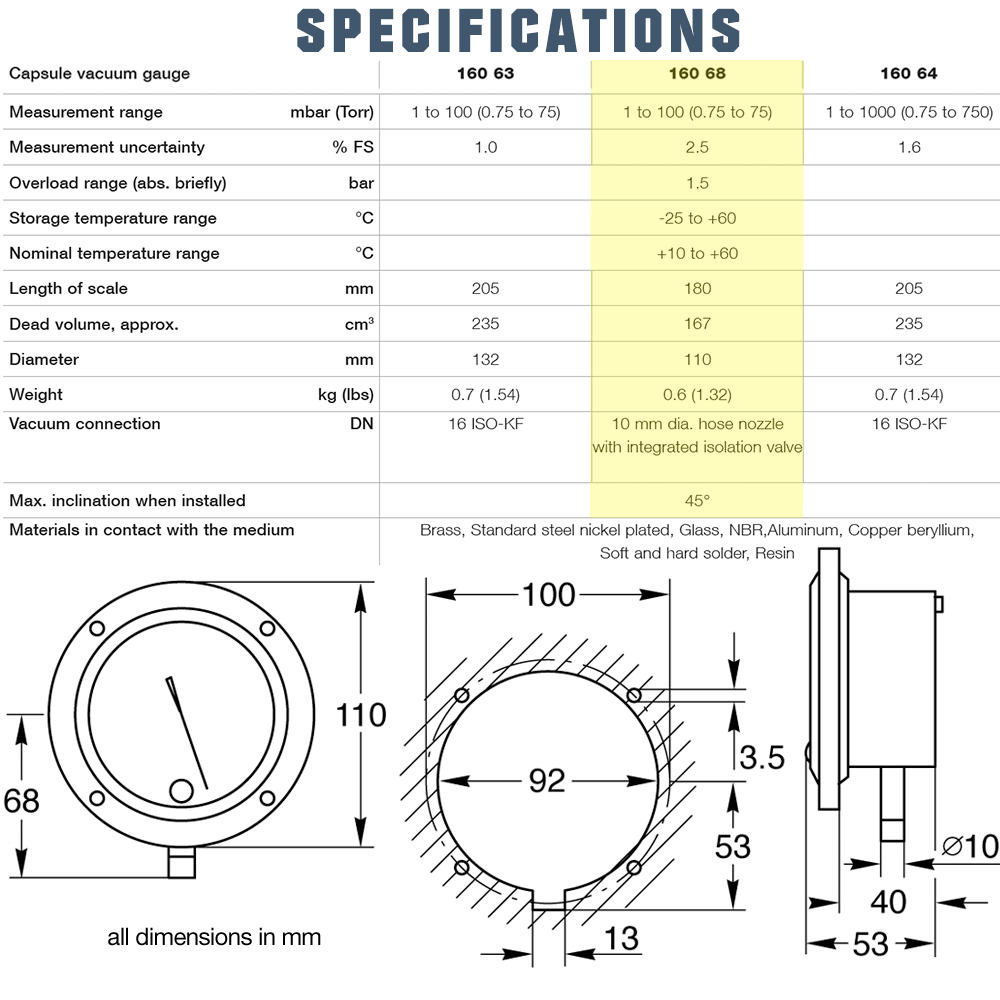

This vacuum gauge contains a hermetically sealed, evacuated, thinwalled diaphragm capsule which is located within the instrument. As the vacuum pressure reduces, the capsule bulges. This movement is transferred via a system of levers to a pointer and can then be read off as the pressure on a linear scale.The pressure range is approx. from 1 to 100 mbar (0.75 to 75 Torr). This gauge connects with a hose nozzle DN10 mm 3/8in.This Model 16068 has the integrated isolation valve for use on packaging machines.
This vacuum gauge contains a hermetically sealed, evacuated, thinwalled diaphragm capsule which is located within the instrument. As the vacuum pressure reduces, the capsule bulges. This movement is transferred via a system of levers to a pointer and can then be read off as the pressure on a linear scale.The pressure range is approx. from 1 to 100 mbar (0.75 to 75 Torr). This gauge connects with a hose nozzle DN10 mm 3/8in.This Model 16068 has the integrated isolation valve for use on packaging machines.
