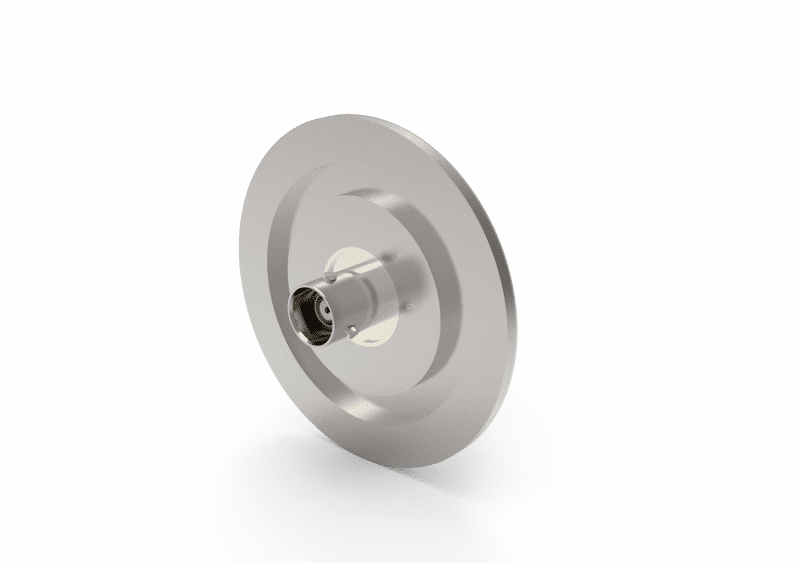

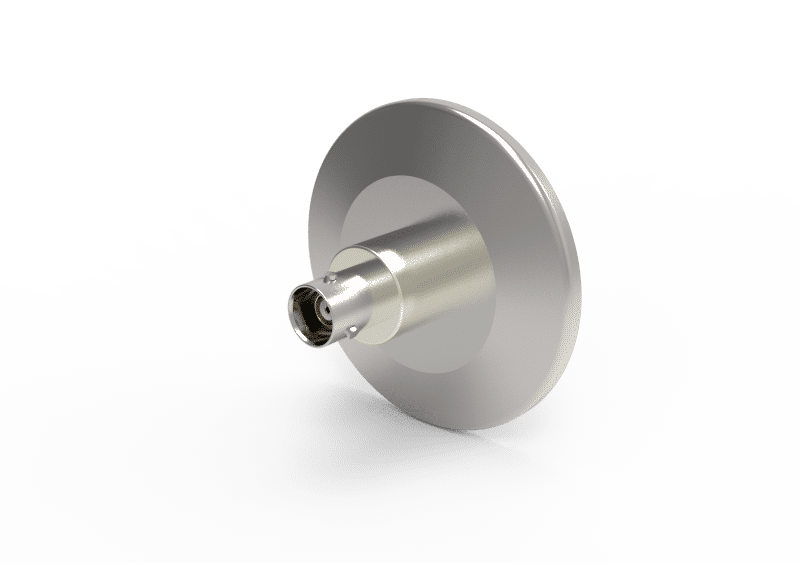

KF40-TRIAX/BNC Type BNC Type BNC
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Triaxial BNC |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Contact coating | Nickel-plated |
| Article no. | 354043 |
| Connection type | KF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 3 A |
| Maximum current per contact | 3 A |
| Impedance | Not matched |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Kovar® |
| Material contact(s) | Kovar® |
| Magnetic | Yes |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Outer diameter | 55 mm |
| Outer diameter | 2.165 ″ |
| Diameter | 15,75 mm |
| Diameter | 0.62 ″ |
| Length | 29,1 mm |
| Length | 1.146 ″ |
| Length 2 | 10,5 mm |
| Length 2 | 0.413 ″ |
| Purity class | PCS |
