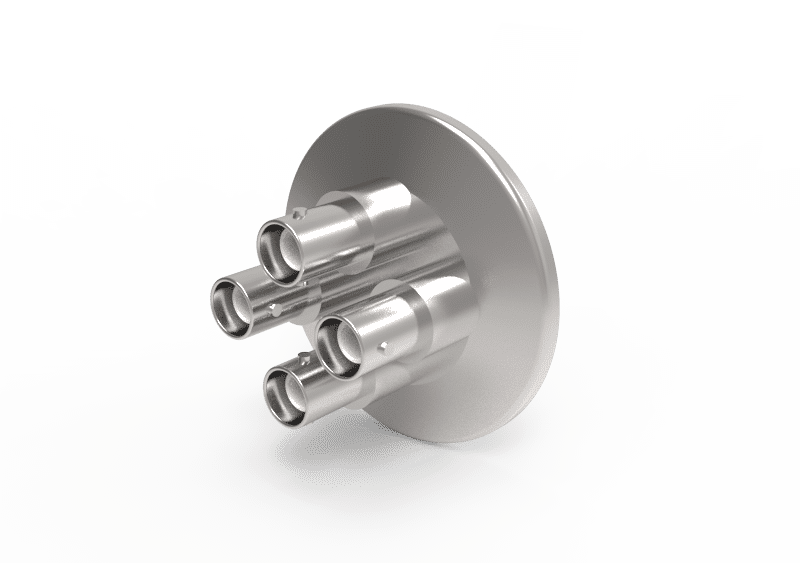

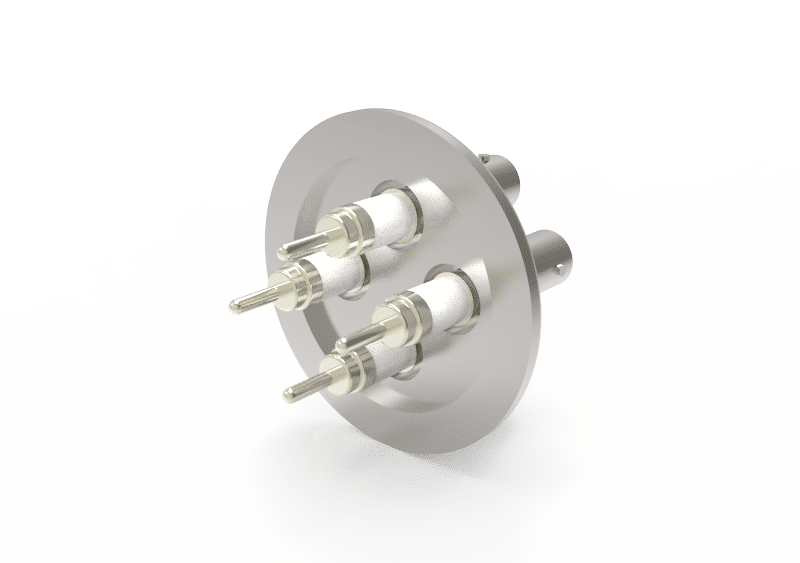

KF40-SHV5-4-SH-SE-CE-NI SHV 5 kV, Grounded Shield, exposed SHV 5 kV, Grounded Shield, exposed
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | SHV 5 kV, grounded shield, exposed |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 311859 |
| Connection type | KF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 4 |
| Max. voltage | 5 kV DC |
| Max. voltage | 5 kV DC |
| Max. current per contact | 10 A |
| Maximum current per contact | 10 A |
| Impedance | Not matched |
| Shield | Grounded |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | nickel |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 2,4 mm |
| Diameter contact(s) | 0.094 ″ |
| Outer diameter | 55 mm |
| Outer diameter | 2.165 ″ |
| Diameter | 22 mm |
| Diameter | 0.866 ″ |
| Diameter 2 | 7,8 mm |
| Diameter 2 | 0.307 ″ |
| Diameter 3 | 2,4 mm |
| Diameter 3 | 0.094 ″ |
| Length | 28,9 mm |
| Length | 1.138 ″ |
| Length 2 | 22 mm |
| Length 2 | 0.866 ″ |
| Length 3 | 10,2 mm |
| Length 3 | 0.402 ″ |
| Purity class | PCS |
