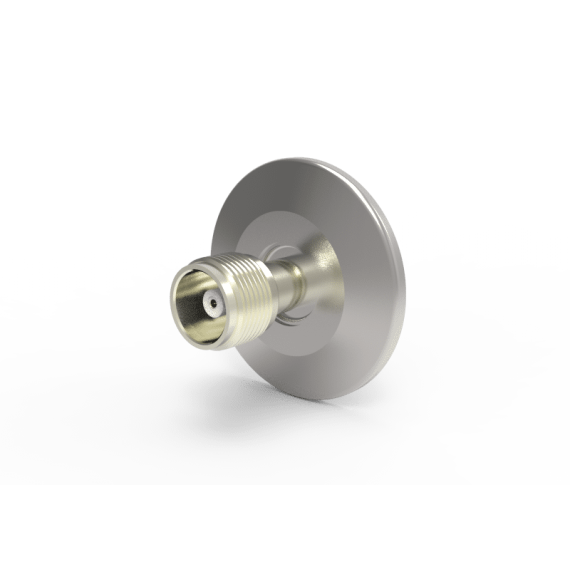

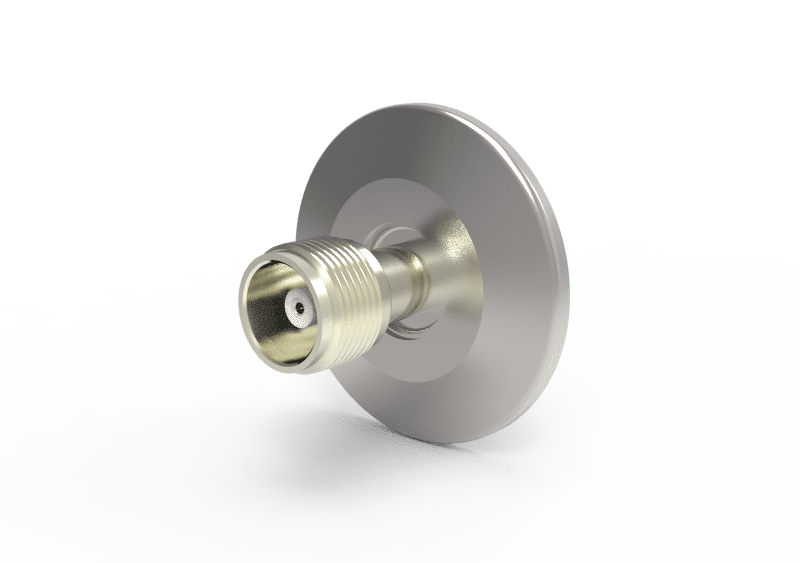

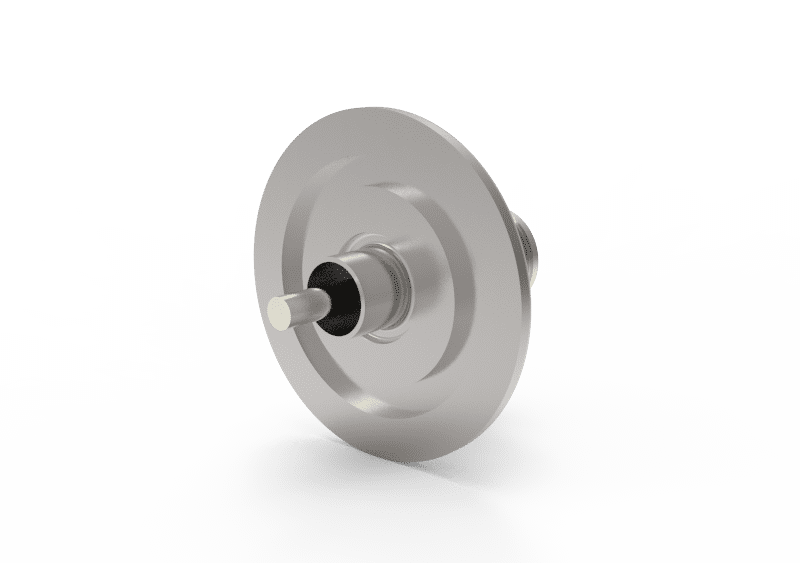

KF40-HN50-GS-SE-CE-NI Type HN 50 Ohm Type HN 50 Ohm

$1,07972
In stock
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
Category Type HN 50 Ohm
Bakeout temperature 392 °F
Max. bakeout temperature 200 °C
Article no. 305258
Connection type KF
Nominal diameter 40
Leakrate < 1E-9 mbar ∙ l/s
Number of contacts 1
Max. voltage 7 kV DC
Max. voltage 7 kV DC
Max. current per contact 7 A
Maximum current per contact 7 A
Impedance 50 Ohm
Maximum frequency (recommended) 7 GHz
Frequency 7 GHz
Shield Grounded
Plug connections Air side
Flange material Stainless Steel 304L
Material housing/weld adapter Stainless steel 304L
Material insulation Alumina ceramic
Material contact(s) Copper alloy
Magnetic No
Min. operating temperature -269 °C
Min. operating temperature -452.2 °F
Max. operating temperature 150 °C
Max. operating temperature 302 °F
Diameter contact(s) 4,9 mm
Diameter contact(s) 0.193 ″
Outer diameter 55 mm
Outer diameter 2.165 ″
Diameter 12,7 mm
Diameter 0.5 ″
Diameter 2 4,9 mm
Diameter 2 0.193 ″
Length 32 mm
Length 1.26 ″
Length 2 19,8 mm
Length 2 0.78 ″
Purity class PCS

VAC_305258_KF40-HN50-GS-SE-CE-NI.STP (VAC_305258_KF40-HN50-GS-SE-CE-NI.STP, 151 Kb) [Download]
