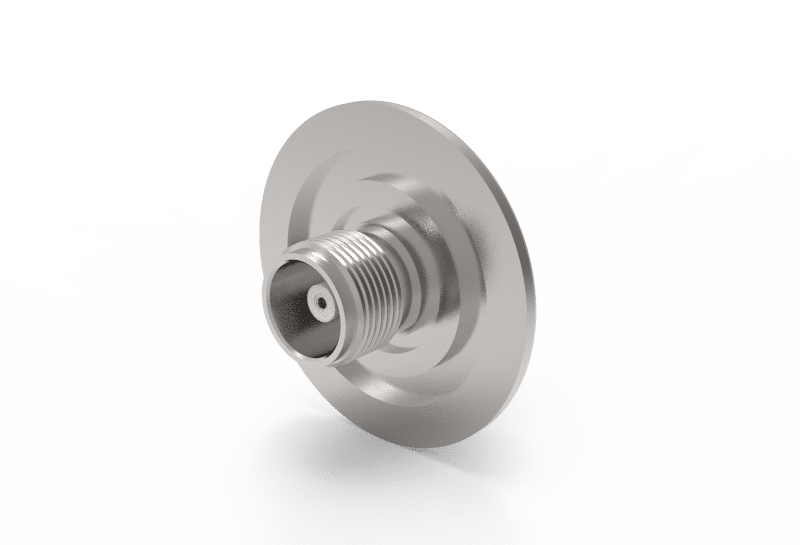

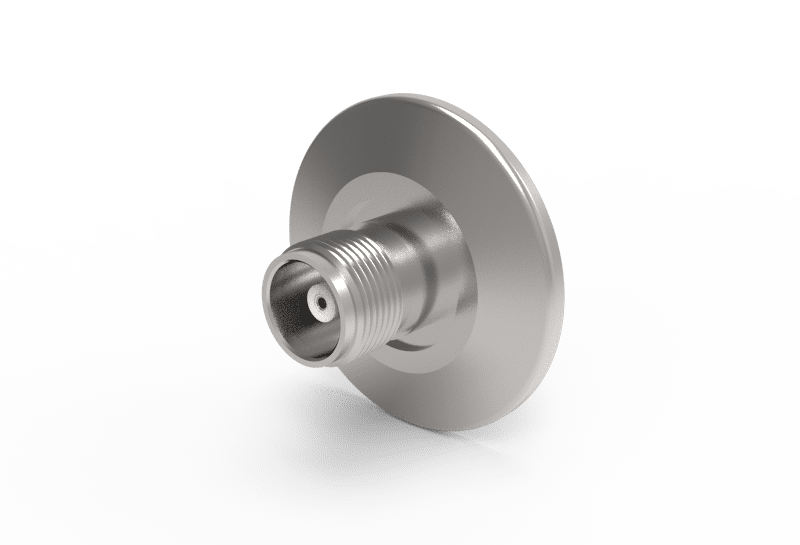

KF40-HN50-GS-DE-CE-SS Type HN 50 Ohm Type HN 50 Ohm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type HN 50 Ohm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 338212 |
| Connection type | KF |
| Nominal diameter | 40 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 7 kV DC |
| Max. voltage | 7 kV DC |
| Max. current per contact | 7 A |
| Maximum current per contact | 7 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 7 GHz |
| Frequency | 7 GHz |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material contact(s) | Stainless steel |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Outer diameter | 55 mm |
| Outer diameter | 2.165 ″ |
| Length | 26 mm |
| Length | 1.024 ″ |
| Length 2 | 17 mm |
| Length 2 | 0.669 ″ |
| Purity class | PCS |
