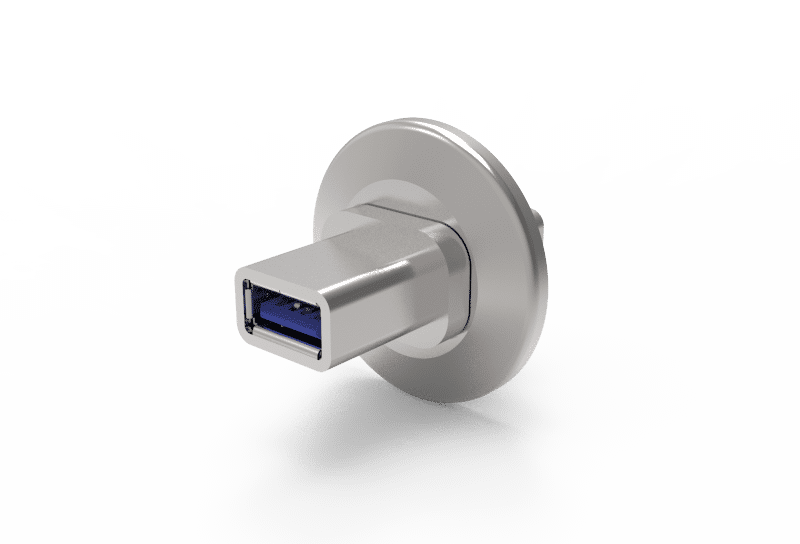

KF25-USB3.0-FF-GC-CBG USB USB
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | USB |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Contact coating | Gold-plated |
| Article no. | 375088 |
| Connection type | KF |
| Nominal diameter | 25 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 9 |
| Max. voltage | 0,03 kV DC |
| Max. voltage | 0.03 kV DC |
| Max. current per contact | 1 A |
| Maximum current per contact | 1 A |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Beryllium copper |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Outer diameter | 40 mm |
| Outer diameter | 1.575 ″ |
| Length | 43,8 mm |
| Length | 1.724 ″ |
| Length 2 | 27,7 mm |
| Length 2 | 1.091 ″ |
| Length 3 | 16,1 mm |
| Length 3 | 0.634 ″ |
| Length 4 | 6 mm |
| Length 4 | 0.236 ″ |
| Purity class | PCS |
