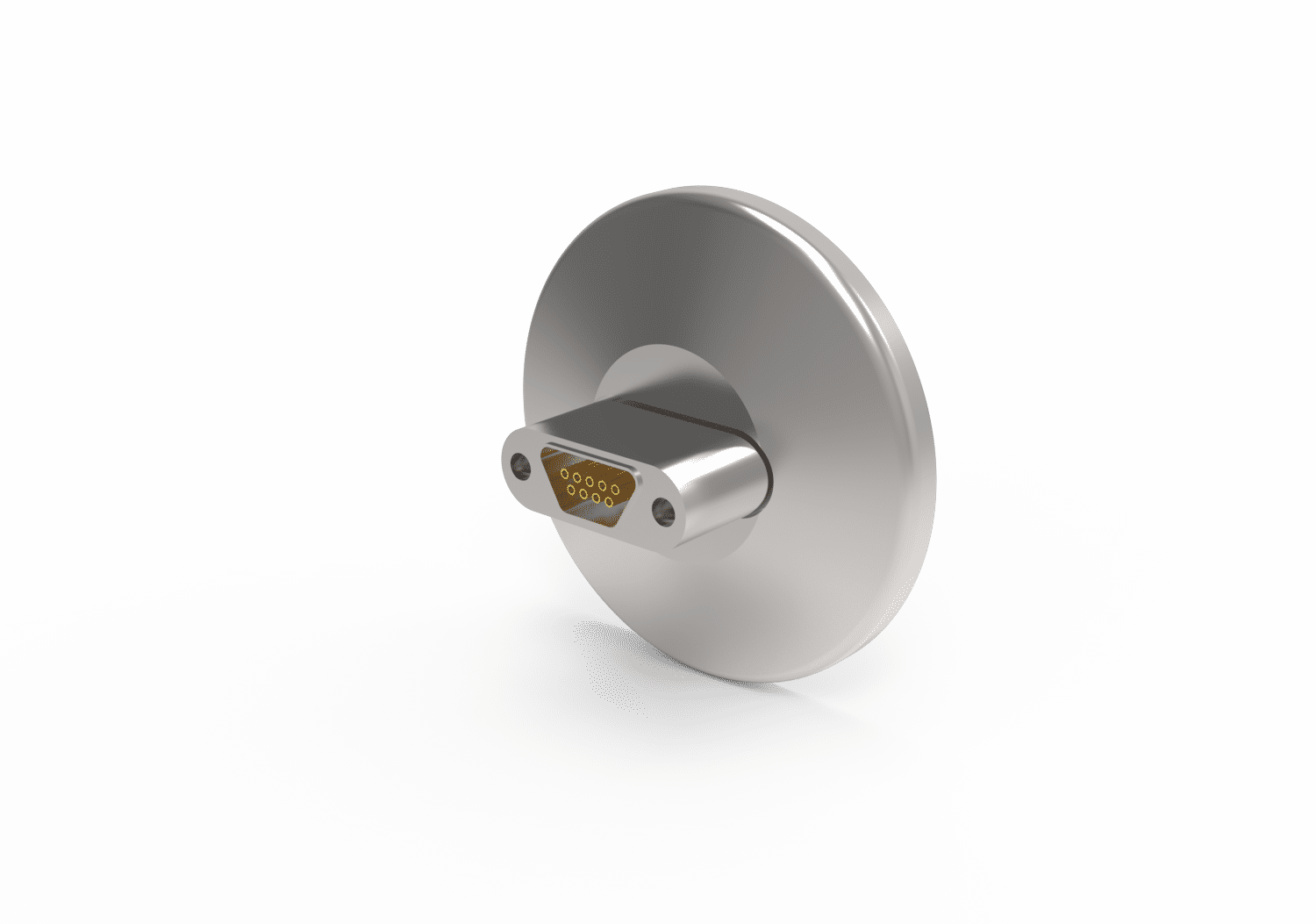

KF25-MDTL8-9-FM-CE-CBG Micro-D Micro-D
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Micro-D |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Contact coating | Gold-plated |
| Article no. | 301799 |
| Connection type | KF |
| Nominal diameter | 25 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 9 |
| Max. voltage | 0,3 kV DC |
| Max. voltage | 0.3 kV DC |
| Max. current per contact | 2 A |
| Maximum current per contact | 2 A |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Beryllium copper |
| Magnetic | No |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Diameter contact(s) | 0,46 mm |
| Diameter contact(s) | 0.018 ″ |
| Outer diameter | 40 mm |
| Outer diameter | 1.575 ″ |
| Length | 15,7 mm |
| Length | 0.618 ″ |
| Purity class | PCS |
