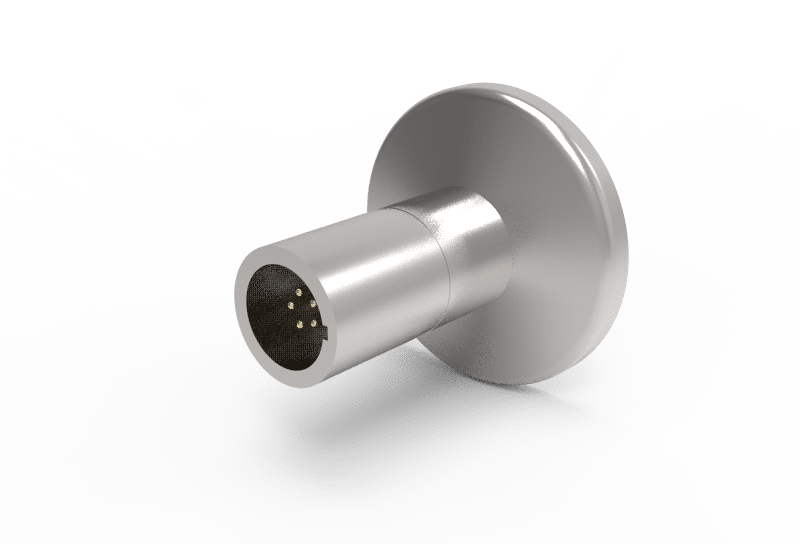

KF16-VB-1B-05 Push-Pull Compact Power Push-Pull Compact Power
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Push-Pull Compact Power |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Contact coating | Gold-plated |
| Article no. | 301694 |
| Connection type | KF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 5 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 7,5 A |
| Maximum current per contact | 7.5 A |
| Impedance | Not specified |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material contact(s) | Kovar® |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Diameter contact(s) | 0,9 mm |
| Diameter contact(s) | 0.035 ″ |
| Outer diameter | 30 mm |
| Outer diameter | 1.181 ″ |
| Diameter | 12 mm |
| Diameter | 0.472 ″ |
| Length | 28,7 mm |
| Length | 1.13 ″ |
| Purity class | PCS |
