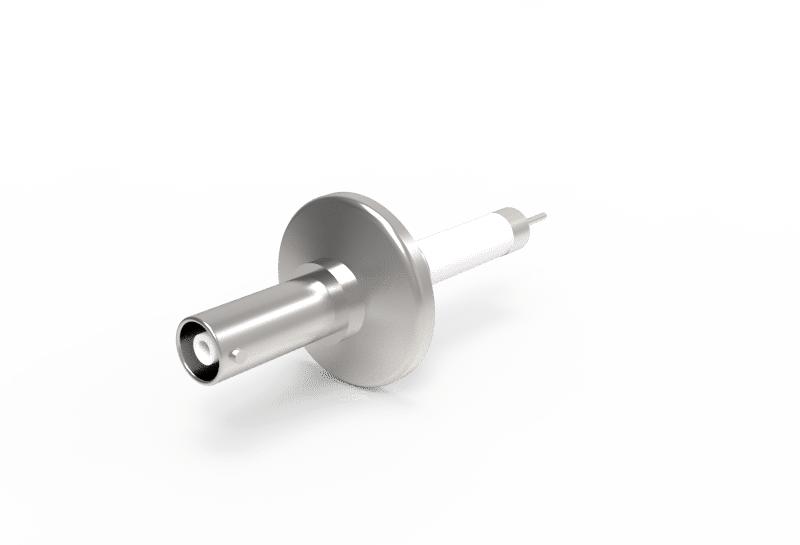

KF16-SHV10-SH-SE-CE-NI SHV 10 kV, Grounded Shield, exposed SHV 10 kV, Grounded Shield, exposed
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | SHV 10 kV, grounded shield, exposed |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 301677 |
| Connection type | KF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 10 kV DC |
| Max. voltage | 10 kV DC |
| Max. current per contact | 8,2 A |
| Maximum current per contact | 8.2 A |
| Impedance | Not matched |
| Shield | Grounded |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | nickel |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 1,3 mm |
| Diameter contact(s) | 0.051 ″ |
| Outer diameter | 30 mm |
| Outer diameter | 1.181 ″ |
| Diameter | 11,9 mm |
| Diameter | 0.469 ″ |
| Diameter 2 | 7,8 mm |
| Diameter 2 | 0.307 ″ |
| Diameter 3 | 1,3 mm |
| Diameter 3 | 0.051 ″ |
| Length | 30,9 mm |
| Length | 1.217 ″ |
| Length 2 | 50,2 mm |
| Length 2 | 1.976 ″ |
| Length 3 | 10,2 mm |
| Length 3 | 0.402 ″ |
| Purity class | PCS |
