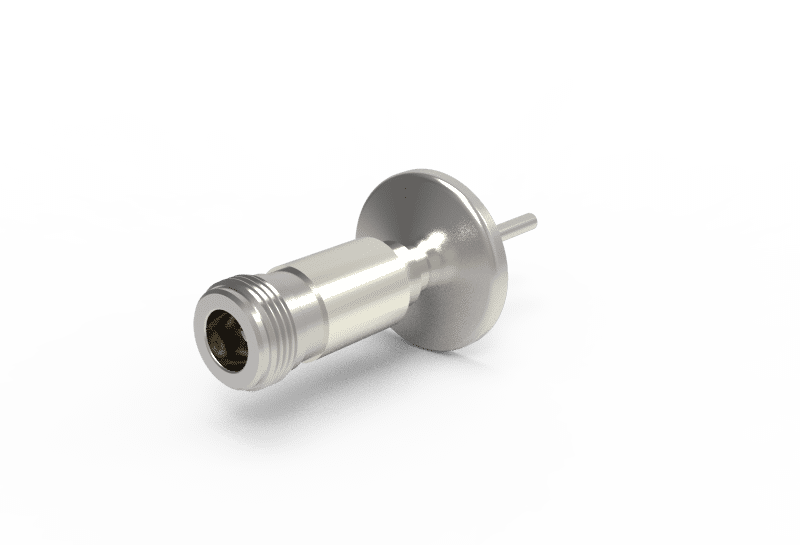

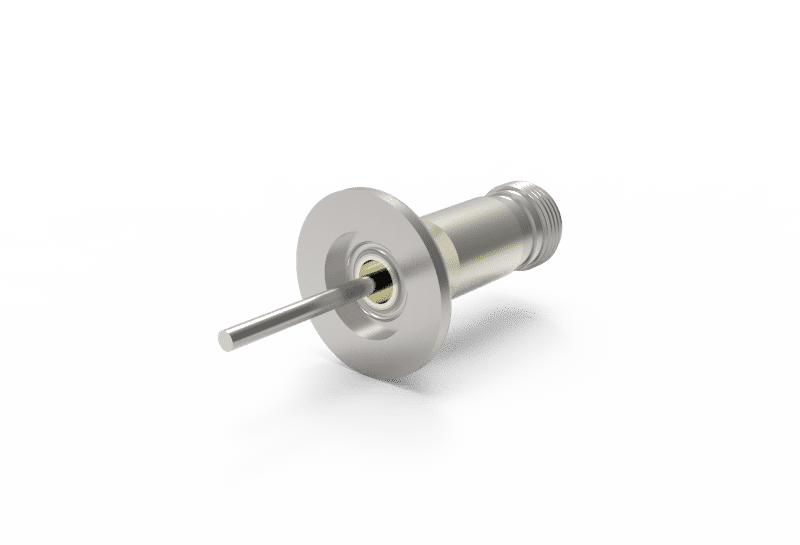

KF16-N50-GS-SE-CE-SS Type N 50 Ohm Type N 50 Ohm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Type N 50 Ohm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 364919 |
| Connection type | KF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 1,5 kV DC |
| Max. voltage | 1.5 kV DC |
| Max. current per contact | 5 A |
| Maximum current per contact | 5 A |
| Impedance | 50 Ohm |
| Maximum frequency (recommended) | 4 GHz |
| Frequency | 4 GHz |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Kovar® |
| Material contact(s) | Stainless steel |
| Magnetic | Yes |
| Min. operating temperature | -80 °C |
| Min. operating temperature | -112 °F |
| Max. operating temperature | 350 °C |
| Max. operating temperature | 662 °F |
| Diameter contact(s) | 3,1 mm |
| Diameter contact(s) | 0.122 ″ |
| Outer diameter | 30 mm |
| Outer diameter | 1.181 ″ |
| Diameter | 3,1 mm |
| Diameter | 0.122 ″ |
| Length | 44 mm |
| Length | 1.732 ″ |
| Length 2 | 27,7 mm |
| Length 2 | 1.091 ″ |
| Purity class | PCS |
