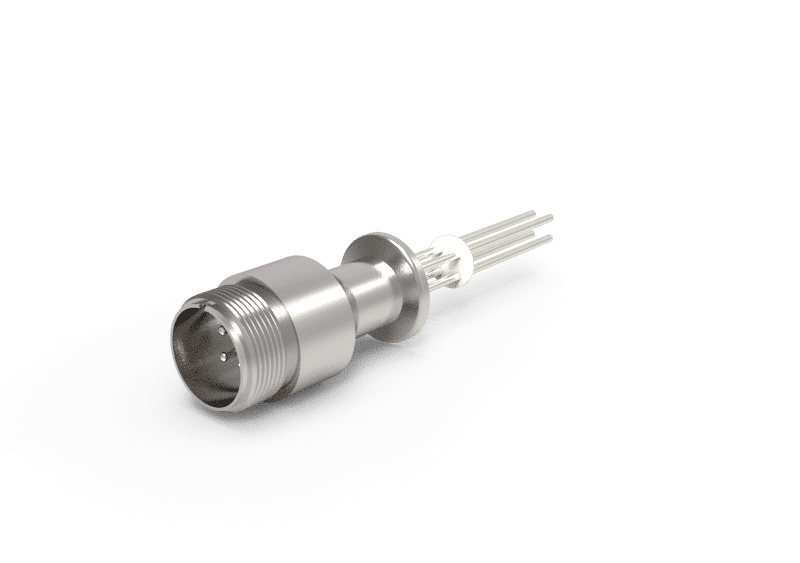

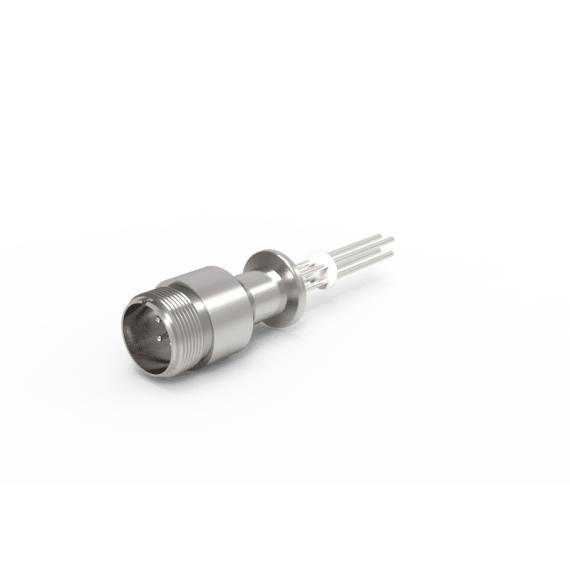

KF16-MPC5C-4-SE-CE-NI MPC5C MPC5C
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | MPC5C |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 301674 |
| Connection type | KF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 4 |
| Max. voltage | 0,7 kV DC |
| Max. voltage | 0.7 kV DC |
| Max. current per contact | 16 A |
| Maximum current per contact | 16 A |
| Plug connections | Air side |
| Flange material | Stainless Steel 304L |
| Material contact(s) | nickel |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 2,4 mm |
| Diameter contact(s) | 0.094 ″ |
| Outer diameter | 33 mm |
| Outer diameter | 1.299 ″ |
| Diameter | 9,3 mm |
| Diameter | 0.366 ″ |
| Diameter 2 | 2,4 mm |
| Diameter 2 | 0.094 ″ |
| Length | 135 mm |
| Length | 5.315 ″ |
| Length 2 | 61,8 mm |
| Length 2 | 2.433 ″ |
| Purity class | PCS |
