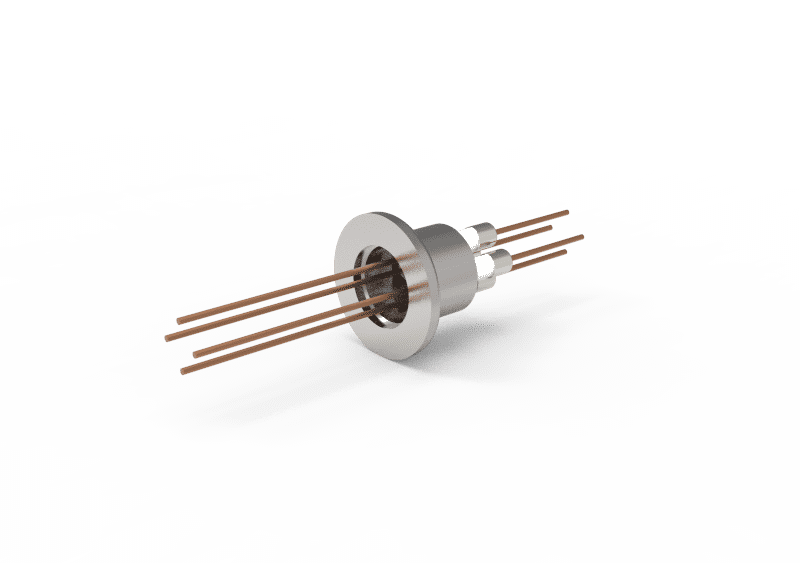

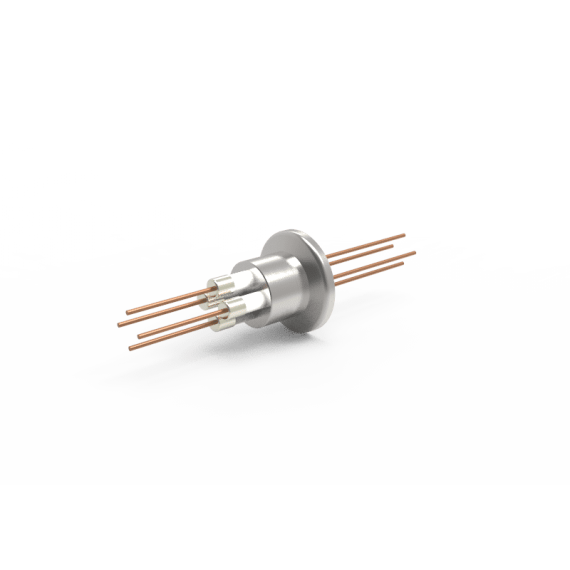

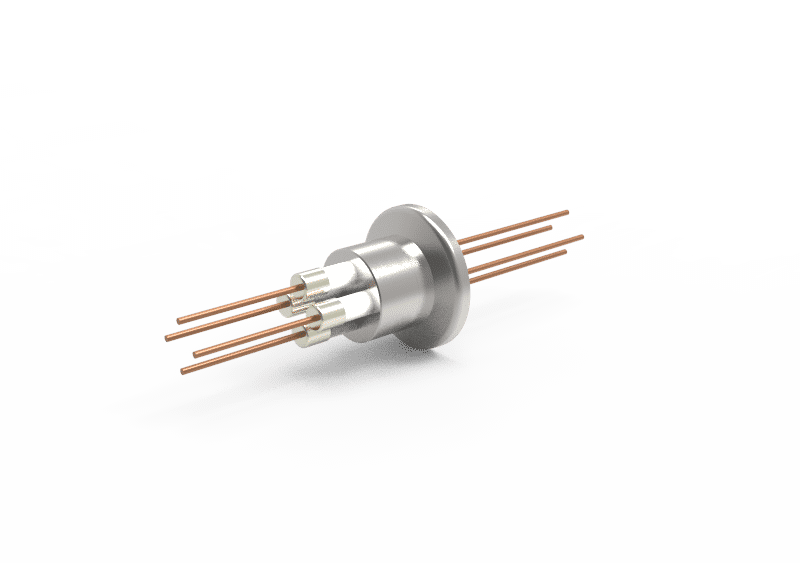

KF16-HV6-4-CE-CU13 4 Conductor-Ø 1.3 mm 4 Conductor-Ø 1.3 mm
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | 6 kV DC, 4 contacts, Ø 1.3 mm |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 301661 |
| Connection type | KF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 4 |
| Max. voltage | 6 kV DC |
| Max. voltage | 6 kV DC |
| Max. current per contact | 27 A |
| Maximum current per contact | 27 A |
| Impedance | Not specified |
| Shield | Not specified |
| Plug connections | None |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Copper |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Diameter contact(s) | 1,3 mm |
| Diameter contact(s) | 0.051 ″ |
| Length contact(s), vacuum side | 46 mm |
| Length contact | 1.811 ″ |
| Outer diameter | 30 mm |
| Outer diameter | 1.181 ″ |
| Length | 102 mm |
| Length | 4.016 ″ |
| Length 2 | 56 mm |
| Length 2 | 2.205 ″ |
| Length 3 | 25 mm |
| Length 3 | 0.984 ″ |
| Purity class | PCS |
