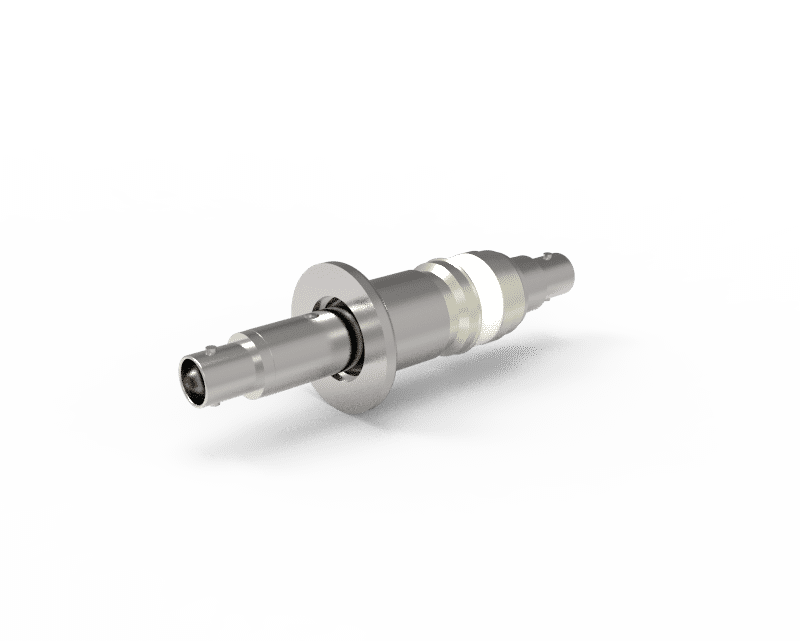

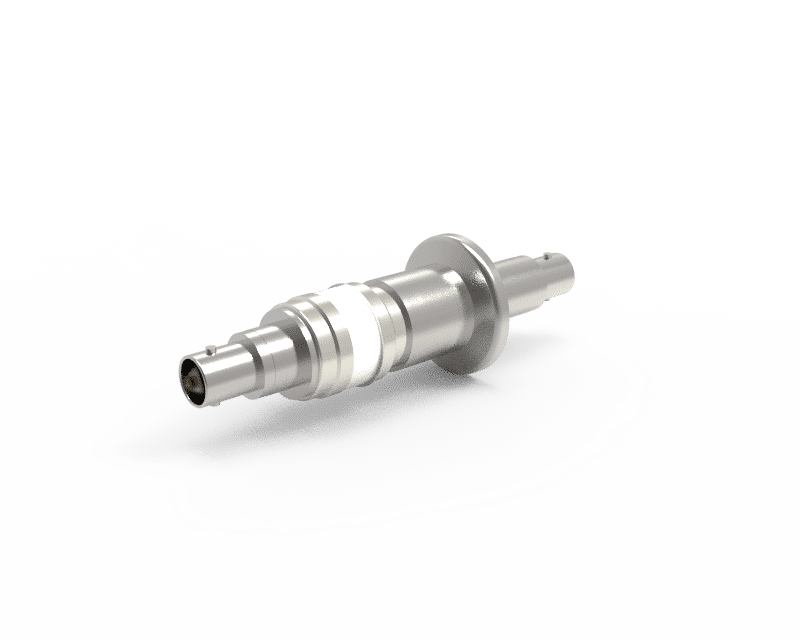

KF16-BNC-FS-DE-CE-SS BNC, floating shield BNC, floating shield
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | BNC, floating shield |
|---|---|
| Bakeout temperature | 842 °F |
| Max. bakeout temperature | 450 °C |
| Article no. | 301640 |
| Connection type | KF |
| Nominal diameter | 16 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 1 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Voltage contact shield | 0,5 kV DC |
| Maximum voltage shield/ground [kV DC] | 2,5 kV DC |
| Voltage shield ground | 2.5 kV DC |
| Max. current per contact | 3,6 A |
| Maximum current per contact | 3.6 A |
| Impedance | Not matched |
| Shield | Floating |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless steel 304L |
| Material insulation | Alumina ceramic |
| Material contact(s) | Stainless steel 304 |
| Magnetic | Yes |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 450 °C |
| Max. operating temperature | 842 °F |
| Outer diameter | 30 mm |
| Outer diameter | 1.181 ″ |
| Diameter | 20,8 mm |
| Diameter | 0.819 ″ |
| Diameter 2 | 12,7 mm |
| Diameter 2 | 0.5 ″ |
| Length | 64,6 mm |
| Length | 2.543 ″ |
| Length 2 | 32,1 mm |
| Length 2 | 1.264 ″ |
| Purity class | PCS |
