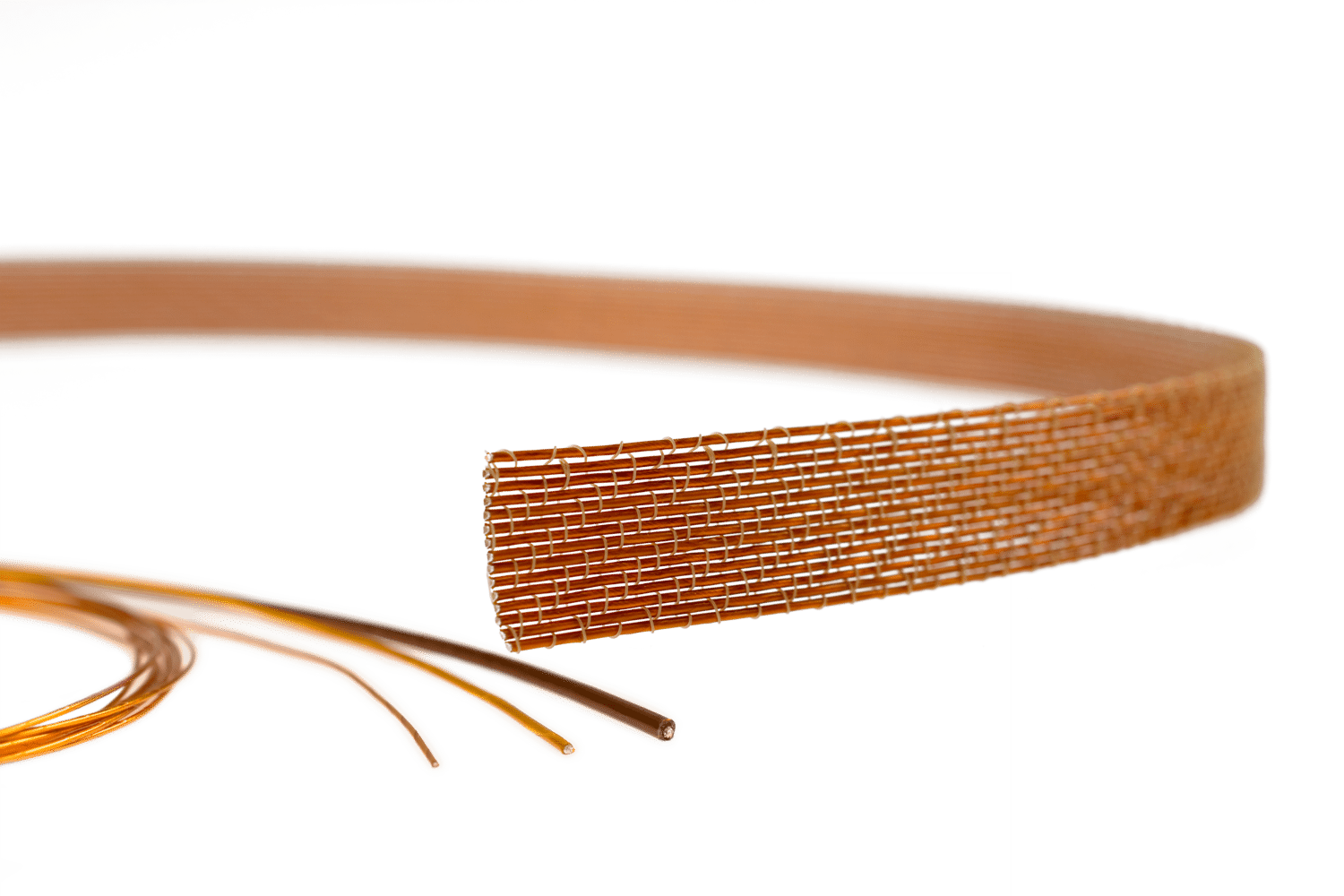

KAP-BAND-L-AWG20-HV30 High Voltage Cables High Voltage Cables
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Polyimide-insulated cable, high voltage cable |
|---|---|
| Bakeout temperature | 482 °F |
| Max. bakeout temperature | 250 °C |
| Wire type | stranded wire |
| Wire size (mm²) | 0.75 mm² |
| Wire size (AWG) | 20 |
| Cable type | high voltage |
| Article no. | 413920 |
| Number of contacts | 1 |
| Max. voltage | 30 kV DC |
| Max. voltage | 30 kV DC |
| Max. current per contact | 8 A |
| Maximum current per contact | 8 A |
| Impedance | Not specified |
| Plug connections | Not specified |
| Magnetic | No |
| Min. operating temperature | -75 °C |
| Min. operating temperature | -103 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Diameter contact(s) | 1 mm |
| Diameter contact(s) | 0.039 ″ |
| Outer diameter | 2,3 mm |
| Outer diameter | 0.091 ″ |
| Purity class | PCS |
