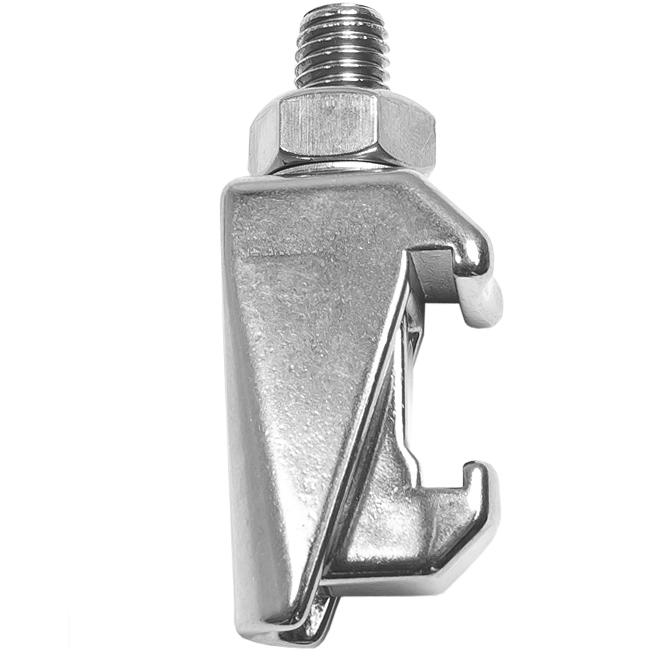

ISO-K Double Claw Clamp for ISO-K 320, 400 and 500, fits ISO-320K thru ISO-500K Vacuum Flanges, M12-1.75 Bolt, 304L Stainless Steel
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

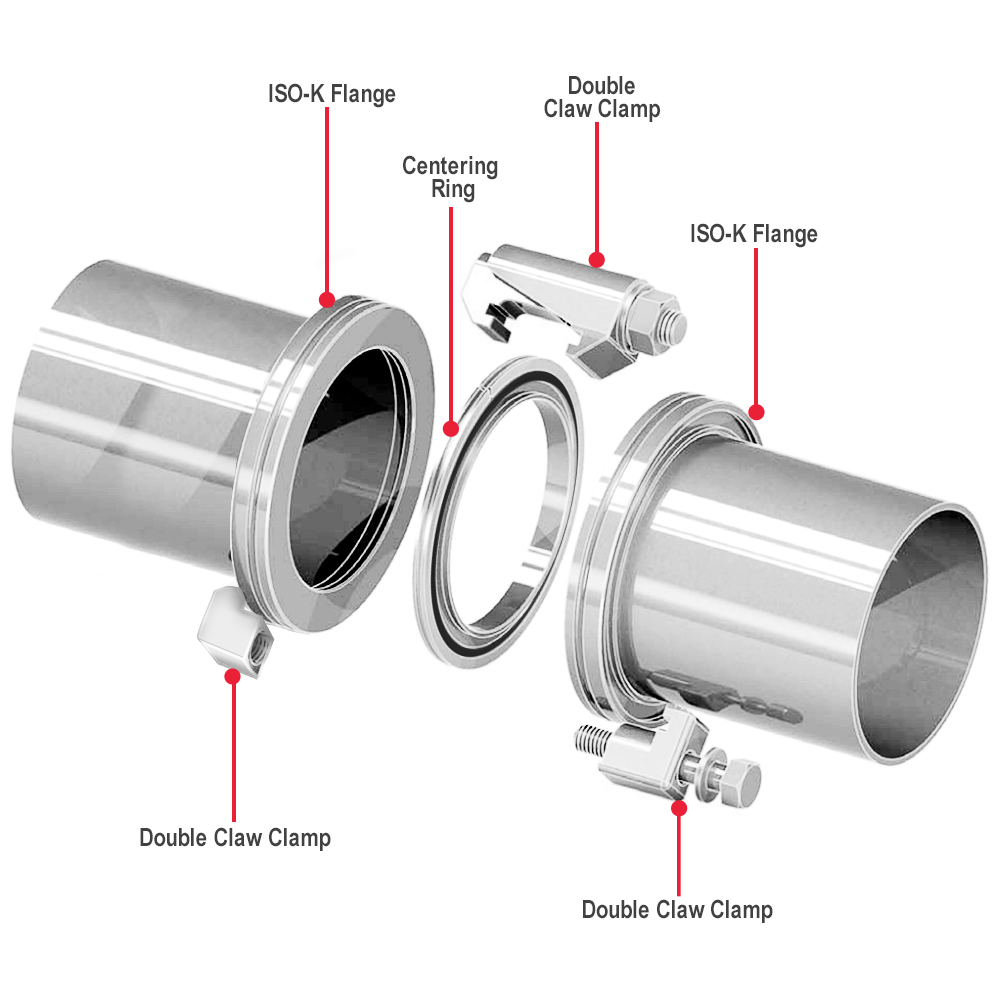

These double claw clamps, made of 304L Stainless Steel, fit ISO-320K thru ISO-500K vacuum flanges and follow vacuum technology standards described in DIN 28404 and ISO 1609. The ISO-K style fittings are quick to assemble using claw clamps (please see figure - click to enlarge) and can be connected in any orientation. The claw clamp hooks into a ridged groove in the back side of the ISO-K vacuum flange. A centering ring that contains rubber, elastomeric, O-ring used to form the vacuum seal between the two flange faces. The clamps are commonly used to build process vacuum plumbing and systems for industrial vacuum applications. The ISO standard sizes for large LF flanges are ISO-LF DN 63, 80, 100, 160, 200, 250, 320, 400, 500, 630, 800, and 1000. These double claw clamps are made of corrosive resistant 304L stainless steel and work with flange sizes ISO-LF 350, 400, and 500. The quantity of clamps required per flange size is given below.
Quantity Required per Flange
ISO-320: 12
ISO-400: 16
ISO-500: 16
Specifications:
M12-1.75 Bolt
Torque to 7-10 lb-ft
Use Wrench: 19 mm
ISO-K Double Claw Clamp for ISO-K 320, 400 and 500, fits ISO-320K thru ISO-500K Vacuum Flanges, M12-1.75 Bolt, 304L Stainless Steel.

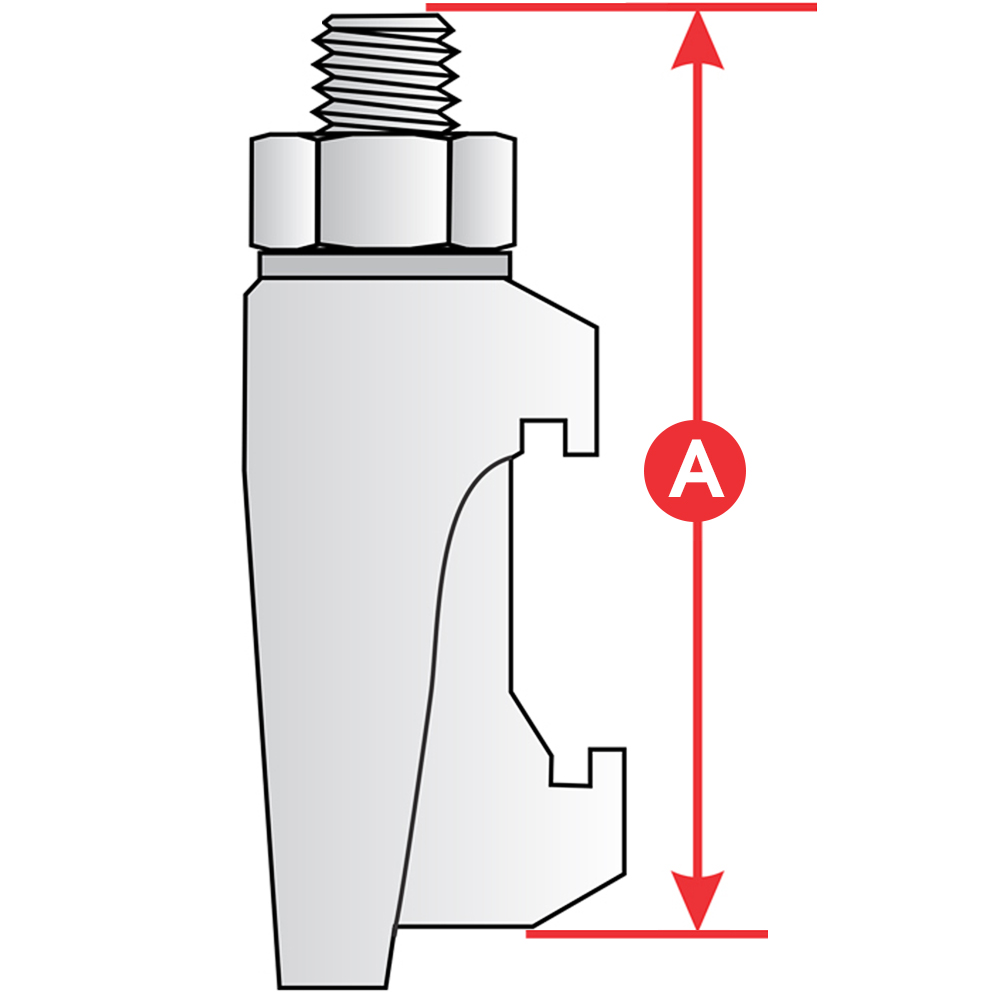

Common Dimensions:
A = 3.01" (76.5mm)
