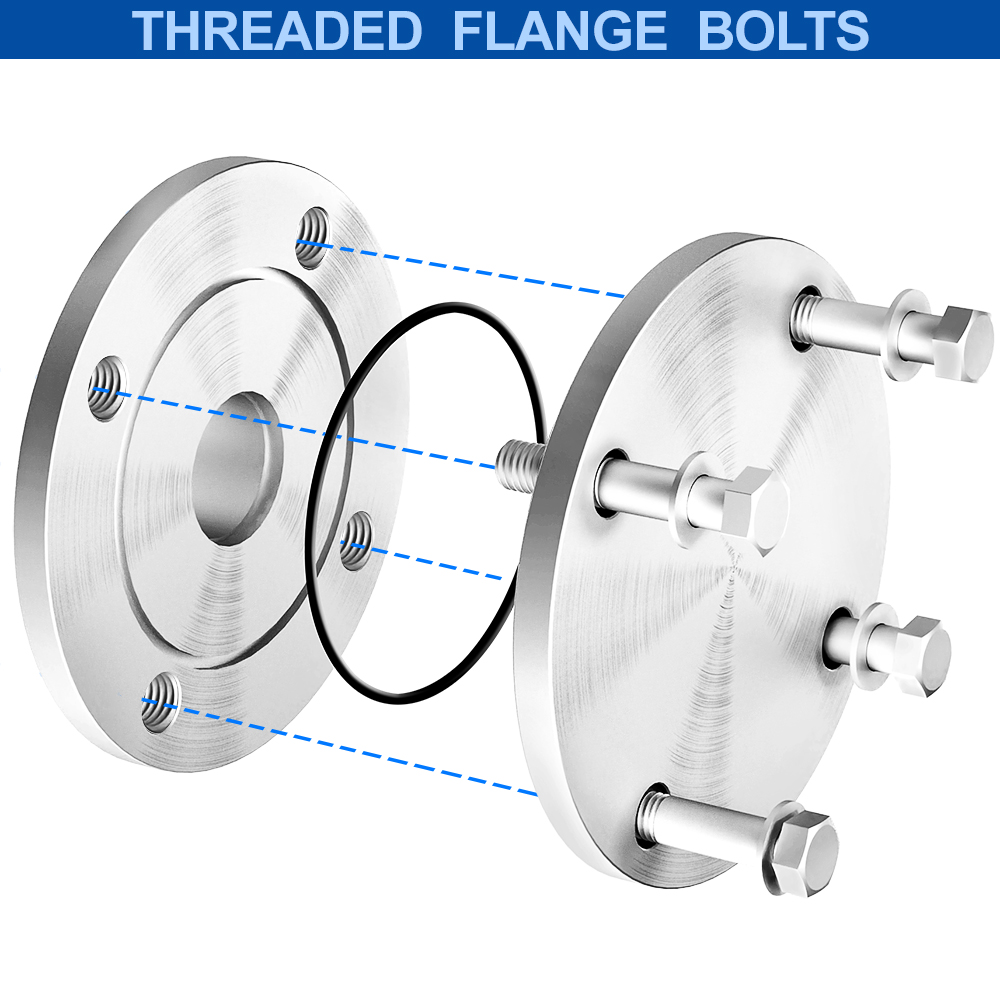

These bolts are for tapped threaded hole flanges and follow ISO-LF standards for flange sizes of NW-400 and NW-500. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.

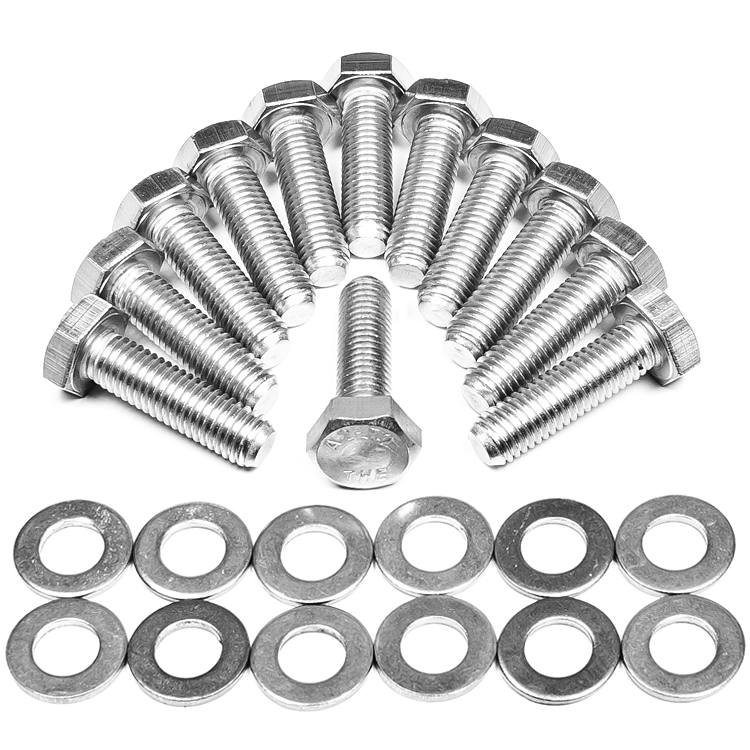

Bolts, for Tapped Threaded Holes, NW-400 and NW-500 Vacuum Flanges, Stainless Steel, Quantity of 16
ISO-LF Flange Size: NW-400 and NW-500
Quantity: 16 bolts include washers

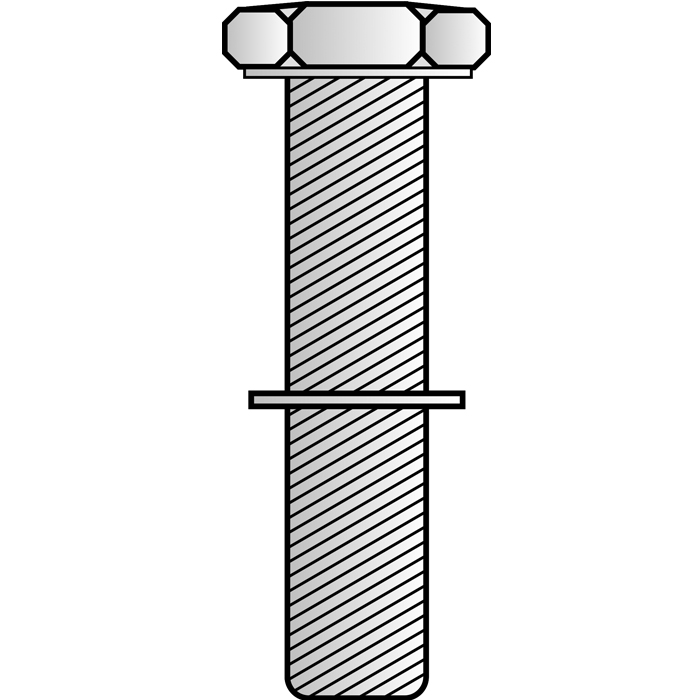

Common Dimensions: Bolt Size M12 x 60 x 1.75mm Pitch
