ISO-F DN 160, 200, 250 Bolt, for Tapped Bulkhead Weld-On Vacuum Flange, Metric M10 x 30 mm Long Bolts, 1.5 mm Pitch, 304 Stainless Steel, Silver Plated
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

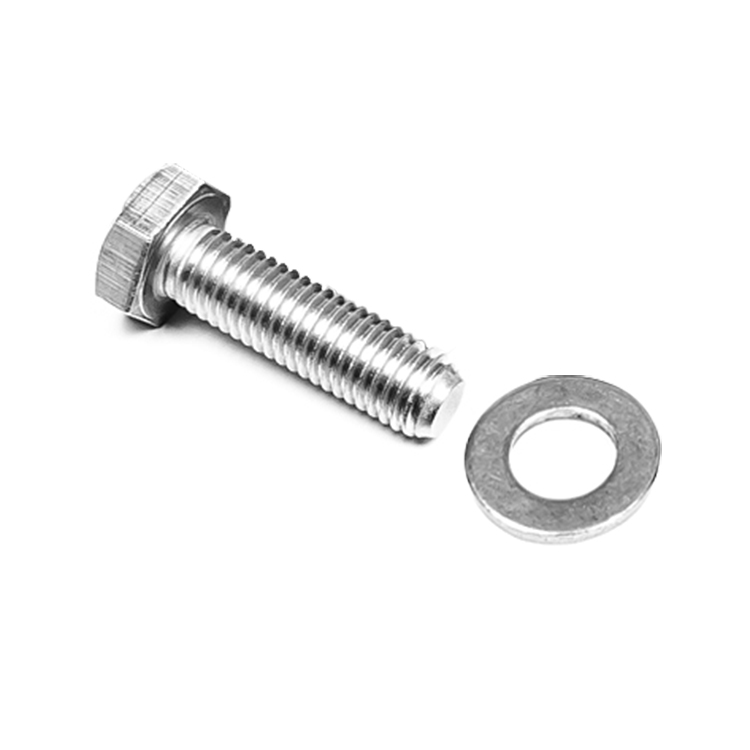

Sold As One Each, One Bolt and One Washer

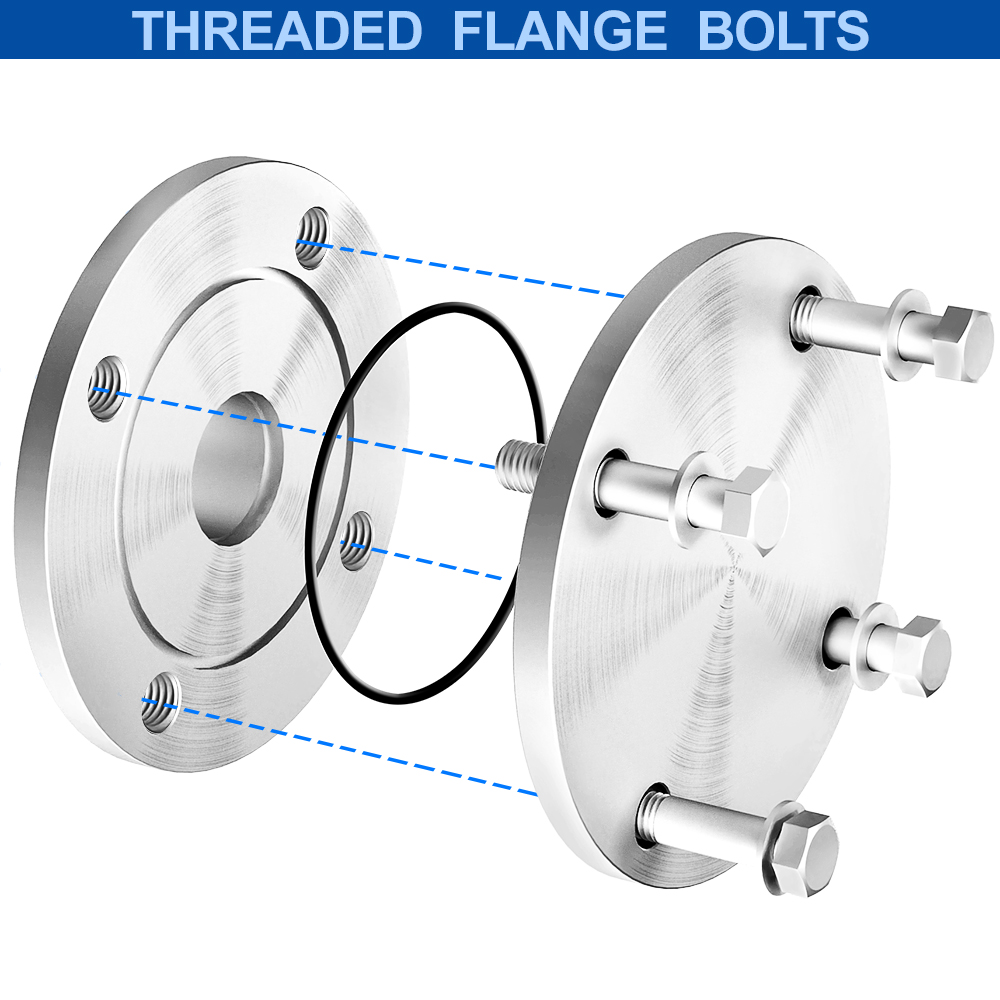

These bolts are for tapped threaded hole flanges and follow ISO-LF standards for flange sizes of NW-160, NW-200, NW-250. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630, NW-800, NW-1000. These vacuum fittings are made of corrosive resistant 304 stainless steel.

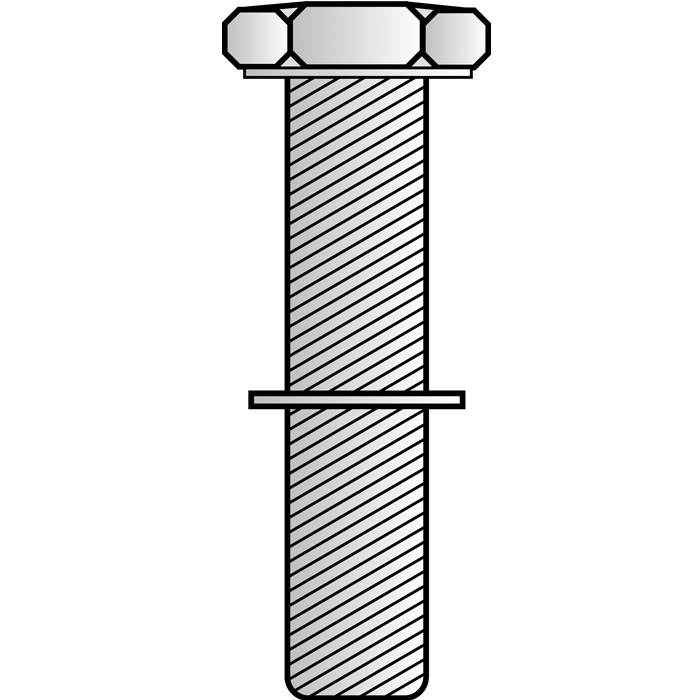

Bolt And Washer, for Tapped Threaded Hole NW-160, NW-200, NW-250, Vacuum Flanges, Stainless Steel
Fits ISO-LF Bulkhead Flange Size: NW-160, NW-200, NW-250
Sold as Quantity: 1 Bolt And 1 Washer
Bolt Quantity Required:
- ISO-160: Needs 8 Each
- ISO-200: Needs 12 Each
- ISO-250: Needs 12 Each
Common Dimensions: Bolt Size M10X30 Pitch 1.5mm
