Inficon PSG050 Pasive Gauge Heads for Vacuum Gauge Controller VGC012 or VGC023, KF16. PN: 399-500.

Write a review
$65449
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

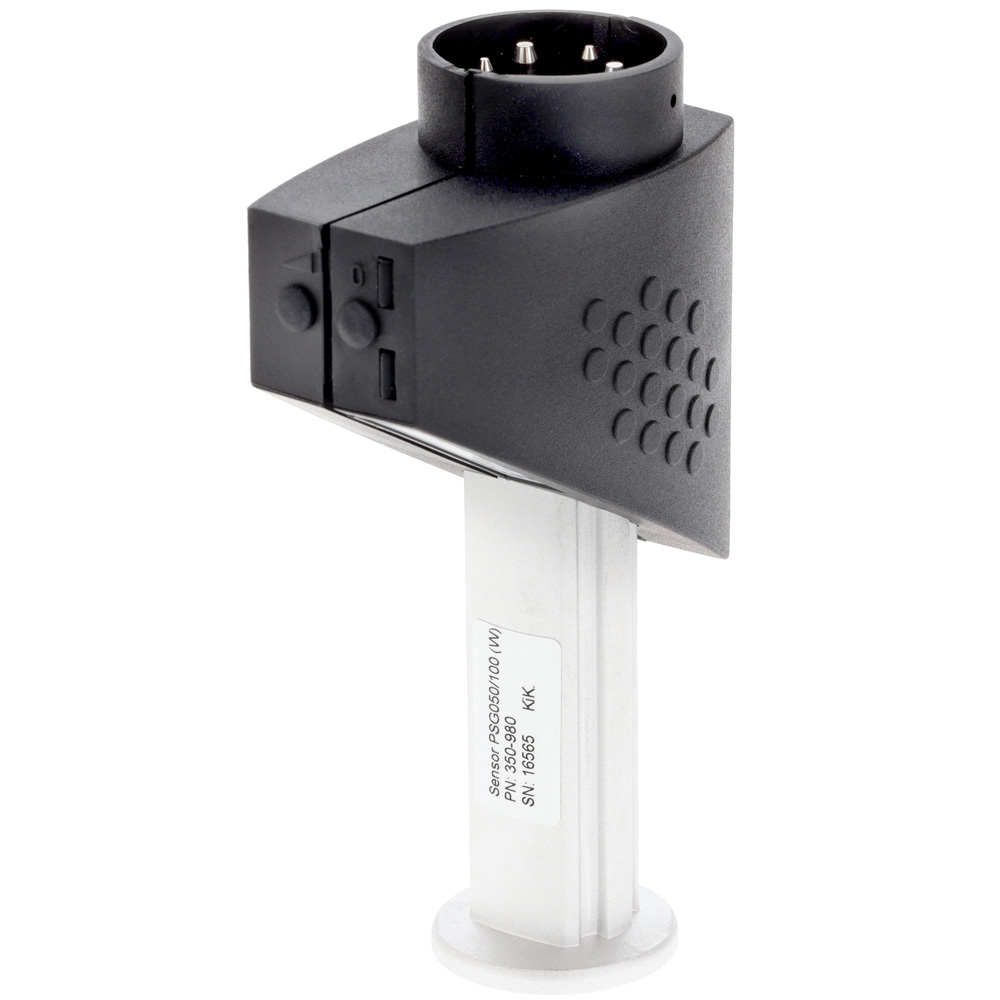

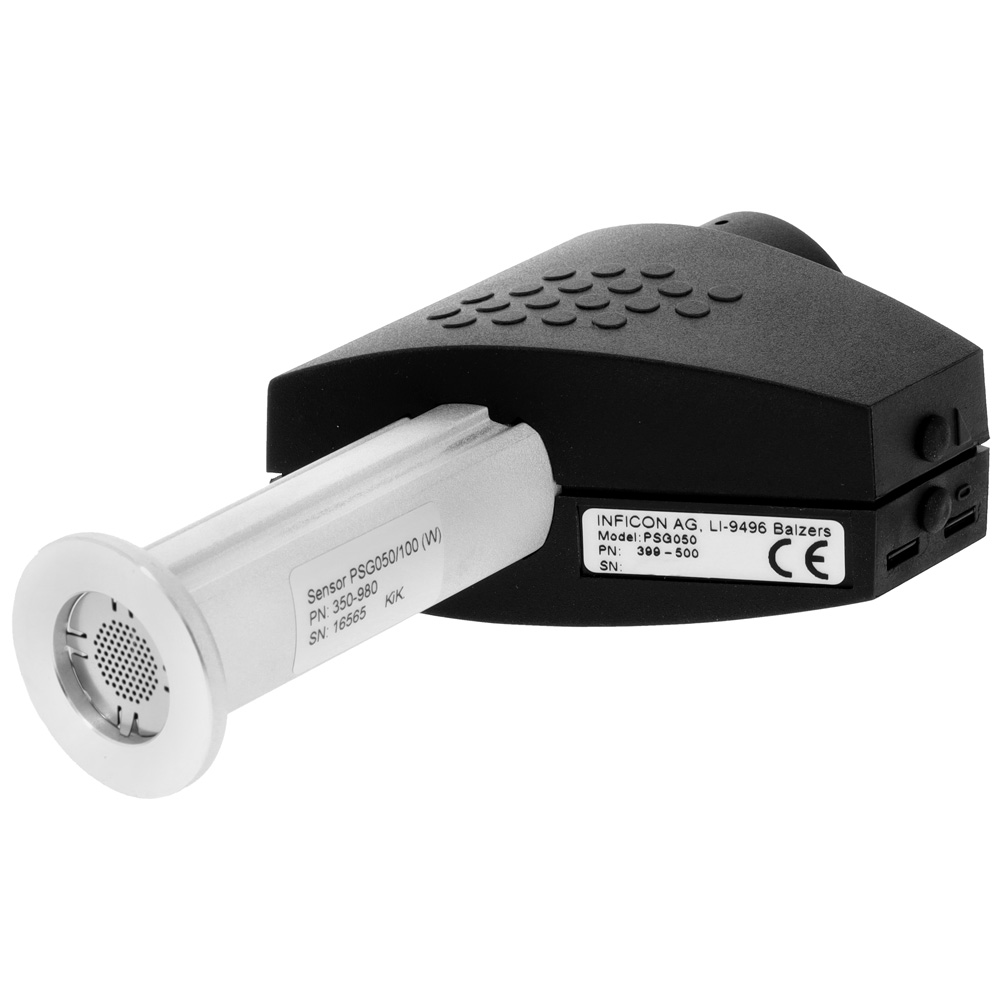

Inficon PSG050 Pirani Standard Wide-Range Gauge Intended for the use with the Vacuum Gauge Controller VGC012 or VGC023, KF16. Inficon Part Number: 399-500.

The PSG050 wide-range Pirani standard gauge head is used for the measurement of absolute pressures in the rough and fine vacuum range. This gauge has a measurement range of 0.5 x 10e-3 to 10e3 mbar (3.7 x 10-4 to 750 Torr). It employs a tungsten filament sensing element operating at a temperature of 110°C.

These Pirani standard gauges are operated by the Inficon VGC012 and VGC023 control units.

Inficon-PSG050-51-DataSheet.pdf (Inficon-PSG050-51-DataSheet.pdf, 119 Kb) [Download]

InfiCon-PSG50-51-Pirani-Standard-Gauge-OpMan.pdf (InfiCon-PSG50-51-Pirani-Standard-Gauge-OpMan.pdf, 620 Kb) [Download]

Ideal-Vacuum-Company-Image_med.pdf (Ideal-Vacuum-Company-Image_med.pdf, 7,973 Kb) [Download]
