Inficon BPG 402SE Bayard-Alpert Pirani Combination UHV Gauge, 2 filaments, DN40CFR CF 2.75 in, D Sub 15 pin, EtherCAT
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

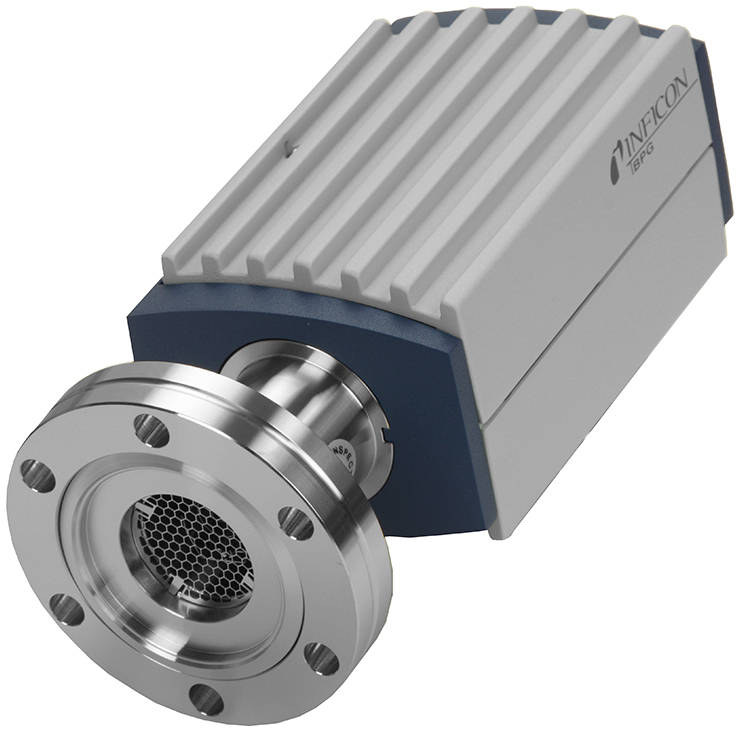

This is a Inficon Pirani Combination Ultra High Vacuum Gauge BPG402SE. The Inficon Bayard-Alpert Pirani Combination Gauge, BPG402-SE,
functions as two gauges in a single compact unit. Combining
technologies reduces the complexity of installation, setup, and
integration. The BPG402-SE has two yttrium oxide coated iridium
filaments for affordable and repeatable process to base pressure
measurements in one economical package. Sensing elements with onboard
calibration data guarantees high reproducibility when exchanging

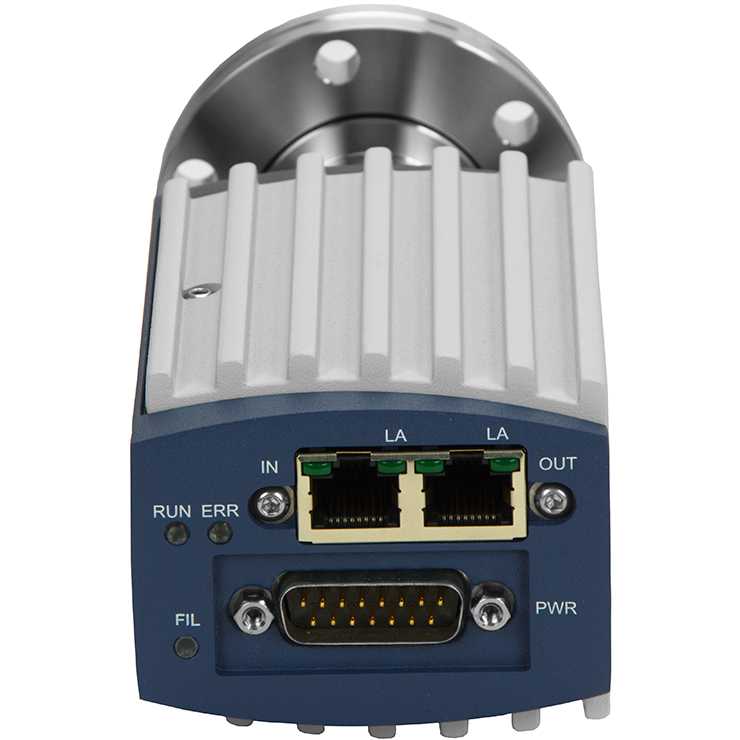

sensors.This Gauge has a D Sub 15 pin Connector and a 0.774 - 10V Measurement Range with EtherCAT Interface. This Gauge has a Pressure Measurement Range of 5×10-10 mbar to atmosphere (3.8×10-10 Torr to atmosphere).
This Inficon BPG 402SE Combination Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector and EtherCAT Interface. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.
For complete specifications of the BPG 402SE Gauge see the Brochure .pdf and for complete Operation Instructions see the Instruction Manual .pdf, both at the side of this ad in Downloads.
This Inficon BPG 402SE Combination Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper INFICON signal cable. This gauge has a D-Sub15-pin Connector and EtherCAT Interface. The gauge is intended for operation in connection with an INFICON Vacuum Gauge Controller VCG401, 402, 403 or with another suitable controller.
For complete specifications of the BPG 402SE Gauge see the Brochure .pdf and for complete Operation Instructions see the Instruction Manual .pdf, both at the side of this ad in Downloads.
