Inficon PN: 350-927

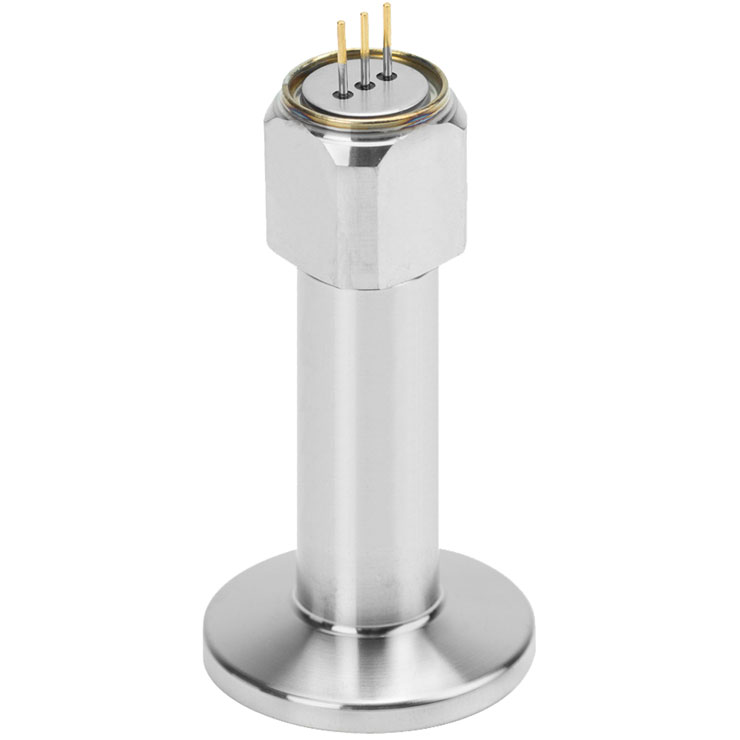

This Inficon PSG500 replacement stainless steel sensor with tungsten filament, metal feedthrough and NW-KF-16 extended body replaces the sensor cell in any PSG500 digital Pirani standard gauge. Use it as a spare, replacement or to change the fitting connection of any PSG500 series gauge.

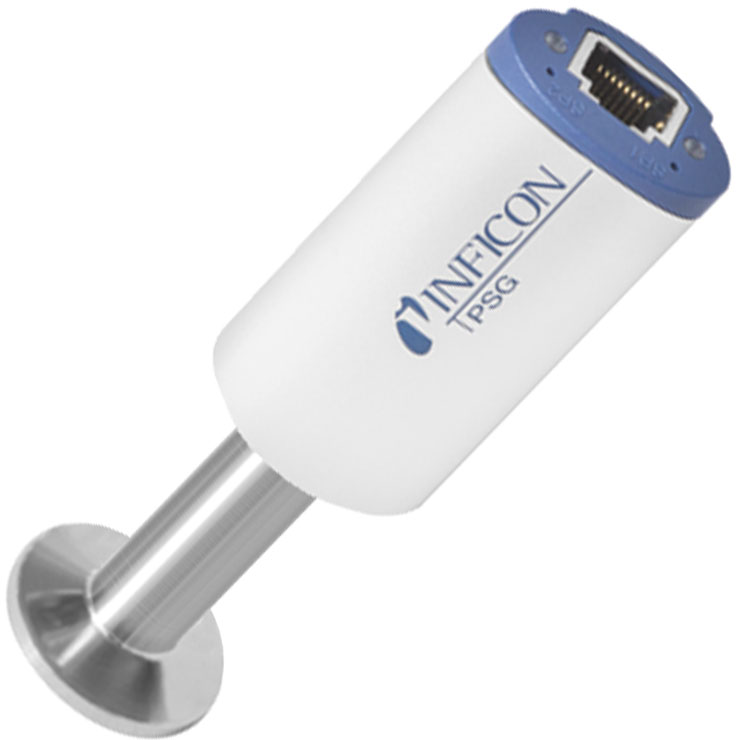

The Inficon PSG5xx series gauges feature a compact, streamlined design, with a rugged aluminum housing and replaceable stainless steel sensor cell, qualifying them for use on semiconductor systems and for standard applications, such as forelines.
Measurement range (air, 02, CO, N2) is 5 x 10-4 to 1000mbar (3.75 x 10-4 to 750 Torr). One tactile switch for ATM and HV makes adjustments simple.
PSG500 series gauges can mount in any orientation and logarithmic signal output through the RJ-45 connector makes integration easy.
The Inficon PSG5xx series digital Pirani standard gauges can be used with Inficon VGC501, VGC502 and VGC503 pressure gauge controllers and require a separate signal cable (P104428).
The Inficon PSG5xx series gauges feature a compact, streamlined design, with a rugged aluminum housing and replaceable stainless steel sensor cell, qualifying them for use on semiconductor systems and for standard applications, such as forelines.
Measurement range (air, 02, CO, N2) is 5 x 10-4 to 1000mbar (3.75 x 10-4 to 750 Torr). One tactile switch for ATM and HV makes adjustments simple.
PSG500 series gauges can mount in any orientation and logarithmic signal output through the RJ-45 connector makes integration easy.
The Inficon PSG5xx series digital Pirani standard gauges can be used with Inficon VGC501, VGC502 and VGC503 pressure gauge controllers and require a separate signal cable (P104428).
