Inficon 350-300 PSG512-S Digital Pirani Standard Gauge, NW-KF-16, Nickel Filament, Ceramic Feedthrough for Very Corrosive Applications, 2 Setpoints
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Inficon PN: 350-300

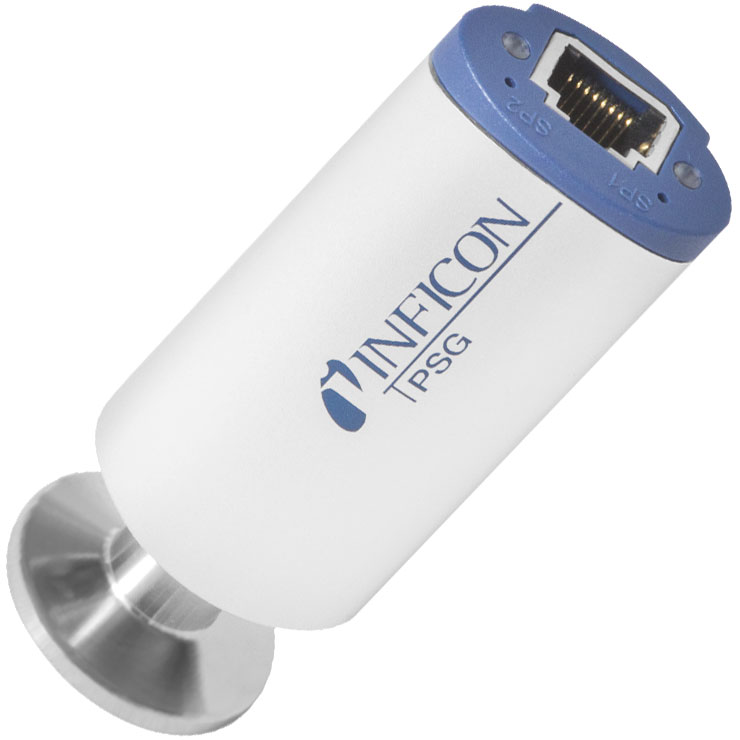

This Inficon PSG512-S digital Pirani standard gauge has an NW-KF-16 flanged mount, 2 setpoints and stainless steel measuring cell with Nickel filament and ceramic feedthrough, intended for extremely corrosive applications.
The Inficon PSG5xx series gauges feature a compact, streamlined design, with a rugged aluminum housing and replaceable stainless steel sensor cell, qualifying them for use on semiconductor systems and for standard applications, such as forelines.
Measurement range (air, 02, CO, N2) is 5 x 10-4 to 1000mbar (3.75 x 10-4 to 750 Torr). One tactile switch for ATM and HV makes adjustments simple.
PSG500 series gauges can mount in any orientation and logarithmic signal output through the RJ-45 connector makes integration easy.

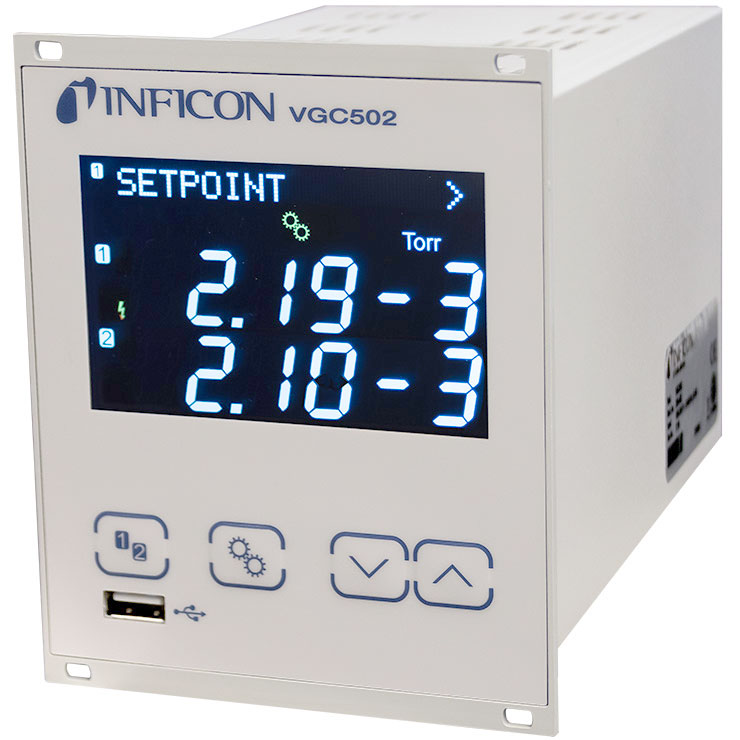

The Inficon PSG5xx series digital Pirani standard gauges can be used with Inficon VGC501, VGC502 and VGC503 pressure gauge controllers and require a separate signal cable (P104428).
The Inficon PSG5xx series gauges feature a compact, streamlined design, with a rugged aluminum housing and replaceable stainless steel sensor cell, qualifying them for use on semiconductor systems and for standard applications, such as forelines.
Measurement range (air, 02, CO, N2) is 5 x 10-4 to 1000mbar (3.75 x 10-4 to 750 Torr). One tactile switch for ATM and HV makes adjustments simple.
PSG500 series gauges can mount in any orientation and logarithmic signal output through the RJ-45 connector makes integration easy.
The Inficon PSG5xx series digital Pirani standard gauges can be used with Inficon VGC501, VGC502 and VGC503 pressure gauge controllers and require a separate signal cable (P104428).
Dimensions:
- OAL: 85.3 mm (3.36 in)
- Width: 32.8 mm (1.29 in.)
