Includes: Power Cable Only
This is the power cable for the ideal vacuum Dual Capacitance Manometer Controller (DCM). It is a C13 to 5-15P cable and 8 feet long.

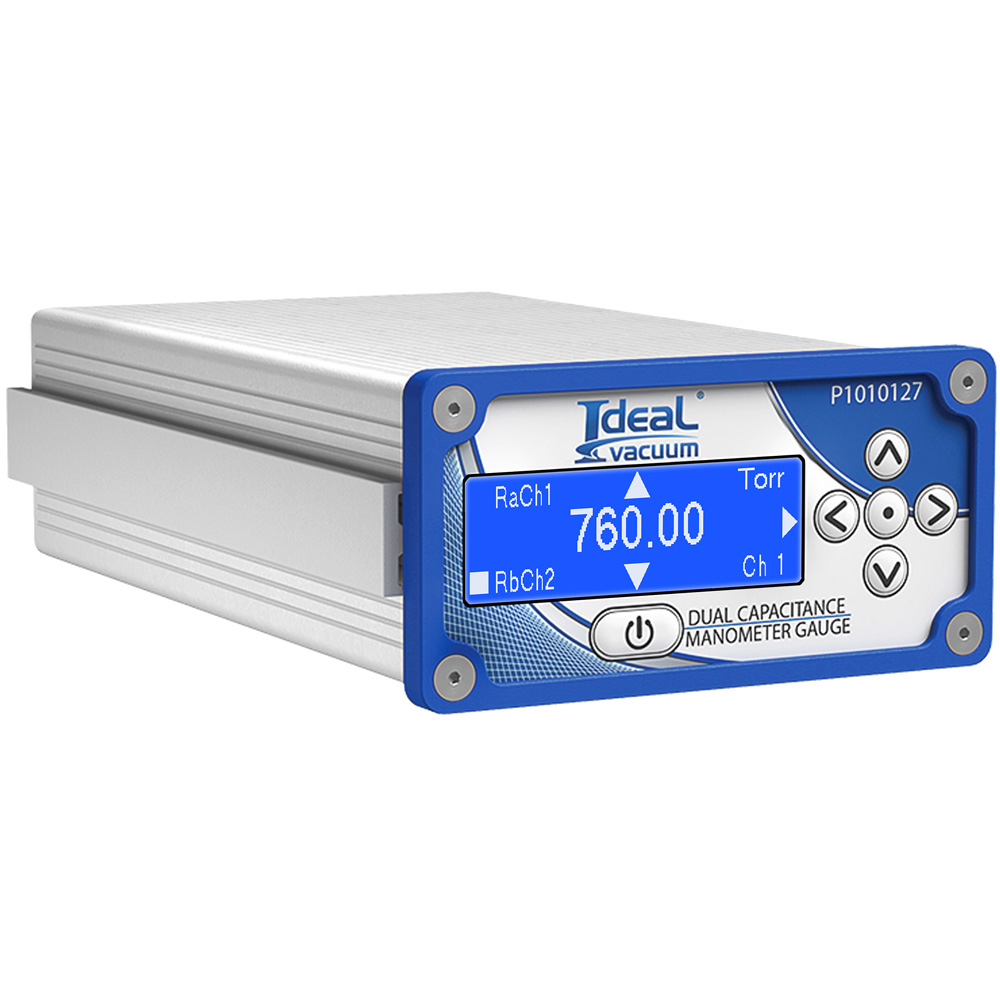

The Dual Capacitance Manometer Gauge Reader and Controller from Ideal Vacuum Products is a simple, intuitive, and low cost way to interface with Capacitance Diaphram Gauges (CDG). The DCM can interface with two gaugesand is able to supply the necessary dual polarity, ±15 VDC, with a current of up to 1 Amp, required for many CDGs. Each channel has a programmable setpoint that controls a relay when the setpoint is reached. This automates many tasks such as turning on a turbomecular pump when the roughing pump has reduced the pressure to an appropriate range or actuating a valve.
The DCM can read a variety of CDG ranges including: 20 mTorr, 50 mTorr, 0.1 Torr, 1 Torr, 2 Torr, 10 Torr, 100 Torr, 1,000 Torr, 5,000 Torr, and 10,000 Torr capacitance gauges. The DCM allows the user to choose from their preferred pressure units. These settings can be set through the easy to use local interface which features a brilliant LCD screen for easy reading.

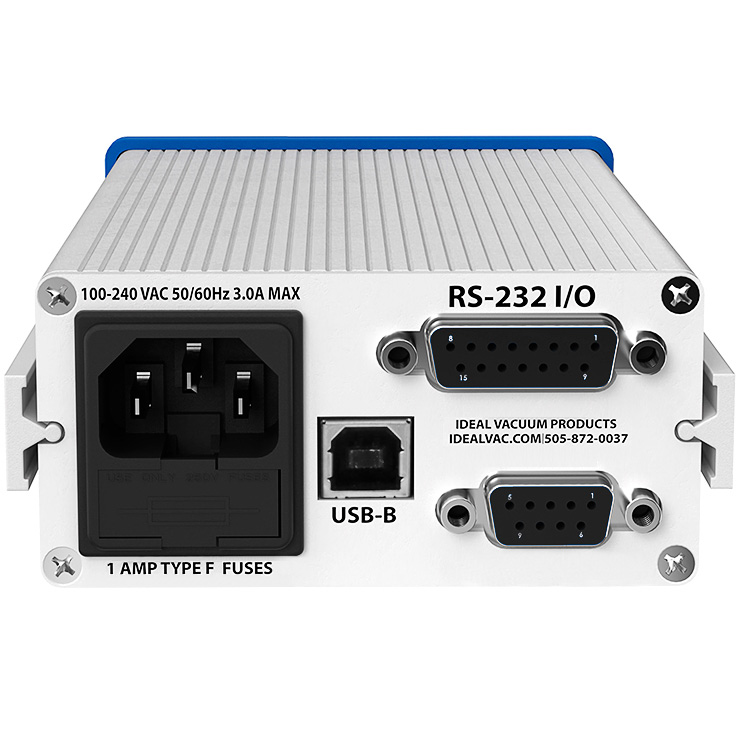

The Dual Capacitance Manometer can also be used remotely through serial commands via the DB9 or USB ports. This allows for ease of data collection and integration into a vacuum system.
The Dual Capacitance Manometer Gauge Reader and Controller from Ideal Vacuum Products is a simple, intuitive, and low cost way to interface with Capacitance Diaphram Gauges (CDG). The DCM can interface with two gaugesand is able to supply the necessary dual polarity, ±15 VDC, with a current of up to 1 Amp, required for many CDGs. Each channel has a programmable setpoint that controls a relay when the setpoint is reached. This automates many tasks such as turning on a turbomecular pump when the roughing pump has reduced the pressure to an appropriate range or actuating a valve.
The DCM can read a variety of CDG ranges including: 20 mTorr, 50 mTorr, 0.1 Torr, 1 Torr, 2 Torr, 10 Torr, 100 Torr, 1,000 Torr, 5,000 Torr, and 10,000 Torr capacitance gauges. The DCM allows the user to choose from their preferred pressure units. These settings can be set through the easy to use local interface which features a brilliant LCD screen for easy reading.
The Dual Capacitance Manometer can also be used remotely through serial commands via the DB9 or USB ports. This allows for ease of data collection and integration into a vacuum system.
-
The Dual Capacitance Manometer is compatible with the Baratron™ Absolute Capacitance Manometer from MKS including:
- MKS 626B 0.1 Torr - P103249
- MKS 626B 1 Torr - P103250
- MKS 626B 10 Torr - P103251
- MKS 626B 100 Torr - P104361
- MKS 626B 1000 Torr - P104362
- MKS 626C 10 Torr - P108076
- MKS 626C 1000 Torr - P109768
- MKS 626C 100 Torr - P109769
