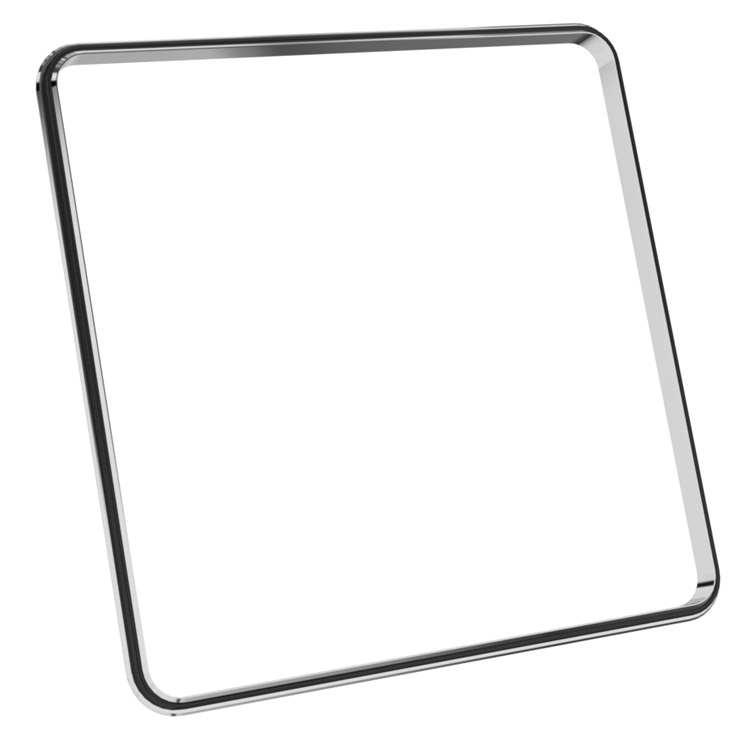

This is a replacement 6061-T6 aluminum, 12 x 12" Cube frame coupler with O-ring seals only. This replacement frame coupler is part of the Cube frame coupling kit (P1012248) that allows two 12 x 12 Cube frames to be tightly joined face-to-face without any intermediate plumbing or fittings.

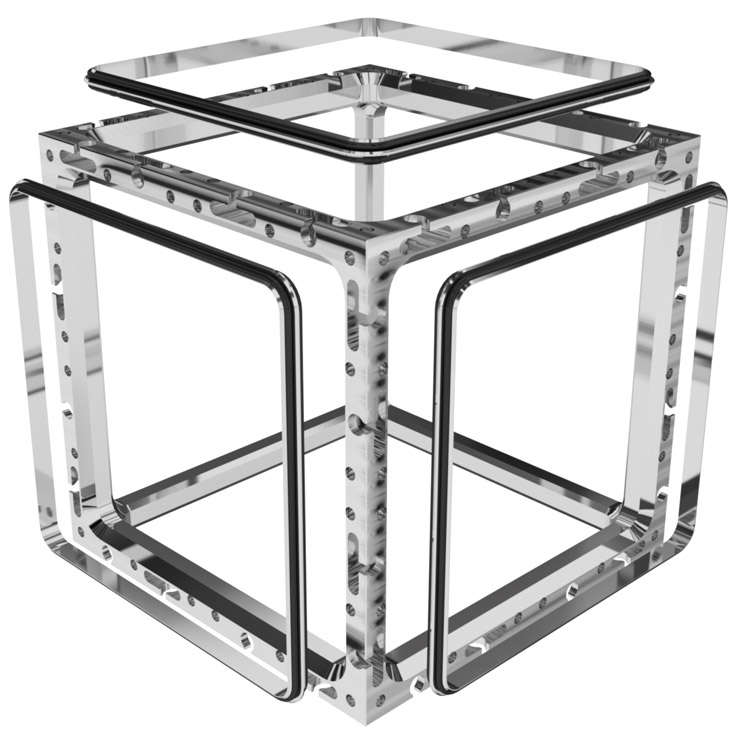

The complete coupling kit consists of this 6061-T6 aluminum Cube frame coupler with two O-rings, and several 304L stainless steel barrel type, coupling draw bolts (P107292). The frame coupler is sandwiched between the two Cube frames and acts just like a flange centering ring. The coupler makes the seal between the two Cube frames and uses the patented Ideal Vacuum Taper-Seal™ design. The draw bolts rigidly clamp the two Cube frames together.
Same sized Cube faces can be coupled. For example, a 12 x 12 x 12” Cube frame can be directly coupled to a 12 x 12 x 12” frame or a 6 x 12 x 12” frame, as long as they are coupled on the 12 x 12” side.
The number of chamber configurations possible with Cube coupling kits is virtually limitless. Long, odd-shaped, and multi-Cube chambers are easy to construct with this accessory.
Please download the Cube coupling kit user manual for installation instructions.
Features:
The complete coupling kit consists of this 6061-T6 aluminum Cube frame coupler with two O-rings, and several 304L stainless steel barrel type, coupling draw bolts (P107292). The frame coupler is sandwiched between the two Cube frames and acts just like a flange centering ring. The coupler makes the seal between the two Cube frames and uses the patented Ideal Vacuum Taper-Seal™ design. The draw bolts rigidly clamp the two Cube frames together.
Same sized Cube faces can be coupled. For example, a 12 x 12 x 12” Cube frame can be directly coupled to a 12 x 12 x 12” frame or a 6 x 12 x 12” frame, as long as they are coupled on the 12 x 12” side.
The number of chamber configurations possible with Cube coupling kits is virtually limitless. Long, odd-shaped, and multi-Cube chambers are easy to construct with this accessory.
Please download the Cube coupling kit user manual for installation instructions.
Features:
- Replacement 12" x 12" frame coupler only
- Includes dual O-rings
- Eight draw bolts required for complete frame coupler kit
- 12 x 12 x 12
- 6 x 12 x 12
