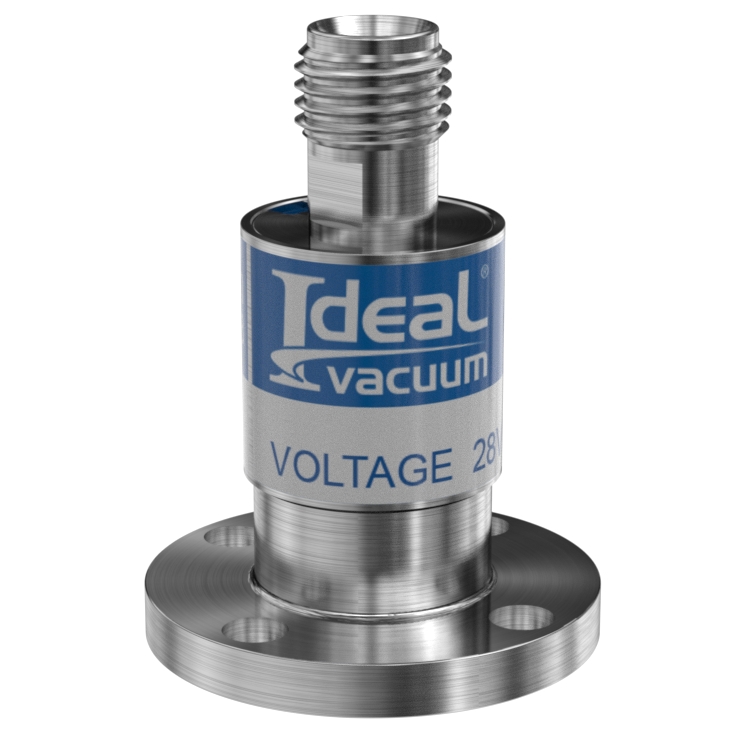

Ideal Vacuum High-Speed Pulsed Soleniod Valve, 0.031 in. Orifice, 28 V, Stainless Steel Body.

Write a review
$1,19974
On backorder
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
Ideal Vacuum High-Speed Pulsed Soleniod Valve, 0.031" Orifice, 28 VDC, PTFE Poppet Material, 1/4" Compression Fitting, Stainless Steel Body.
Compare with Parker Series 9 Valve, Parker Part Number: 009-0381-900.
This pulse valve is typically used for gas pulse generation for laser spectroscopy. High precision spectroscopic gas analysis requires exquisite flow control that is both quantifiable and repeatable. These solenoid valves offer very low cycling time and extremely low leak rates. The soleniod body is constructed of stainless steel, and the solenoid coil is potted and completely isolated from wet environments.

Ideal Vacuum's Pulse Valve is compatible with both Parker rebuild kits and Ideal Vacuum rebuild kits.

  • PTFE poppet material, Kalrez O-ring.
  • <2 ms cycling time (<160 µs with Iota One or Pulsar valve drivers).
  • Delivers repeatable pulses and high repetition rates.
  • Leak-tight to 1x10-7cm3/s/atm Helium.
  • Constructed of non-corroding, passivated stainless steel.

P61010774.sldprt (P61010774.sldprt, 434 Kb) [Download]

P61010774.step (P61010774.step, 526 Kb) [Download]

Parker_PulseValves2.pdf (Parker_PulseValves2.pdf, 821 Kb) [Download]

Parker_PulseValves2.pdf (Parker_PulseValves2.pdf, 821 Kb) [Download]

Parker_Instrumentation_Valves_Cat.pdf (Parker_Instrumentation_Valves_Cat.pdf, 2,238 Kb) [Download]

Ideal_Vacuum_SiCCl_published_paper.pdf (Ideal_Vacuum_SiCCl_published_paper.pdf, 1,239 Kb) [Download]

Ideal_Vacuum_SiCl3O_published_paper.pdf (Ideal_Vacuum_SiCl3O_published_paper.pdf, 2,520 Kb) [Download]

Ideal_Vacuum_SnHCl_published_paper.pdf (Ideal_Vacuum_SnHCl_published_paper.pdf, 4,747 Kb) [Download]
