KF-25 Vacuum Flanges, 115 VAC Input Power Required, Normally-Closed (NC)

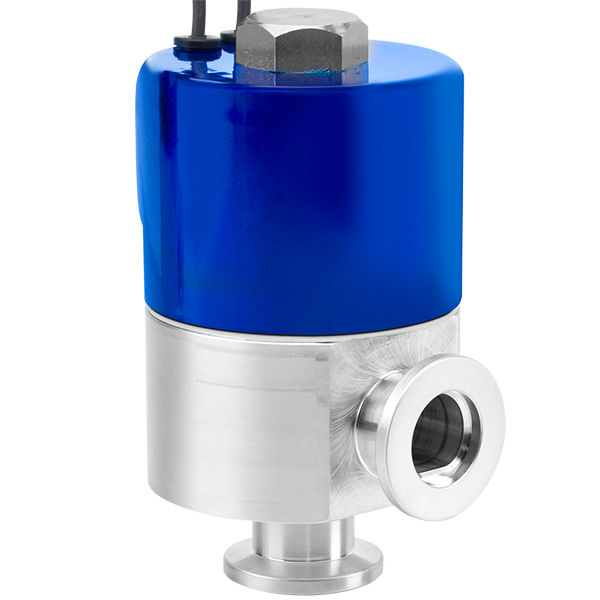

This listing is for the sale of our Ideal Vacuum ElectroMAG solenoid valve with a nickel-coated aluminum body, KF-25 inlet and outlet vacuum flanges, and a 115 VAC solenoid coil. These premium ElectroMAG series electromagnetic right-angle vacuum solenoid valves are designed to deliver superior conductance. They are easy to install, can be operated in any orientation, and vacuum can be applied to either of the two KF style quick vacuum flange connections.
ElectroMAG valves are offered in KF-16 and KF-25 sizes.and with 24 VDC or 115 VAC input voltages. They require 34W of power (1.4A @ 24 VDC, 0.3A @ 115 VAC) and are designed for continuous operation in the open position. These normally closed (NC) fast acting valves spring closed in < 25 msec when power is removed from the solenoid coil and can be used to help protect the vacuum system in the event of a power failure.
ElectroMAG series solenoid valves can be used in roughing and high-vacuum applications down to 10-8 Torr, are rated for 300,000 cycles in most applications, and have improved conductance for increased pumping speed and throughput. They are bakeable to 100°C with solenoid removed. Nickel-coated aluminum valve bodies have increased chemical resistance as compared to plain aluminum. The entire series of ElectroMAG valves are a stocked inventory item that typically ships the same day the order is placed.
NOTE: The normal continuous operating temperature of the ElectroMag solenoid (the blue top of the valve) can be as much as 105°C. Do not to touch the solenoid when energized.
ElectroMAG valves are offered in KF-16 and KF-25 sizes.and with 24 VDC or 115 VAC input voltages. They require 34W of power (1.4A @ 24 VDC, 0.3A @ 115 VAC) and are designed for continuous operation in the open position. These normally closed (NC) fast acting valves spring closed in < 25 msec when power is removed from the solenoid coil and can be used to help protect the vacuum system in the event of a power failure.
ElectroMAG series solenoid valves can be used in roughing and high-vacuum applications down to 10-8 Torr, are rated for 300,000 cycles in most applications, and have improved conductance for increased pumping speed and throughput. They are bakeable to 100°C with solenoid removed. Nickel-coated aluminum valve bodies have increased chemical resistance as compared to plain aluminum. The entire series of ElectroMAG valves are a stocked inventory item that typically ships the same day the order is placed.
NOTE: The normal continuous operating temperature of the ElectroMag solenoid (the blue top of the valve) can be as much as 105°C. Do not to touch the solenoid when energized.
|
