Ideal Vacuum Cube Plate Adapter Kit Top or Bottom 15 x 15 in. Octagonal to One Centered 9 x 9 in., Uncoated
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

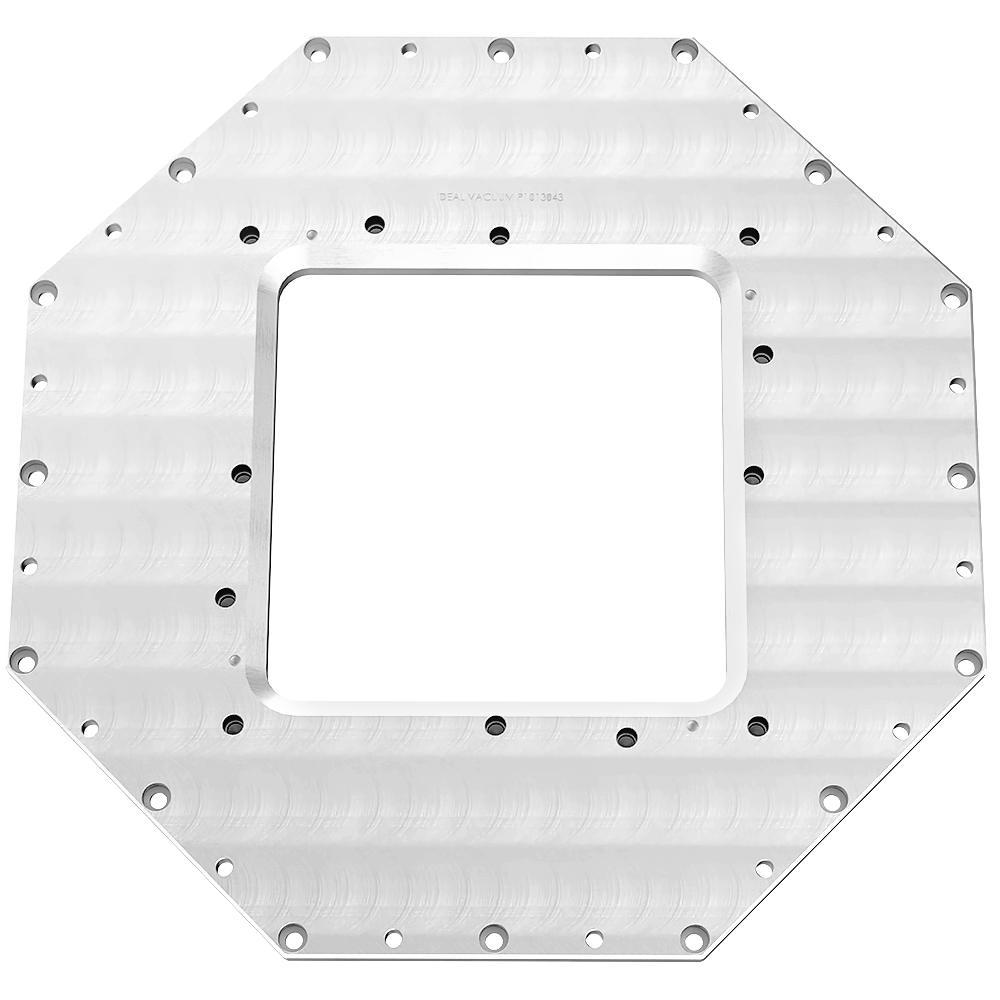

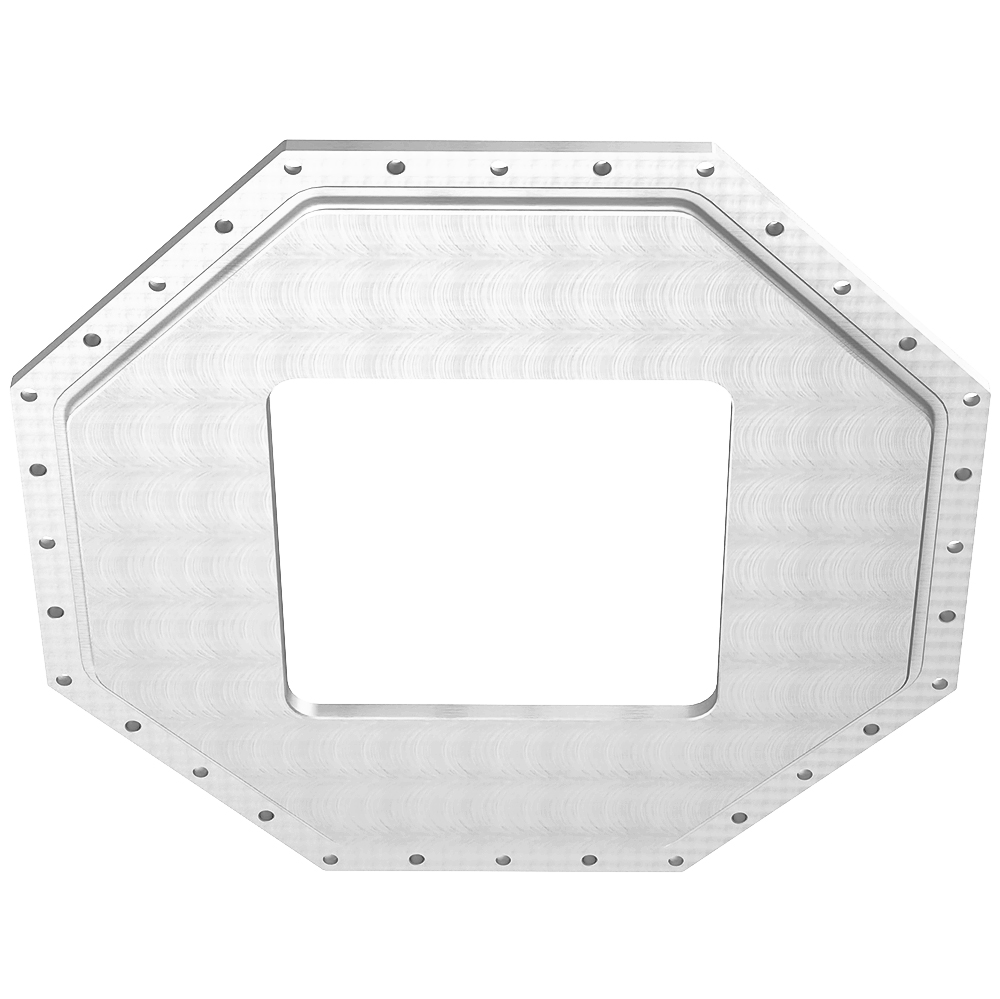

This is an uncoated Ideal Vacuum Cube adapter plate that converts a 15 x 15 octagonal top or bottom plate to one centered 9 x 9 inch opening. The 9 x 9" opening accepts any 9 x 9 Cube plate, greatly expanding porting options for pumping and feedthroughs, or viewing options. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
Kit includes:
Features:
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
Kit includes:
- 15 x 15 octagonal to one centered 9 x 9 adapter plate
- One Viton O-ring for 15 x 15 octagonal plate (P1013173)
- One Viton O-ring for 9 x 9 Cube plate (P1010490)
- Thirty-two 1/4"-20 x 5/16" long SHCS screws for plate mounting, P1013341 (includes 8 spares)
Features:

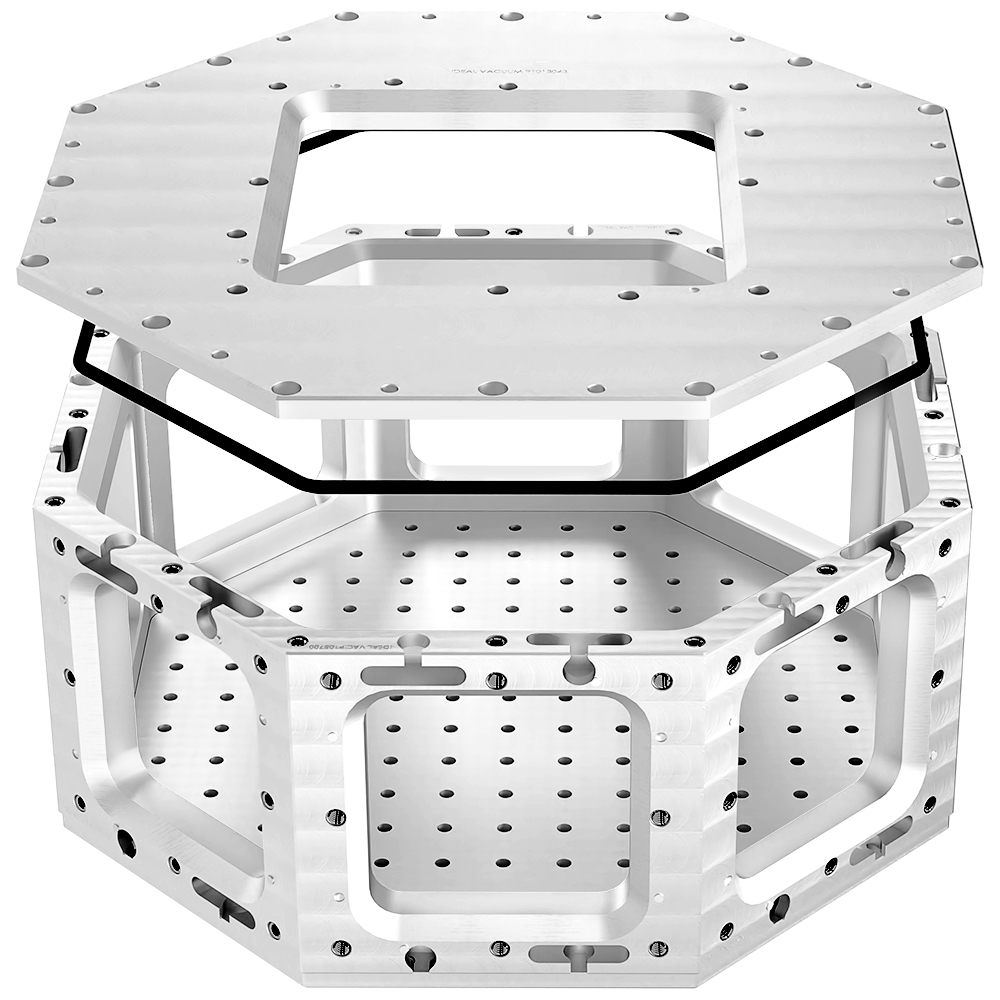

- Allows one 9 x 9 plate to attach to a 15 x 15 in. octagonal frame top or bottom plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- No internal optical breadboard
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
