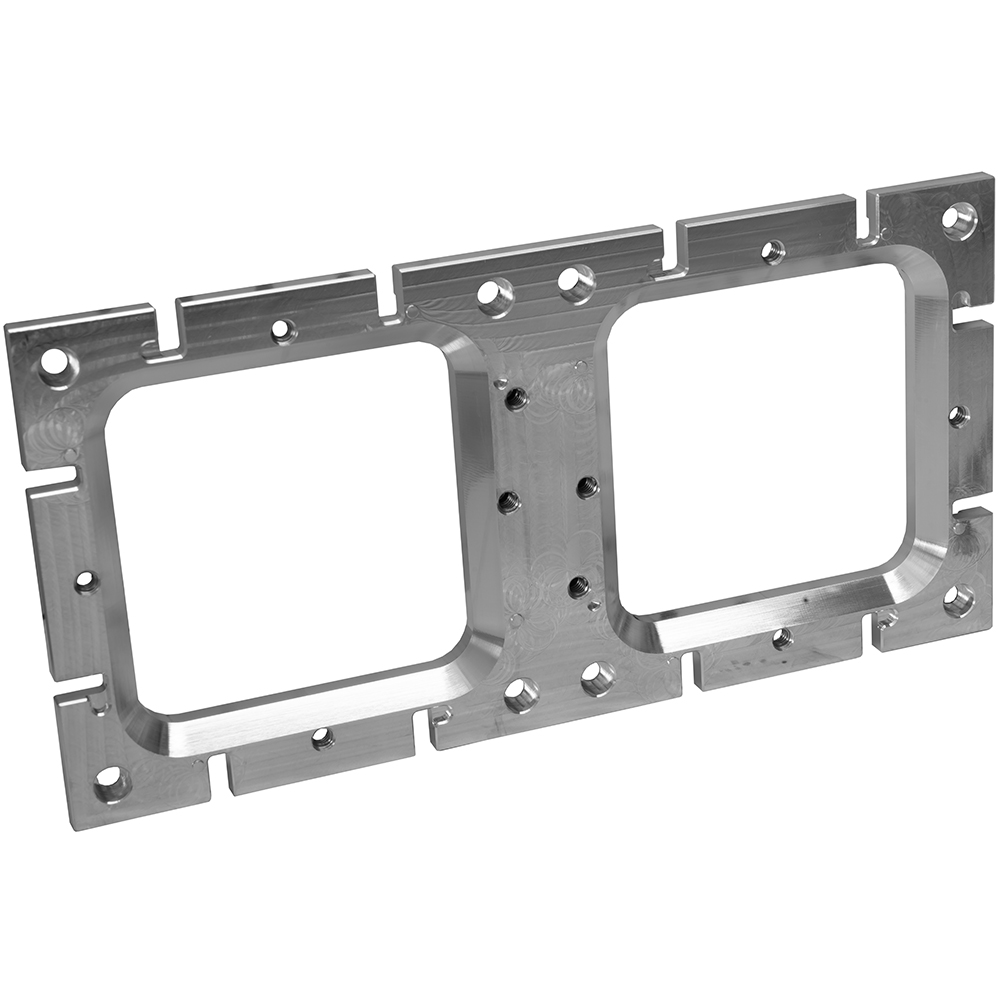

This is an uncoated Ideal Vacuum Cube adapter plate that converts a 6 x 12 Cube frame opening to two 6 x 6 inch opening. The 6 x 6" openings accept any 6 x 6 Cube plate, greatly expanding porting options for pumping and feedthroughs, or viewing options. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
Kit includes:
Features:
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.

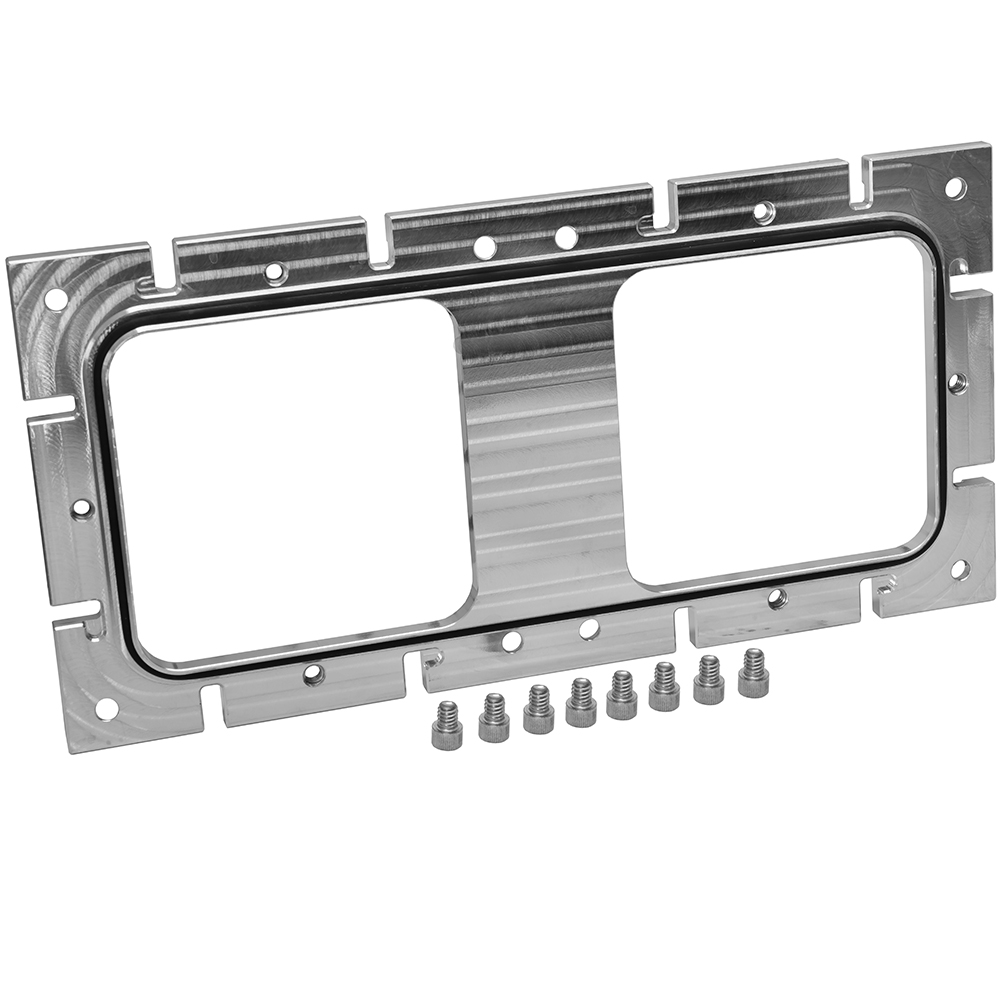

Kit includes:
- 6 x 12 to two 6 x 6 adapter plate
- One Viton O-ring for 6 x 12 Cube Plate (P108339)
- Two Viton O-ring for 6 x 6 Cube plate (P107295)
- Thirty-six 1/4"-20 x 5/16" long SHCS screws for plate mounting, P1013341 (includes 8 spares)
Features:
- Allows two 6 x 6 plates to attach to a 6 x 12 frame side
- Use on any 6" x 12" Cube frame side
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- No internal optical breadboard
- Mounts in any orientation
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
