Ideal Vacuum Cube Plate Adapter Kit 12 x 12 in. to Two 6 x 12 in., Uncoated
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Save 15%

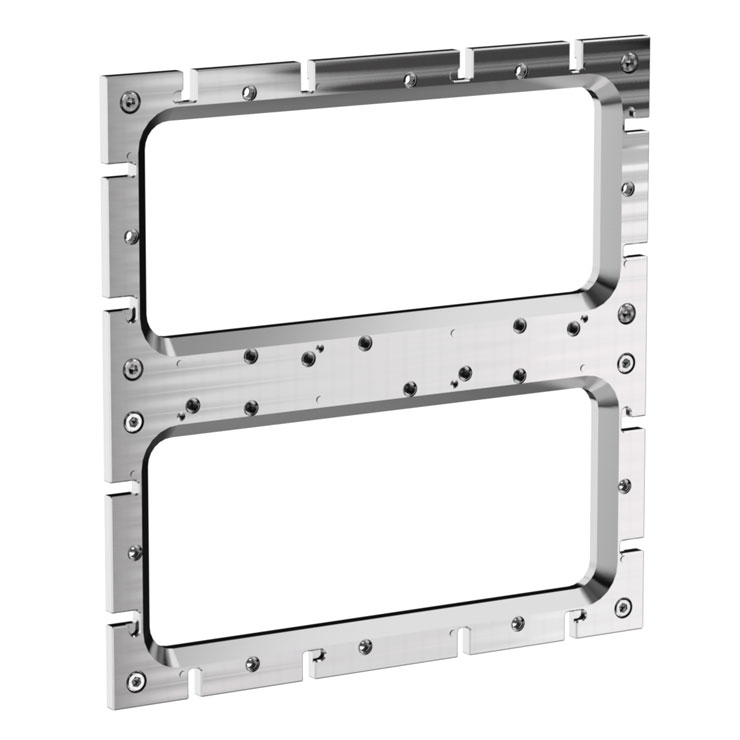

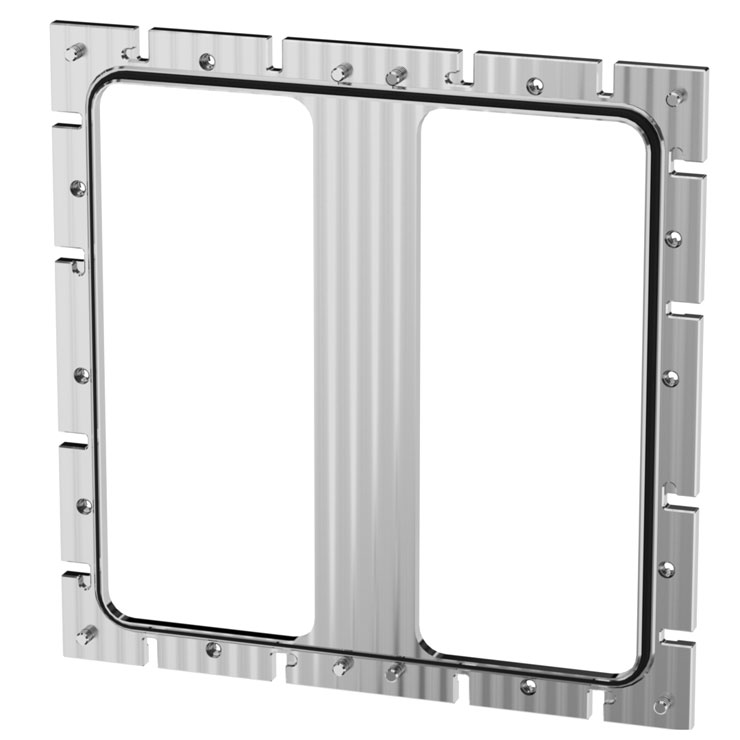

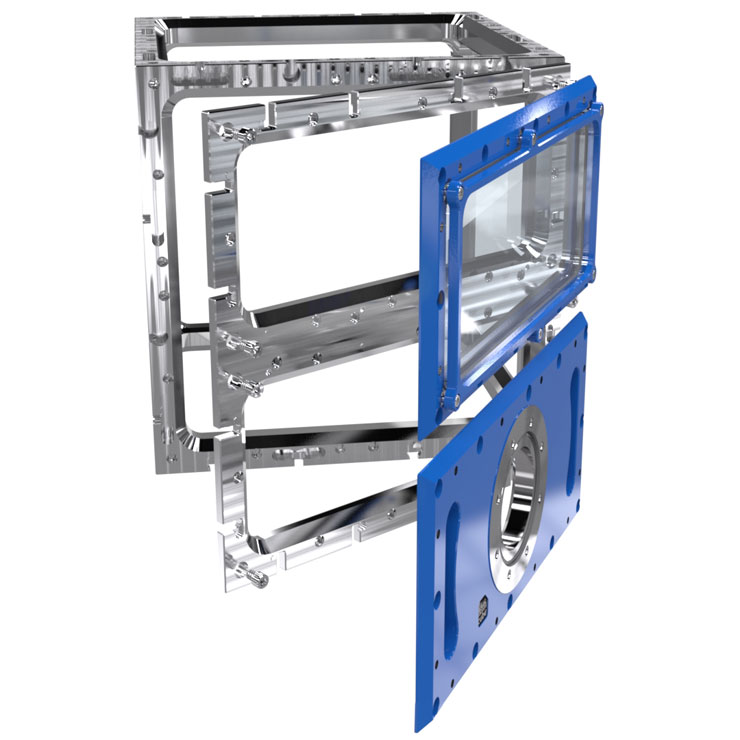

This is an uncoated Ideal Vacuum Cube adapter plate that converts a 12 x 12 Cube frame opening to two 6 x 12 inch openings. The 6 x 12" opening accepts any 6 x 12 Cube plate, greatly expanding porting options for pumping and feedthroughs, or viewing options. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
Note that this Cube adapter plate is thicker than other plates (to maintain plate rigidity) and therefore uses 1/2" long socket head cap screws for mounting to the 12" x 12" frame side. The 6 x 12 plates mount with the usual 1/4"-20 x 5/16" long screws.
Kit includes:
Features:
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
Note that this Cube adapter plate is thicker than other plates (to maintain plate rigidity) and therefore uses 1/2" long socket head cap screws for mounting to the 12" x 12" frame side. The 6 x 12 plates mount with the usual 1/4"-20 x 5/16" long screws.
Kit includes:
- 12 x 12 to two 6 x 12 adapter plate
- One Viton O-ring for 12 x 12 Cube Plate (P108428)
- Two Viton O-ring for 6 x 12 Cube plate (P108339)
- Sixteen 1/4"-20 x 1/2" long SHCS screws for mounting to 12 x 12" frame side, P1013343 (includes 8 spares)
- Twenty-four 1/4"-20 x 5/16" long SHCS screws for 6 x 12 plate mounting, P1013341 (includes 8 spares)
Features:
- Allows two 6 x 12 plates to attach to a 12 x 12 frame side
- Use on any 12" x 12" Cube frame side
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- No internal optical breadboard
- Mounts in any orientation
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
