Ideal Vacuum Cube Plate Adapter Kit 12 x 12 in. to One Centered 6 x 6 in. with Four KF-25 Ports, Uncoated with Internal Optical Breadboard
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

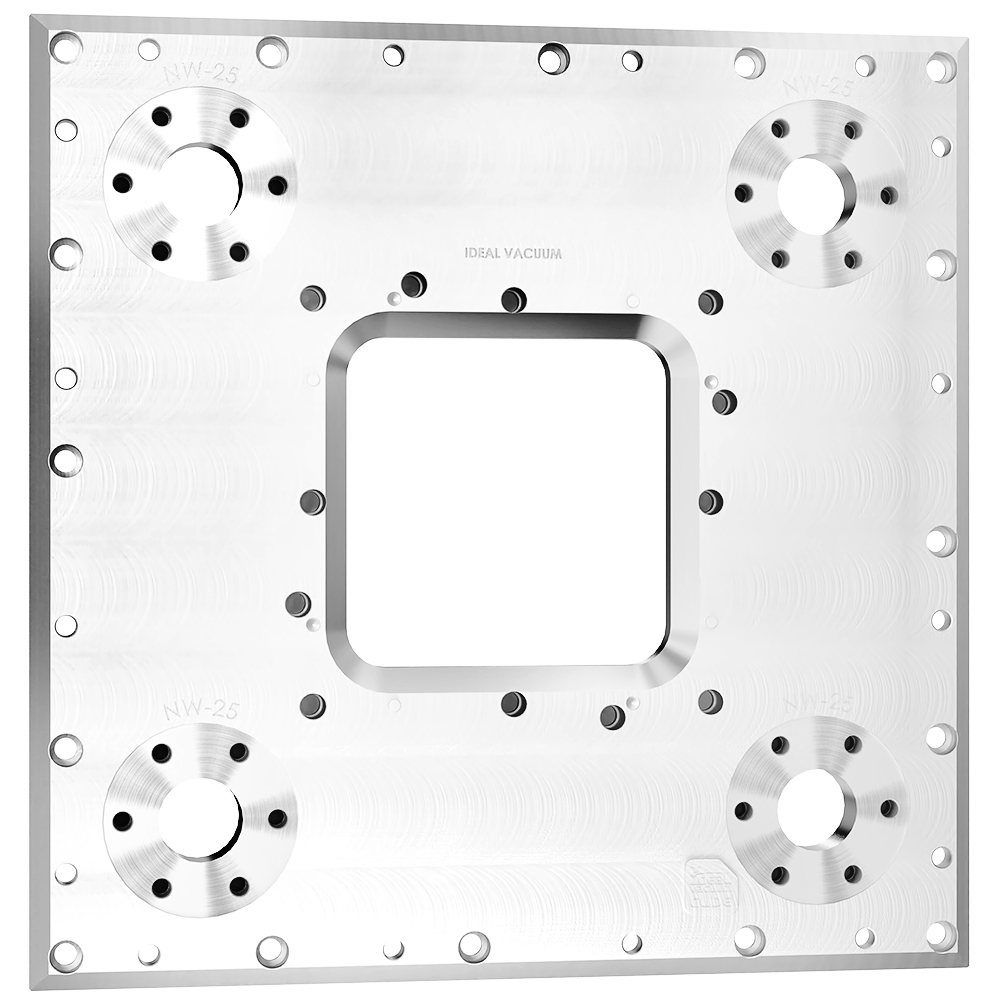

This is an uncoated Ideal Vacuum Cube adapter plate that converts a 12 x 12 Cube frame opening to a single, centered 6 x 6 inch opening. This adapter plate also has four KF-25 ports located in the corners of the plate. The 6 x 6 opening accepts any 6 x 6 Cube plate, greatly expanding porting options for pumping and feedthroughs, or viewing options. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
SInce a bulkhead KF fitting does not have a flange, the KF-25 ports on this adapter plate use KF bulkhead clamps and cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Kit includes:
Features:
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
SInce a bulkhead KF fitting does not have a flange, the KF-25 ports on this adapter plate use KF bulkhead clamps and cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Kit includes:
- 12 x 12 to 6 x 6 centered adapter plate
- One Viton O-ring for 12x12 Cube Plate (P108428)
- One Viton O-ring for 6 x 6 Cube plate (P107295)
- Eight 1/4"-20 x 5/16" long SHCS screws for 6 x 6 plate mounting (P1013341)
Features:
- Allows 6 x 6 plate to attach to center of 12 x 12 frame side
- Use on any 12" x 12" Cube frame side
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- Four KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings)
- Internal optical breadboard
- Mounts in any orientation
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit (P1010554) to assemble a Cube.
