Ideal Vacuum Cube Extra Long Barrel Type Coupling Draw Bolt for Coupling Cube Frames with a Plate Adapter In Between.

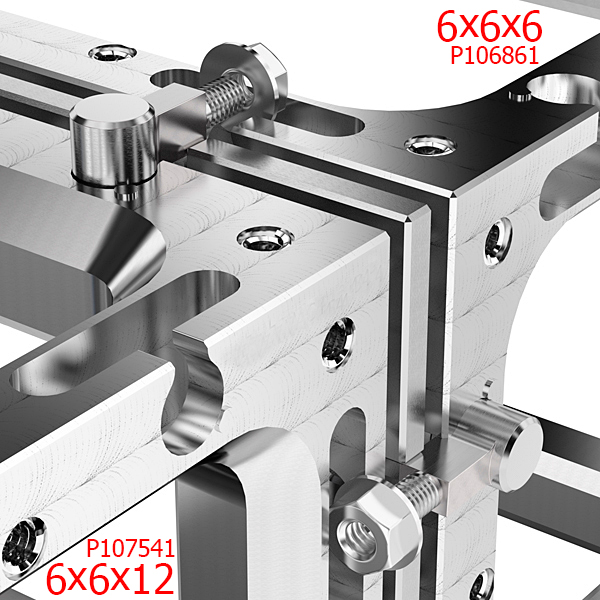

Extra Long Ideal Vacuum Cube barrel type coupling draw bolts are used to join the frames of two Cubes when there is a plate adapter between them. A quantity of at least four draw bolts are needed to join two 6 x 6 x 6 Cubes. Larger Cube sizes require more draw bolts.

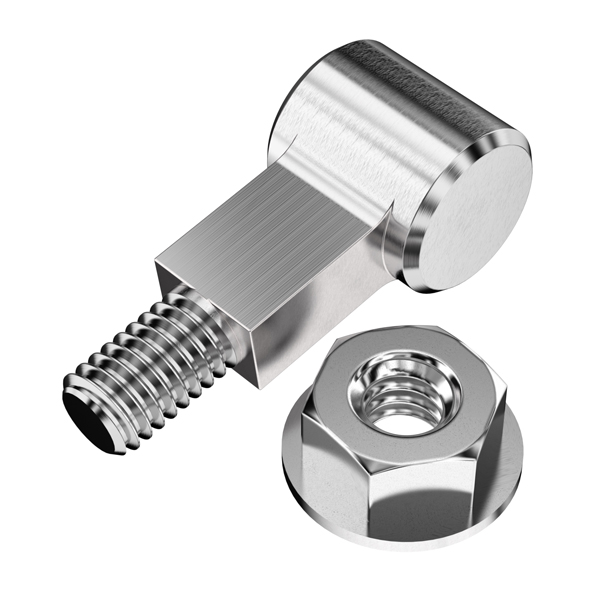

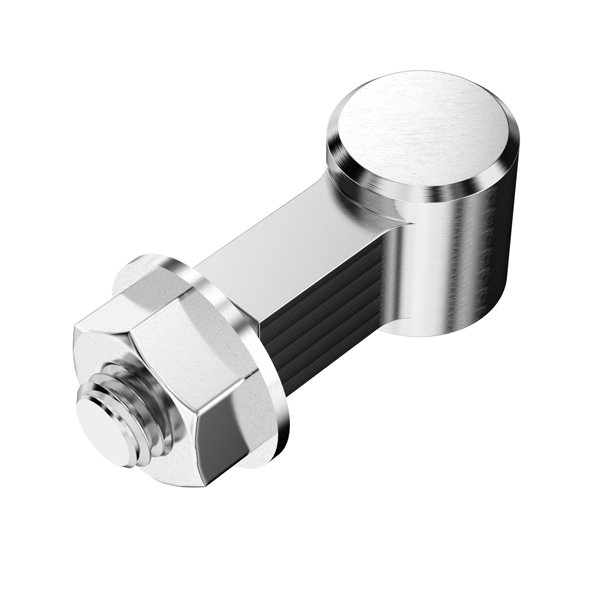

This is a quantity of 1 extra long draw bolt with nut and made of 304L stainless steel.

P6108235.sldprt (P6108235.sldprt, 208 Kb) [Download]

P6108235.step (P6108235.step, 177 Kb) [Download]

IVP_Cube_Coupling_Kit_User_Manual.pdf (IVP_Cube_Coupling_Kit_User_Manual.pdf, 3,085 Kb) [Download]

IVP-Cube-Plate-Installation-Manual-V131.pdf (IVP-Cube-Plate-Installation-Manual-V131.pdf, 5,137 Kb) [Download]

Ideal-Vacuum-Cube-6x121416-Manual.pdf (Ideal-Vacuum-Cube-6x121416-Manual.pdf, 4,573 Kb) [Download]

IdealVac-Cube-Brochure-2019-v2-LG.pdf (IdealVac-Cube-Brochure-2019-v2-LG.pdf, 3,897 Kb) [Download]
