This 6 x 6” Cube coupling kit allows two Cube frames to be tightly joined face-to-face on their 6 x 6” faces without any intermediate plumbing or fittings.
Same sized Cube faces can be coupled. For example, a 6 x 6 x 6” Cube frame can be directly coupled to a 6 x 6 x 6” frame or a 6 x 6 x 12” frame, as long as they are coupled on the 6 x 6” side.

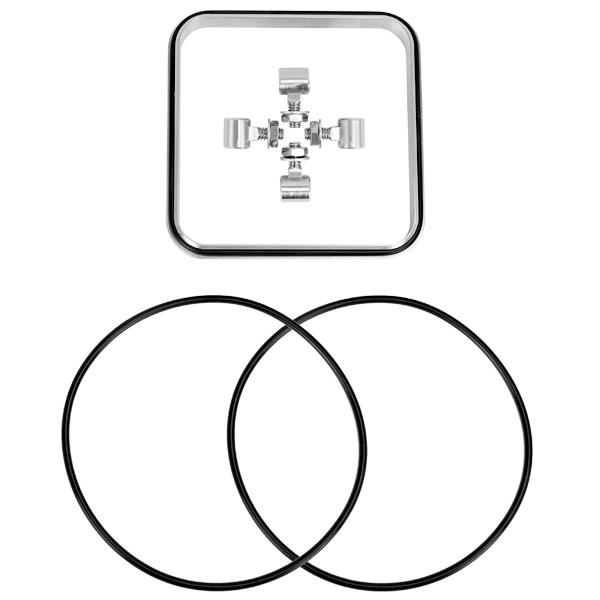

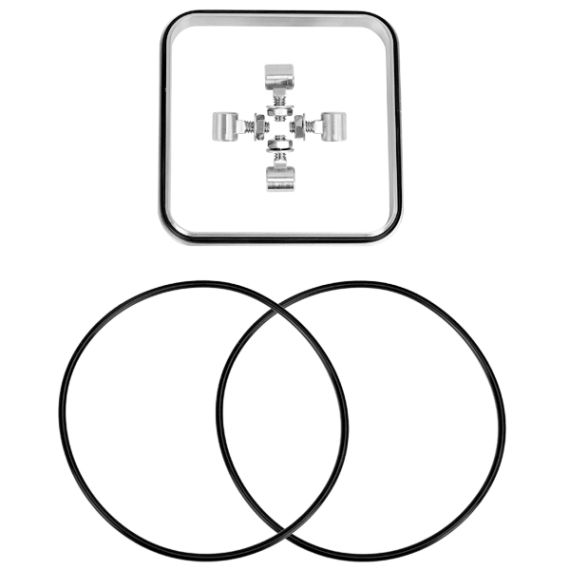

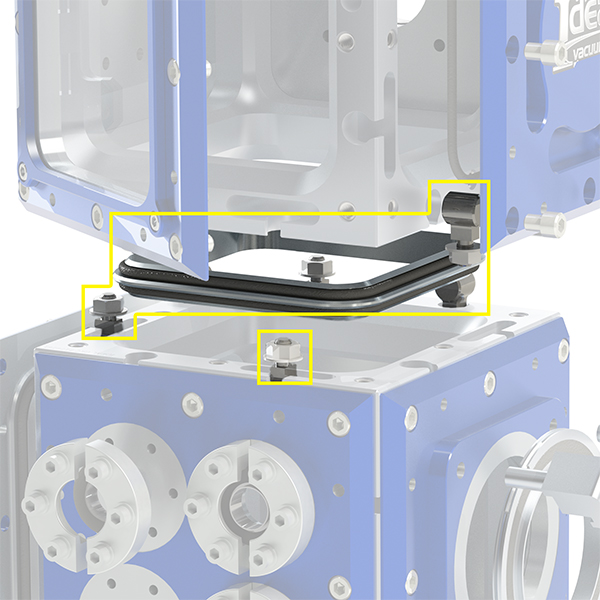

The coupling kit consists of a 6061-T6 aluminum Cube frame coupler with two O-rings, and several 304L stainless steel barrel type, coupling draw bolts. The frame coupler is sandwiched between the two Cube frames and acts just like a flange centering ring. The coupler makes the seal between the two Cube frames and uses the patented Ideal Vacuum Taper-Seal™ design. The draw bolts rigidly clamp the two Cube frames together.

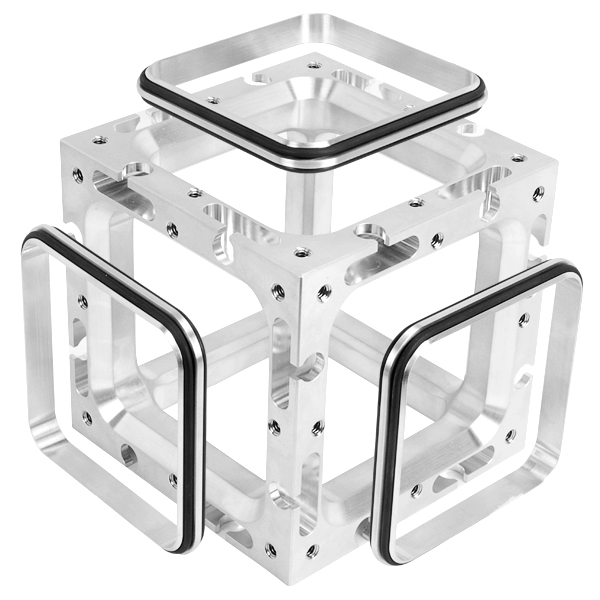

The number of chamber configurations possible with Cube coupling kits is virtually limitless. Long, odd-shaped, and multi-Cube chambers are easy to construct with this accessory.
Please download the Cube coupling kit user manual for installation instructions.
Features:
Same sized Cube faces can be coupled. For example, a 6 x 6 x 6” Cube frame can be directly coupled to a 6 x 6 x 6” frame or a 6 x 6 x 12” frame, as long as they are coupled on the 6 x 6” side.
The coupling kit consists of a 6061-T6 aluminum Cube frame coupler with two O-rings, and several 304L stainless steel barrel type, coupling draw bolts. The frame coupler is sandwiched between the two Cube frames and acts just like a flange centering ring. The coupler makes the seal between the two Cube frames and uses the patented Ideal Vacuum Taper-Seal™ design. The draw bolts rigidly clamp the two Cube frames together.
The number of chamber configurations possible with Cube coupling kits is virtually limitless. Long, odd-shaped, and multi-Cube chambers are easy to construct with this accessory.
Please download the Cube coupling kit user manual for installation instructions.
Features:
- Couples two 6" x 6" Cube faces
- No extra tubing or fittings needed
- Includes dual O-ring frame coupler
- Includes 4 draw bolts
- Mounts in any orientation
- 6 x 6 x 6
- 6 x 6 x 12
- 6 x 6 x 6 hexagon
- 6 x 6 x 12 hexagon
- 6 x 6 x 12 octagon
